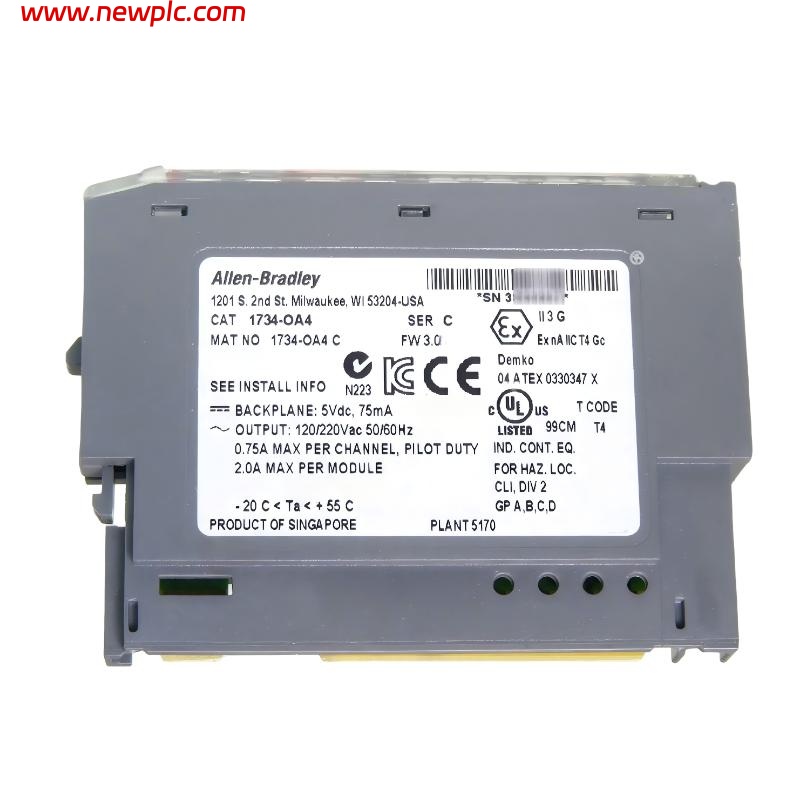

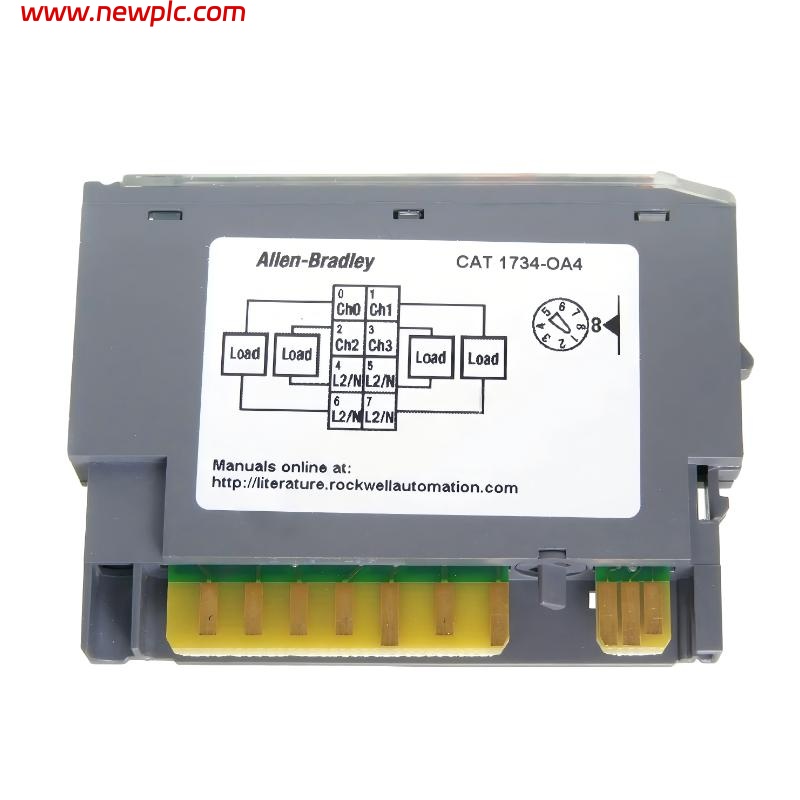

Allen Bradley 1734-OA4 Point I/O Digital AC Output Module

FAQ

Q1. What is the function of the 1734-OA4 module?
It is a 4-channel AC digital output module used to control AC loads such as relays, lamps, and contactors.

Q2. What voltage range does the module support?
It operates within 85–264 V AC, with nominal ratings of 120 V or 220 V AC.

Q3. How many outputs are available?
The module provides four independent output channels.

Q4. What is the maximum current per channel?
Each channel can handle up to 0.75 A, with a total module limit of 2 A.

Q5. Is isolation provided between outputs?
No, all outputs are non-isolated from each other.

Q6. How is the module installed?
It mounts on a DIN rail and requires a compatible POINT I/O terminal base.

Q7. What are the physical dimensions of the module?
The size is approximately 56.0 × 12.0 × 75.5 mm.

Q8. What environments is it suitable for?
It is designed for standard industrial environments with temperatures from −20 °C to 55 °C and non-condensing humidity.
