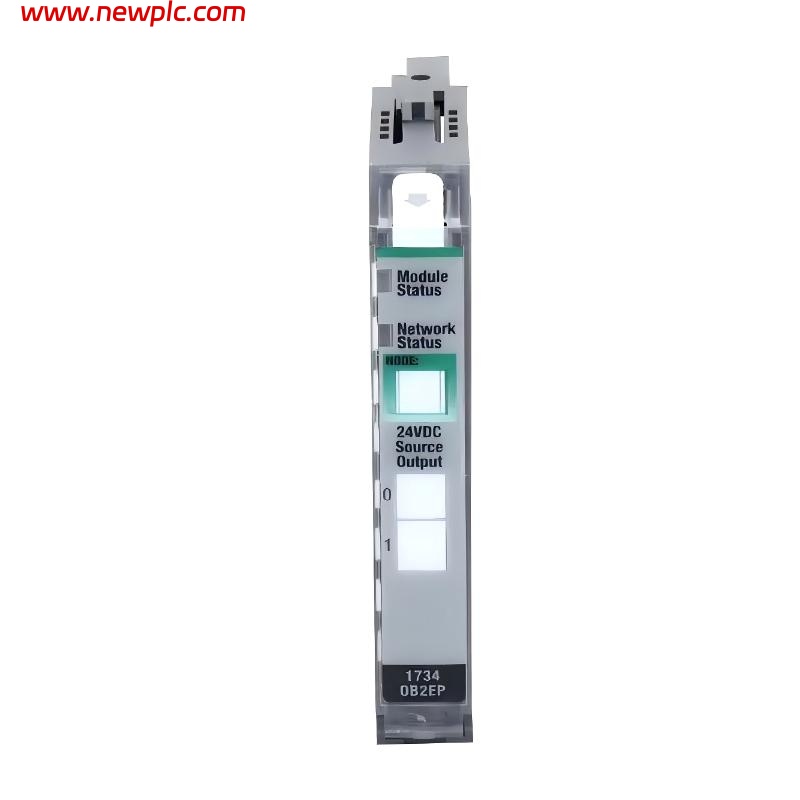

Allen Bradley 1734-OB2EP Point I/O Digital DC Output Module

FAQ

Q1. What makes the 1734-OB2EP different from standard OB2?
It includes built-in electronic protection such as overload and short-circuit protection on each output channel.

Q2. What type of outputs does this module provide?
It provides two DC sourcing (PNP) outputs for 24 V DC field devices.

Q3. What is the maximum current per channel?
Each output can supply up to 1.0 A.

Q4. What happens during a short circuit?
The module automatically limits or shuts down the affected channel to protect itself and connected devices.

Q5. What voltage range is supported?
It operates within 10–28.8 V DC, with 24 V DC as the nominal value.

Q6. How is the module installed?
It mounts on a DIN rail and requires a compatible POINT I/O terminal base.

Q7. What are the physical dimensions?
The module size is approximately 56.0 × 12.0 × 75.5 mm.

Q8. Is it suitable for industrial environments?
Yes, it is designed for standard industrial conditions with −20 °C to 55 °C operating temperature and non-condensing humidity.

1734-OB2EP Allen Bradley
