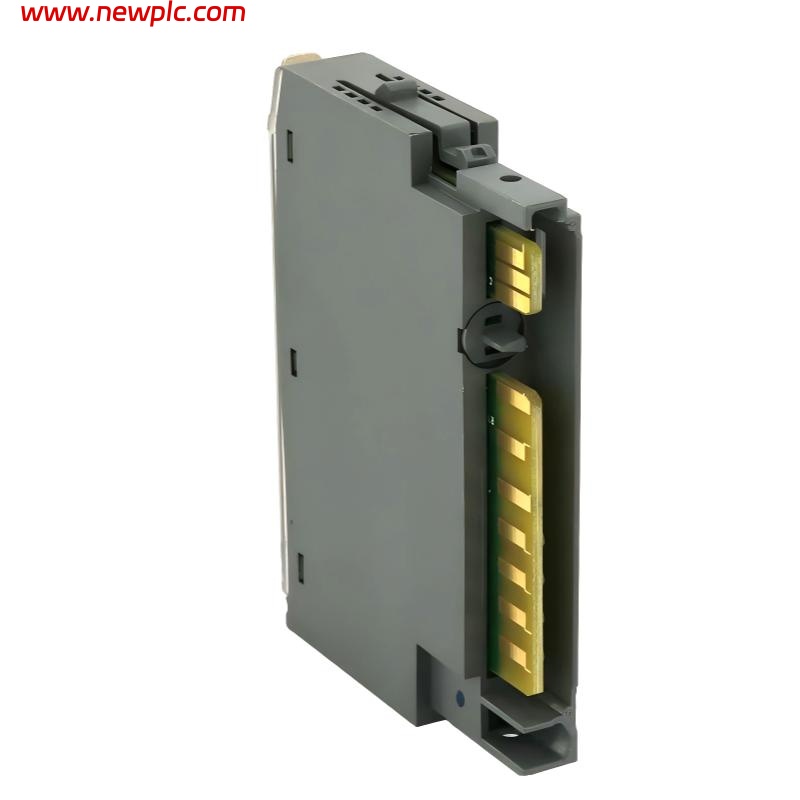

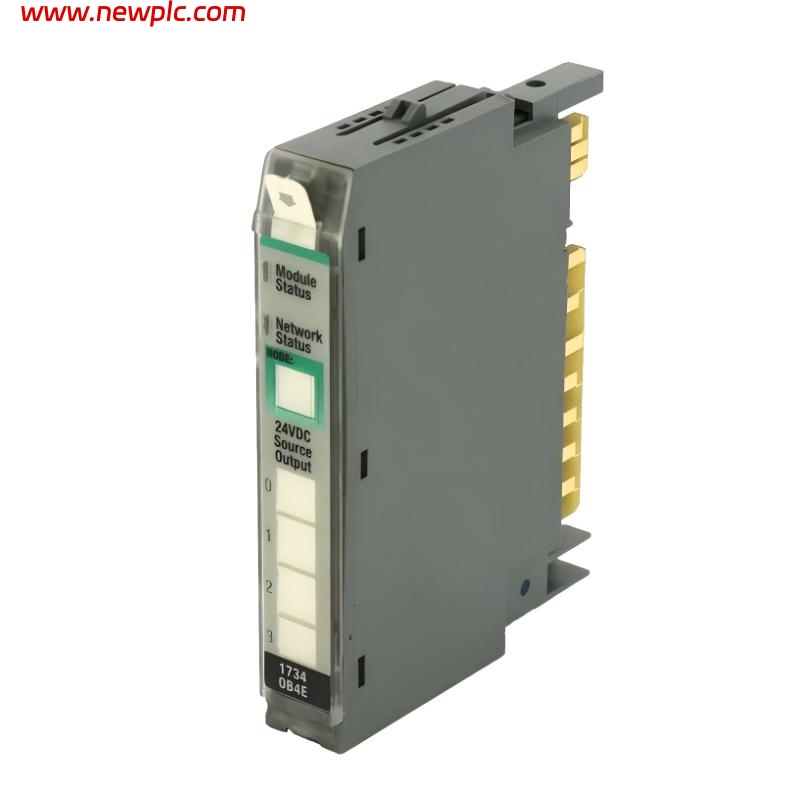

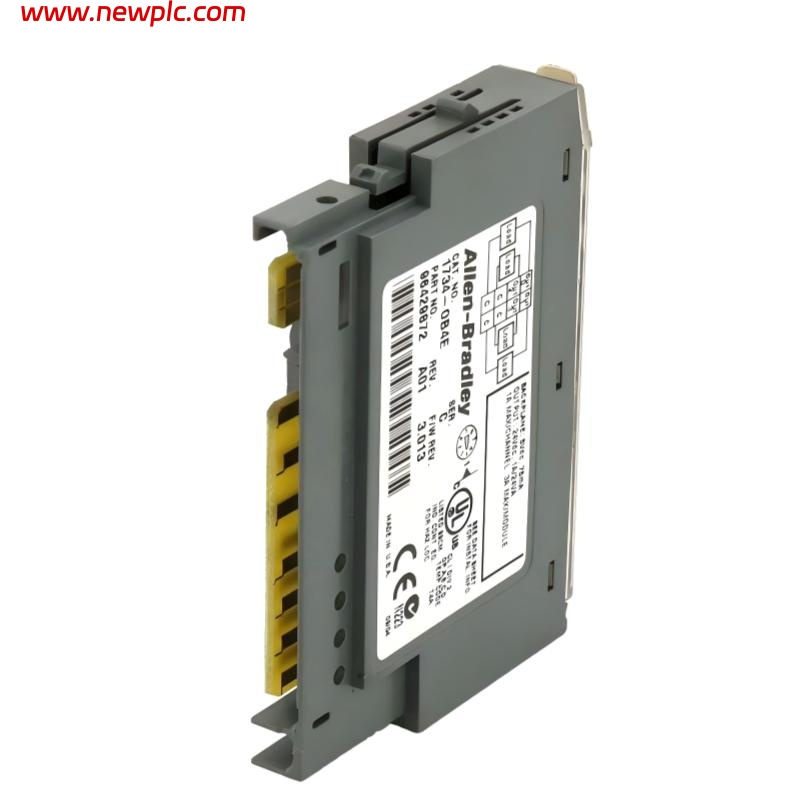

Allen Bradley 1734-OB4E Point I/O Digital DC Output Module

FAQ

Q1. What is the 1734-OB4E used for?
It is a 4-channel DC output module designed to control 24 V DC devices with built-in electronic protection.

Q2. What type of outputs does this module provide?
It provides sourcing (PNP) digital DC outputs with protection features.

Q3. What is the maximum current per channel?
Each output can handle up to 0.5 A, with a total module limit of 2.0 A.

Q4. What protection features are included?
Each channel includes short-circuit, overload, and thermal protection.

Q5. What voltage range does it support?
It operates at 24 V DC nominal, within a range of 10–28.8 V DC.

Q6. How is the module installed?
It mounts on a DIN rail and requires a compatible POINT I/O terminal base.

Q7. What are the physical dimensions?
The module size is approximately 56.0 × 12.0 × 75.5 mm.

Q8. Is it suitable for industrial environments?
Yes, it is designed for standard industrial conditions with −20 °C to 55 °C operating temperature and non-condensing humidity.
