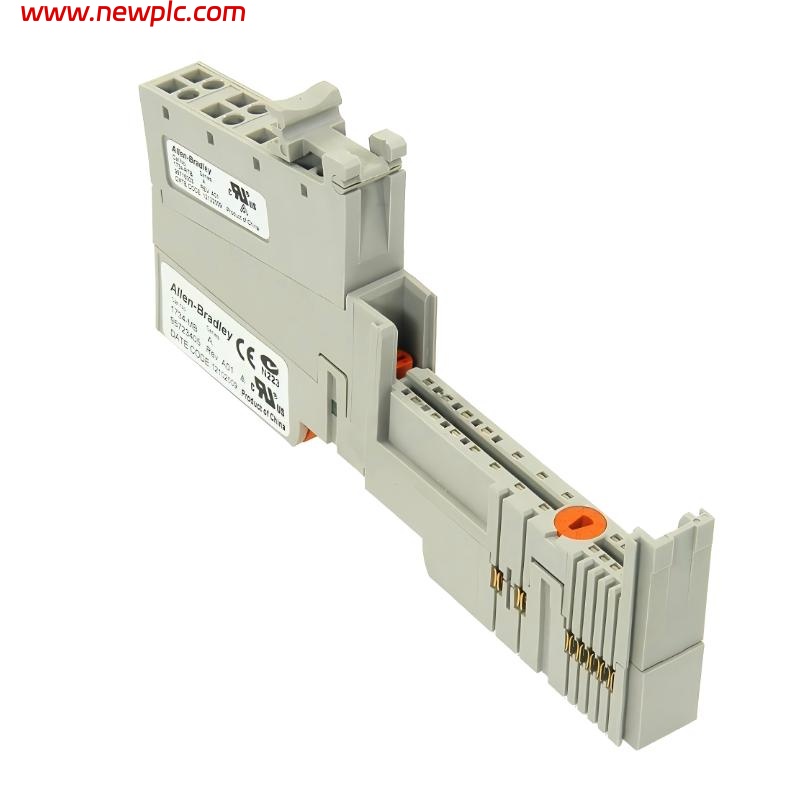

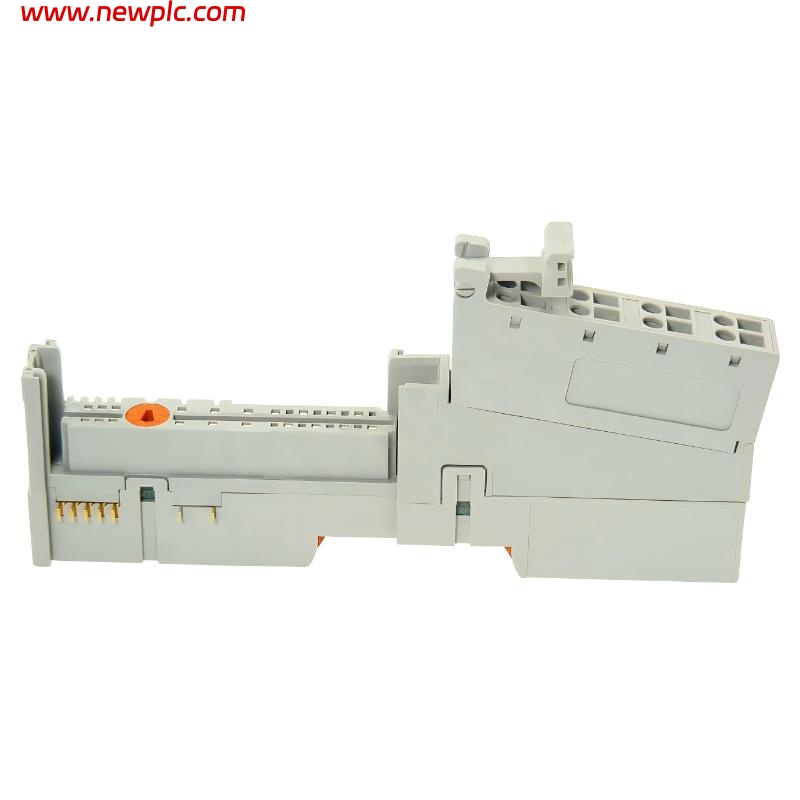

Allen Bradley 1734-TB POINT I/O Terminal Base Assembly

FAQ

Q1. What is the 1734-TB used for?
It serves as the mounting base and wiring interface for POINT I/O modules, enabling both signal and power distribution.

Q2. How many terminals are available?
It provides 8 screw-clamp terminals for field wiring connections.

Q3. What type of wiring does it support?
It supports 22–14 AWG copper wires, either solid or stranded.

Q4. Does the terminal base provide power distribution?
Yes, it distributes both POINTBus communication and field power to connected modules.

Q5. What is the maximum current capacity?
The field power bus can handle up to 10 A.

Q6. How is the module installed?
It mounts directly onto a DIN rail and allows modules to snap into place.

Q7. What are the physical dimensions?
The approximate size is 133.4 × 12.0 × 65.0 mm.

Q8. Can it be used in industrial environments?
Yes, it is designed for industrial applications with −20 °C to +55 °C operating temperature and non-condensing humidity.
