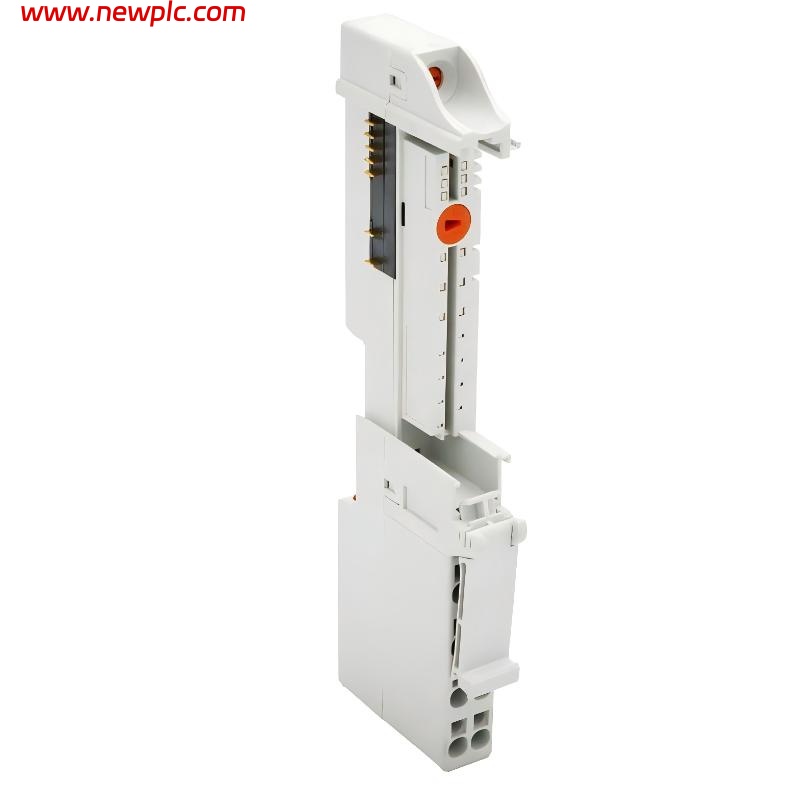

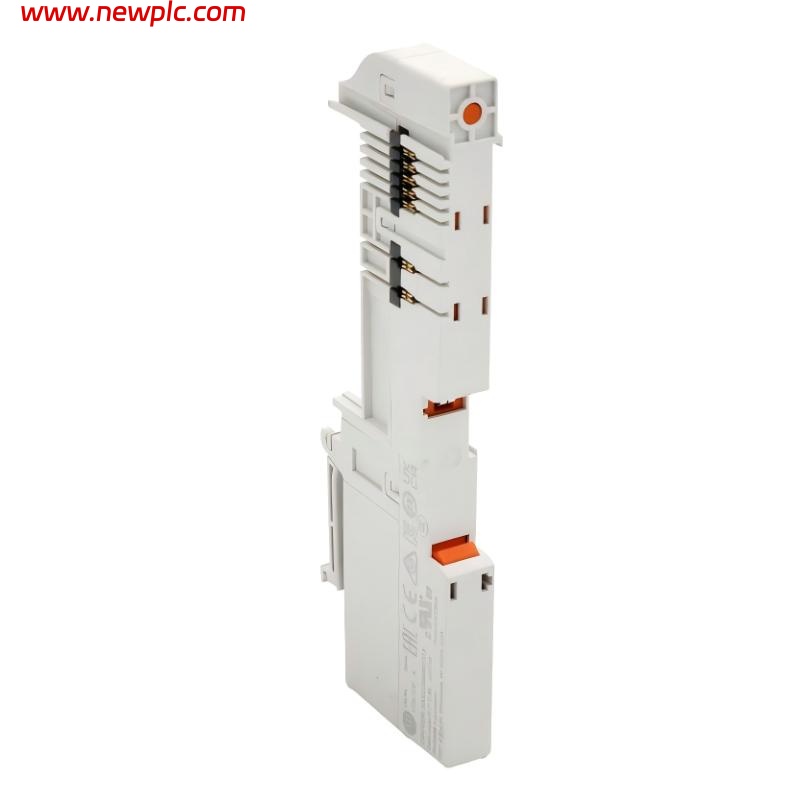

Allen Bradley 1734-TOP POINT I/O Terminal Base

FAQ

Q1. What is the 1734-TOP used for?
It serves as a terminal base for POINT I/O modules, providing wiring connections and mechanical mounting.

Q2. How many terminals are available?
It includes 8 screw-clamp terminals for field wiring.

Q3. What type of wiring does it support?
It supports 22–14 AWG copper wiring for industrial applications.

Q4. Does it distribute power and communication?
Yes, it distributes both field power and POINTBus backplane communication.

Q5. What is the maximum current capacity?
The terminal base supports up to 8 A on the field power bus.

Q6. How is it installed?
It mounts directly onto a DIN rail and allows modules to snap into place without tools.

Q7. What are the physical dimensions?
The size is approximately 49.0 × 12.0 × 144.0 mm.

Q8. What environment is it suitable for?
It is designed for industrial environments with −20 °C to +55 °C operating temperature and non-condensing humidity.

1734-TOP Allen Bradley
