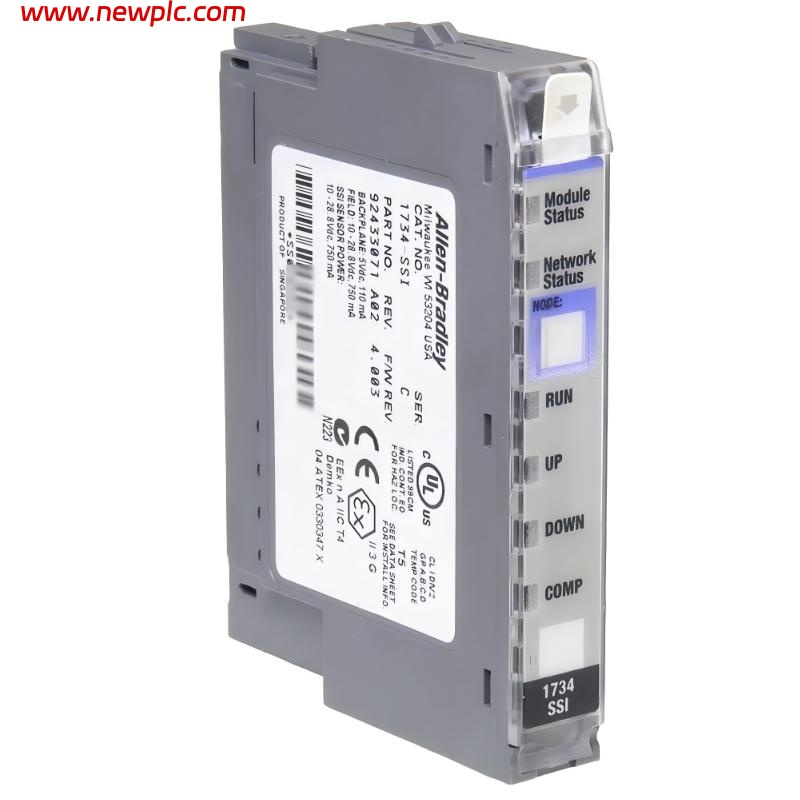

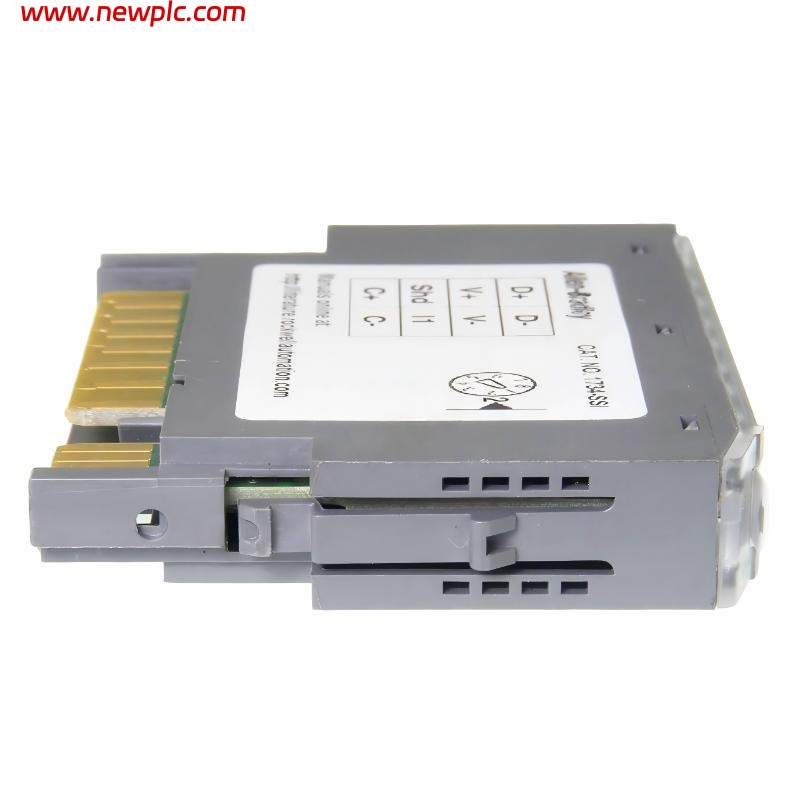

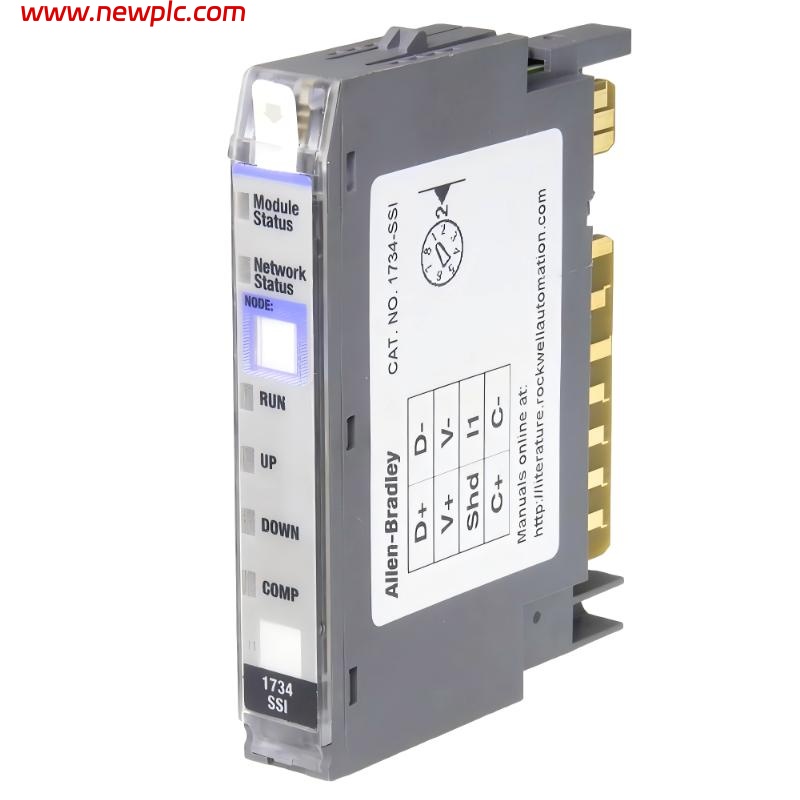

Allen Bradley 1734SC-IF4U POINT I/O SSI Encoder Module

FAQ

Q1. What is the 1734-SSI module used for?
It is used to interface with absolute encoders and read position data via the SSI protocol.

Q2. How many encoder channels does it support?
It supports one SSI encoder channel.

Q3. What type of encoders are compatible?
Any absolute encoder using standard SSI protocol, including rotary and linear types.

Q4. What communication interface does it use?
It uses an RS-422 interface for clock and data transmission.

Q5. What SSI data rates are available?
Selectable rates include 125 kHz up to 2 MHz depending on application requirements.

Q6. What is the typical positioning update time?
The module can process position data in approximately 0.5 ms.

Q7. What are the physical dimensions?
The module measures approximately 56.0 × 12.0 × 75.5 mm.

Q8. What environment is it suitable for?
It is designed for industrial environments with −20 °C to +55 °C operating temperature and non-condensing humidity.
