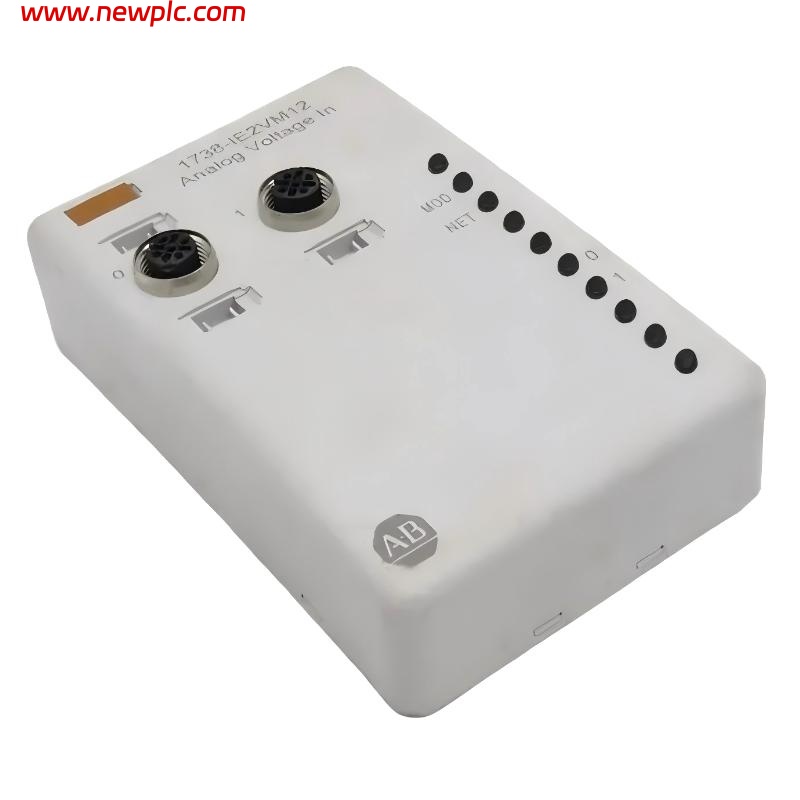

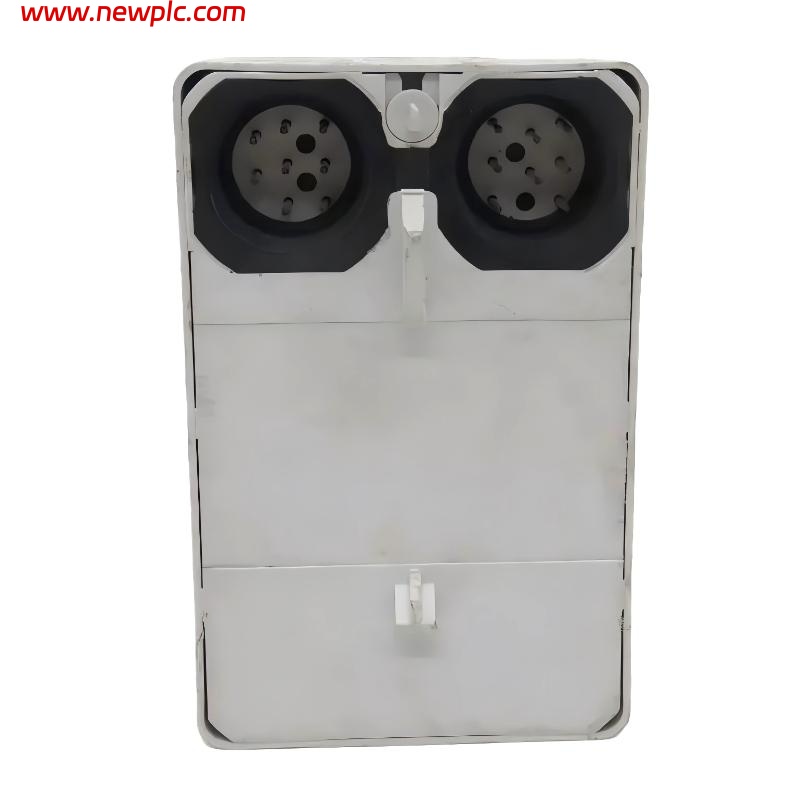

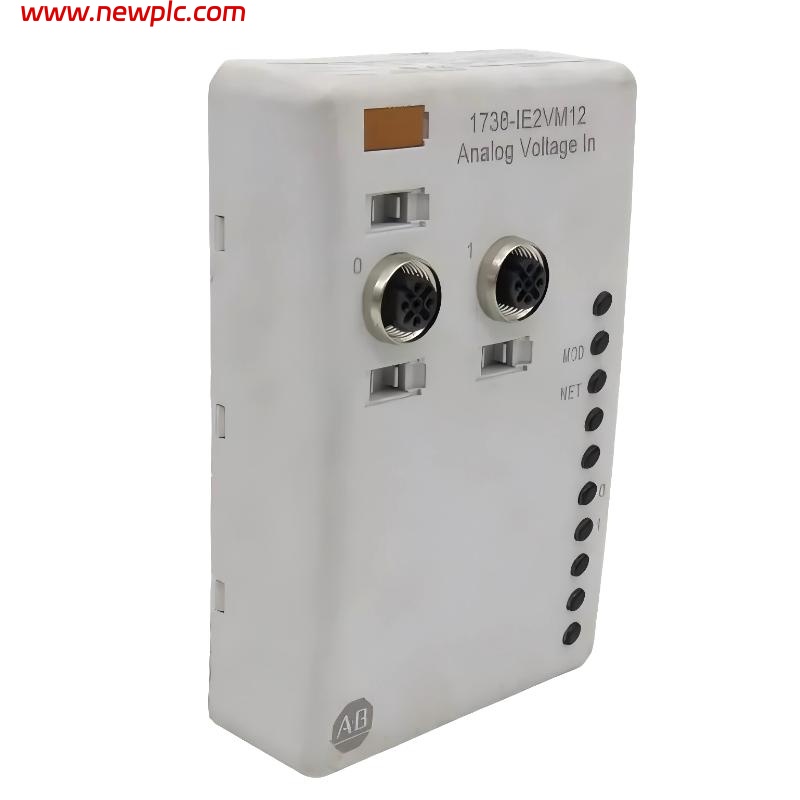

Allen Bradley 1738-IE2VM12 ArmorPOINT Analog Voltage Input Module

FAQ

Q1: What is the primary function of the 1738-IE2VM12 module?
The module provides two analog voltage input channels for ArmorPOINT distributed I/O systems.

Q2: What voltage input ranges are supported?
It supports 0…10V and ±10V analog voltage input ranges.

Q3: How many analog inputs are available?
The module includes 2 single-ended analog voltage input channels.

Q4: What connector type is used on the module?
The unit uses M12 DC Micro quick-disconnect connectors.

Q5: Is the 1738-IE2VM12 suitable for harsh industrial environments?
Yes, it features IP65/IP66/IP67/IP69K protection ratings for on-machine applications.

Q6: What operating voltage is required?
The module operates on a 24V DC power supply.

Q7: What are the dimensions and weight of the unit?
The dimensions are 120 × 72 × 42 mm, and the weight is approximately 0.20 kg.

Q8: Is the 1738-IE2VM12 still available?
No, Rockwell Automation announced that the product was discontinued as of December 31, 2025.

1738-IE2VM12 Allen Bradley
