Technical Specifications
| Parameter | Specification |
|---|---|

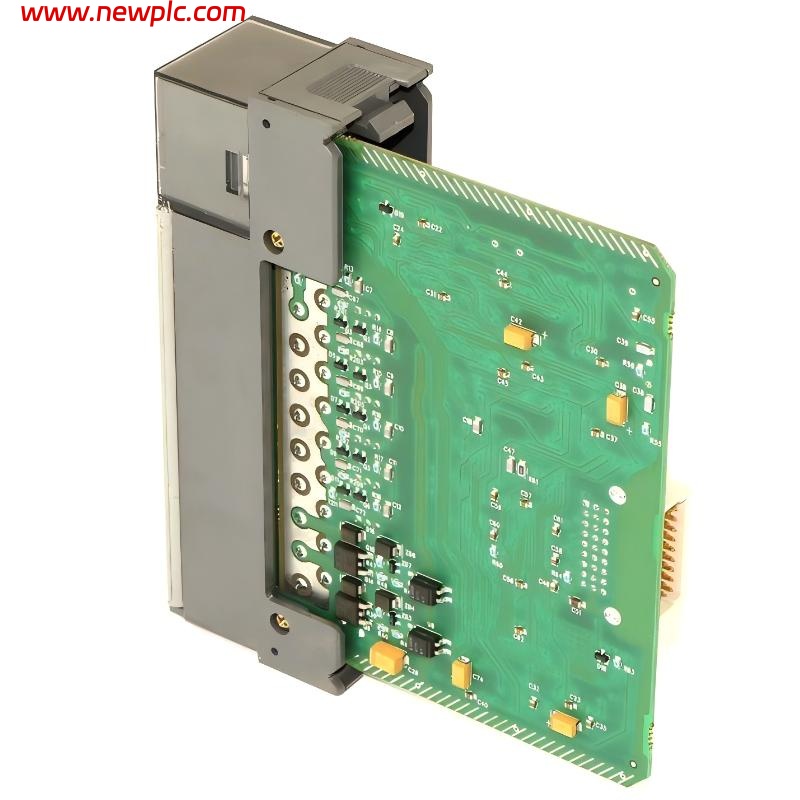

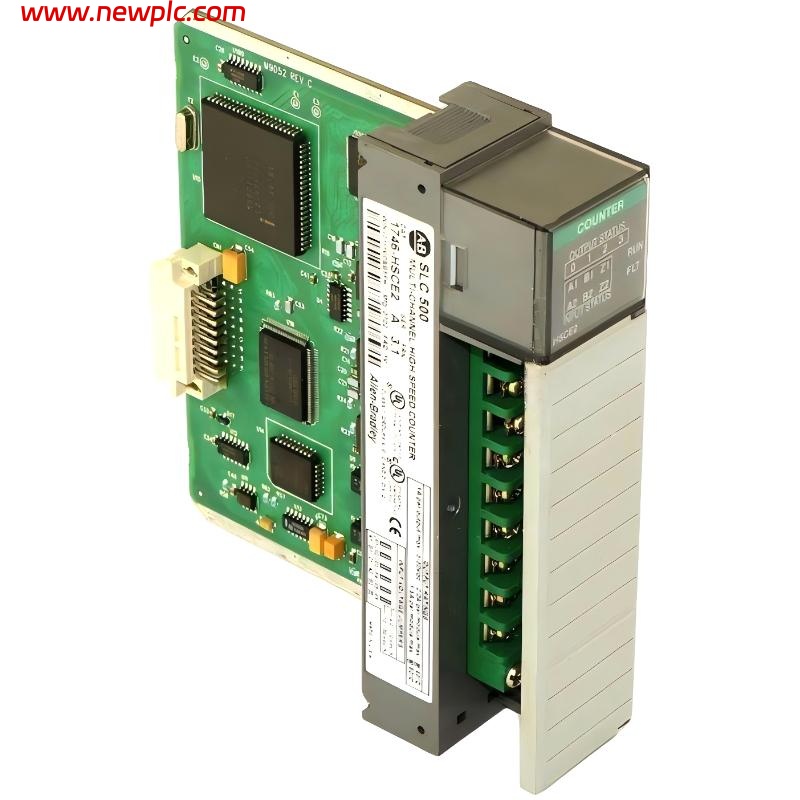

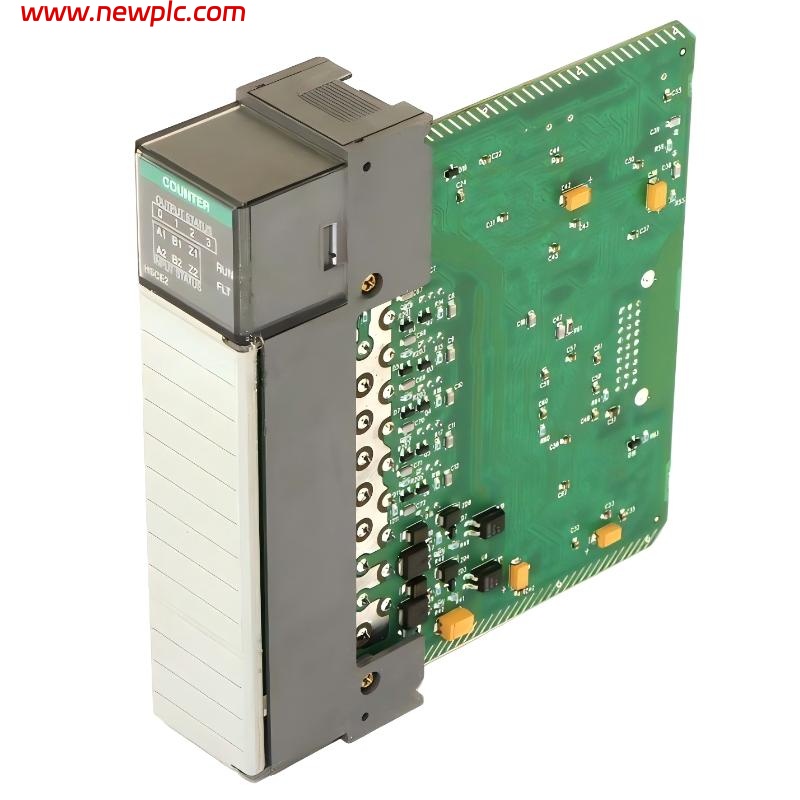

| Model | Allen-Bradley 1746-HSCE2/A |
| Product Type | Multi-Channel High-Speed Counter Module |
| Series | SLC 500 |
| Number of Inputs | 4 Single-Ended or 2 Differential Quadrature Inputs |
| Input Voltage | 5V DC, 24V DC |
| Operating Voltage Range | 4.2–12V DC, 10–30V DC |
| Maximum Input Frequency | 1 MHz |
| Output Type | 4 Solid-State Sourcing Outputs |
| Output Voltage Range | 5–30V DC |
| Maximum Output Current | 1 A per Point |
| Counting Modes | Linear Counter, Ring Counter, Rate Calculation |
| Backplane Current | 250 mA @ 5V DC |
| Isolation Voltage | 1000V |
| Update Time | 1.5 ms Maximum |
| Mounting Type | SLC 500 Chassis Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | 0.32 kg |
| Certifications | UL, CE, CSA |
FAQ
FAQ
Q1: What is the primary function of the 1746-HSCE2/A module?
The module is designed for high-speed counting, encoder feedback, totalizing, and positioning applications.
Q2: What input configurations are supported?
It supports 4 single-ended inputs or 2 differential quadrature encoder inputs.
Q3: What is the maximum counting frequency of the module?
The module supports counting frequencies up to 1 MHz.
Q4: What type of outputs are included?
The unit includes 4 electronically protected solid-state sourcing outputs.
Q5: Which controllers are compatible with the 1746-HSCE2/A?
The module is compatible with Allen-Bradley SLC 500 processors, including SLC 5/01 through SLC 5/05 systems.
Q6: What counting modes are available?
The module supports linear counting, ring counting, and rate calculation functions.
Q7: What are the dimensions and weight of the unit?
The dimensions are 145 × 35 × 140 mm, and the weight is approximately 0.32 kg.
Q8: Is the 1746-HSCE2/A still available?
No, Rockwell Automation discontinued the product on September 30, 2024.
