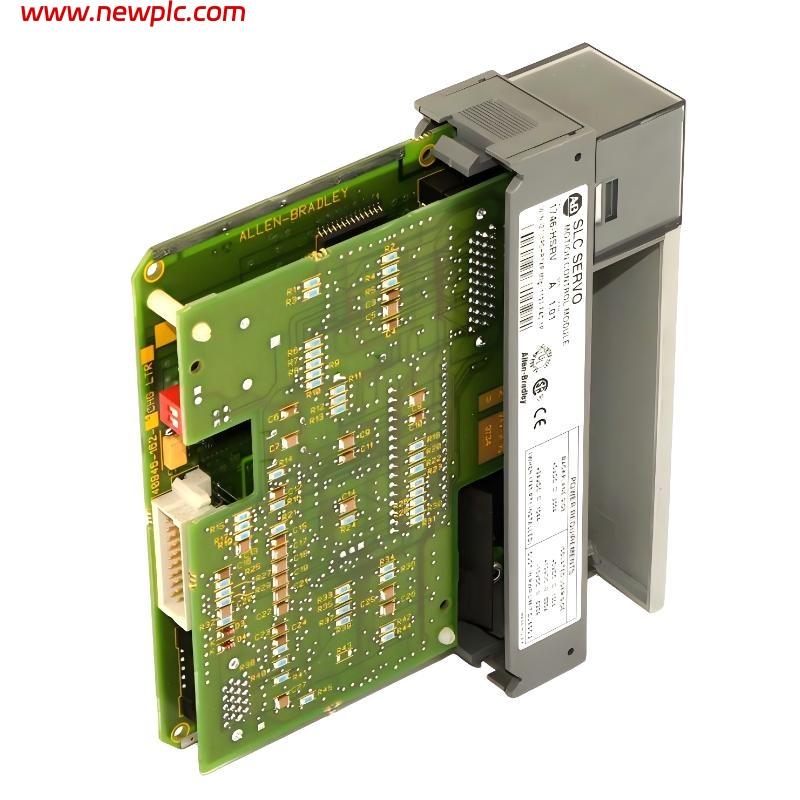

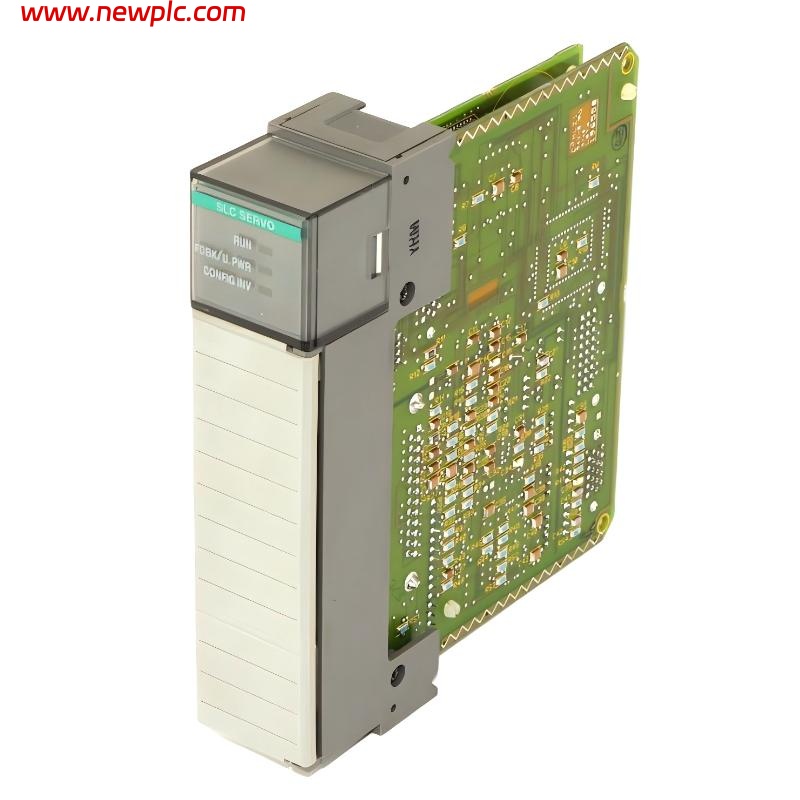

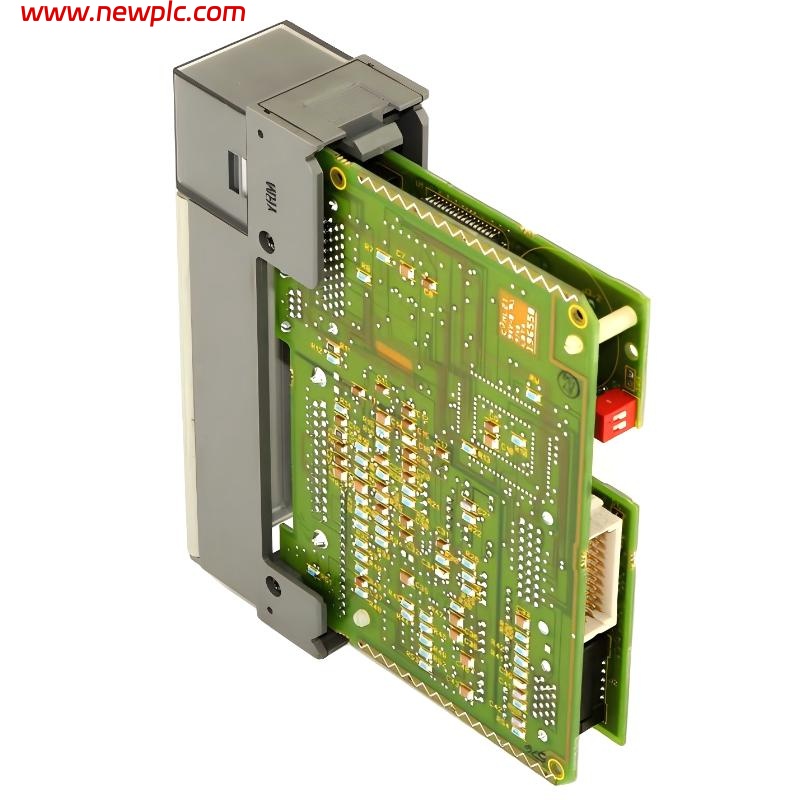

Allen Bradley 1746-HSRV SLC 500 Servo Control Module

FAQ

Q1: What is the 1746‑HSRV used for?
It is a single‑axis closed‑loop servo control module for SLC 500 systems.

Q2: Which PLC processors is it compatible with?
It works with SLC 5/03, SLC 5/04, and SLC 5/05 processors.

Q3: How many inputs and outputs does this module have?
It has three inputs and one output, all at 24 V DC.

Q4: What is the maximum input frequency?
It supports up to 300 kHz input frequency for encoder feedback.

Q5: What are the physical dimensions and weight?
Approximate size is 130 mm × 145 mm × 35 mm and weight is ~0.22 kg.

Q6: What command modes are supported?
It supports multiple motion command modes including absolute, incremental, speed, and homing.

Q7: What is the recommended installation position?
Install it as close as possible to the SLC processor to ensure proper operation.

Q8: Is the 1746‑HSRV still manufactured?
No, it is part of the discontinued SLC 500 product family.
