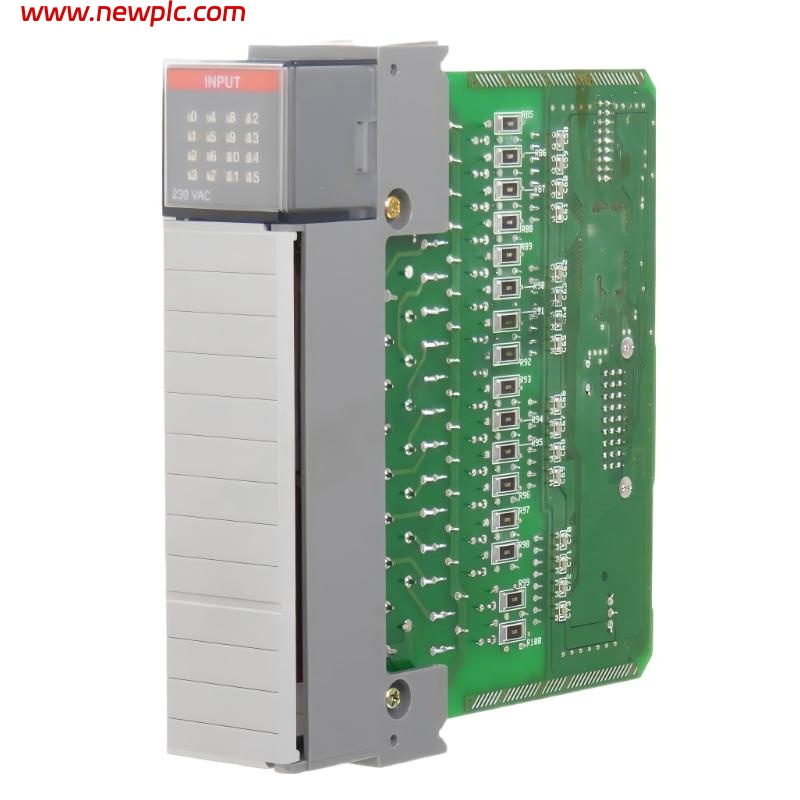

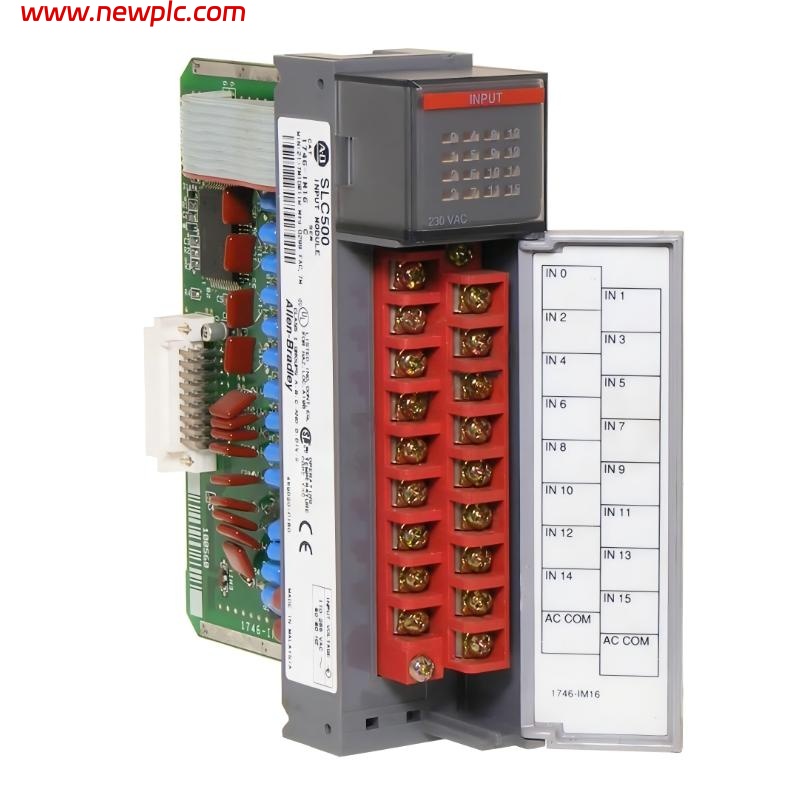

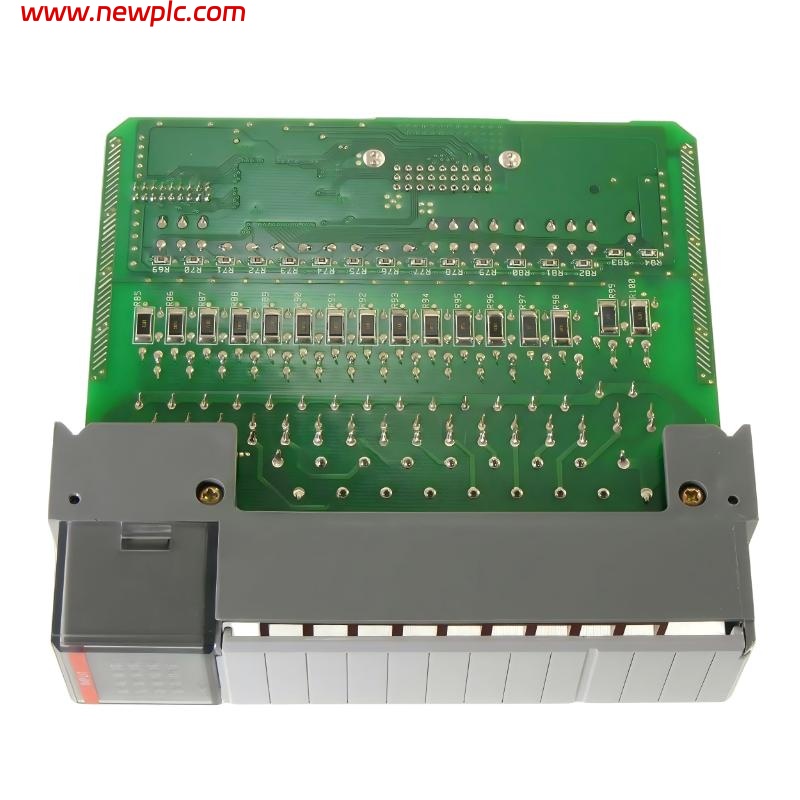

Allen Bradley 1746-IM16 SLC 500 16-Channel AC Digital Input Module

FAQ

Q1: What is the 1746-IM16 module used for?
It is a 16-point AC digital input module designed for SLC 500 PLC systems.

Q2: What voltage range does it support?
It supports 170 – 265 V AC input signals, typically used with 200/240 V AC systems.

Q3: How many inputs does this module provide?
The module offers 16 AC input channels in a single group.

Q4: What is the typical input response time?
The ON delay is about 35 ms and OFF delay is about 45 ms.

Q5: What are the physical dimensions and weight?
Approximate size is 127 mm × 51 mm × 152 mm and weight is about 0.45 kg.

Q6: What type of wiring connection is used?
It uses a removable 1746-HT terminal block with a 1746-HCA cable.

Q7: What environmental conditions can it operate in?
It operates between 0 °C and 60 °C with 5–95% non-condensing humidity.

Q8: Is the 1746-IM16 still in production?
No, it has been discontinued and is considered a legacy SLC 500 module.
