Manufacturer：Allen Bradley
Product Number：1746-ITB16

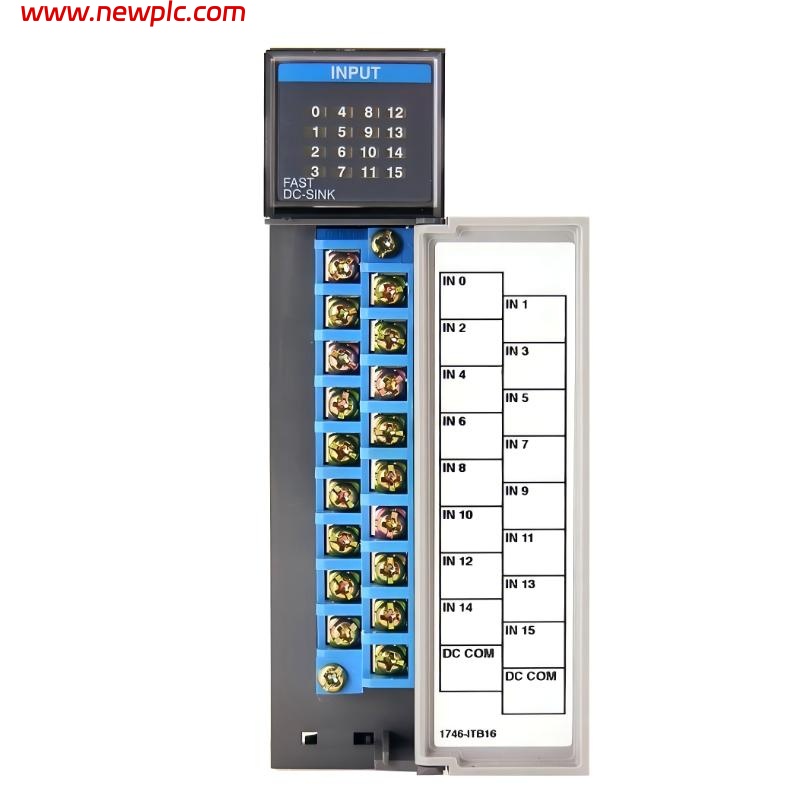

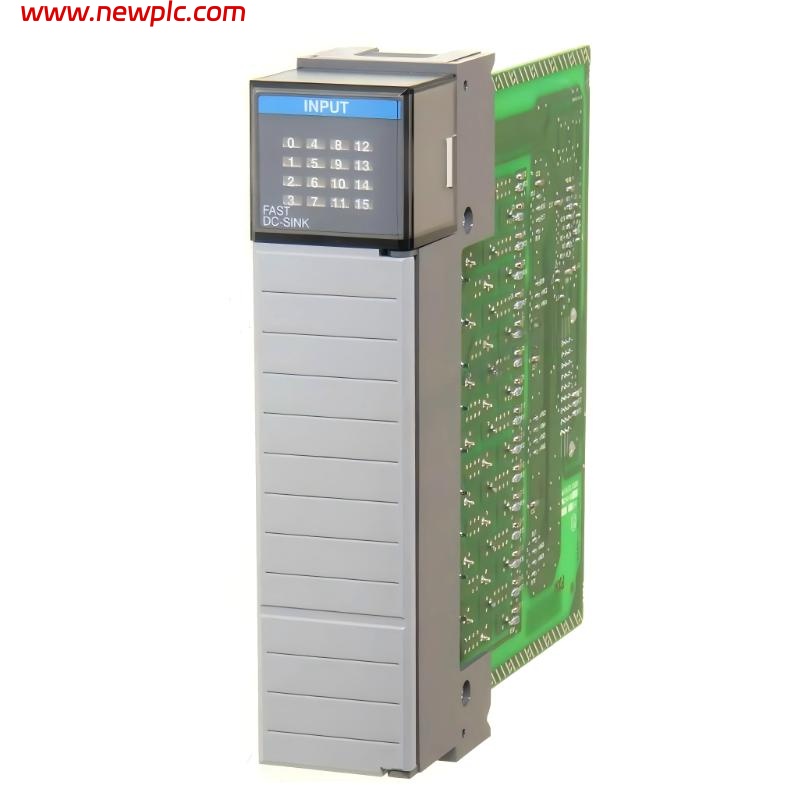

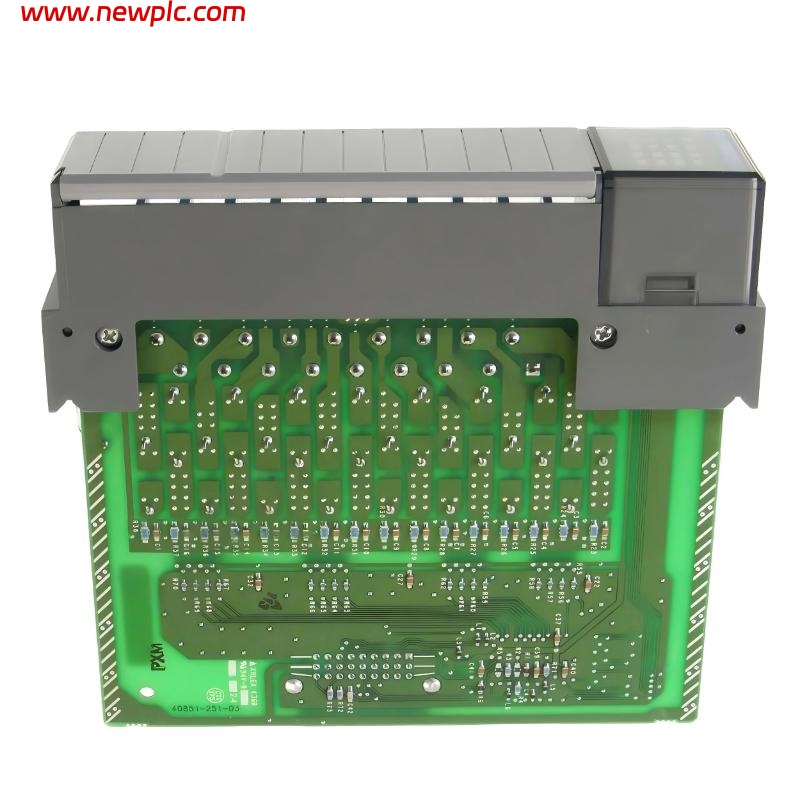

Product Type：SLC 500 16‑Channel Fast‑Response DC Sinking Input Module
Origin：USA
Dimensions：60 mm × 167 mm × ~38 mm
Weight ：0.37 kg
FAQ
FAQ
Q1: What is the 1746‑ITB16 module used for?
It is a fast‑response 16‑channel sinking DC digital input module for SLC 500 PLC systems.
Q2: What voltage range does it support?
It operates on 10–30 V DC with a nominal 24 V DC rating.
Q3: How many discrete inputs does the 1746‑ITB16 have?
The module has 16 digital input channels.
Q4: What is the typical input current per channel?
Each channel draws about 8 mA at 24 V DC.
Q5: What are the physical dimensions and weight?
Approximate size is 60 mm × 167 mm × 38 mm and weight ~0.37 kg.
Q6: What is the signal response time?
Typical signal ON delay is ~0.3 ms and OFF delay ~0.5 ms.
Q7: What environmental conditions can it operate in?
It operates between 0 °C and 60 °C with 5–95 % non‑condensing humidity.
Q8: Is the 1746‑ITB16 still in production?
No, it has been discontinued as of September 30, 2024.
