Technical Specifications
| Parameter | Specification |
|---|---|

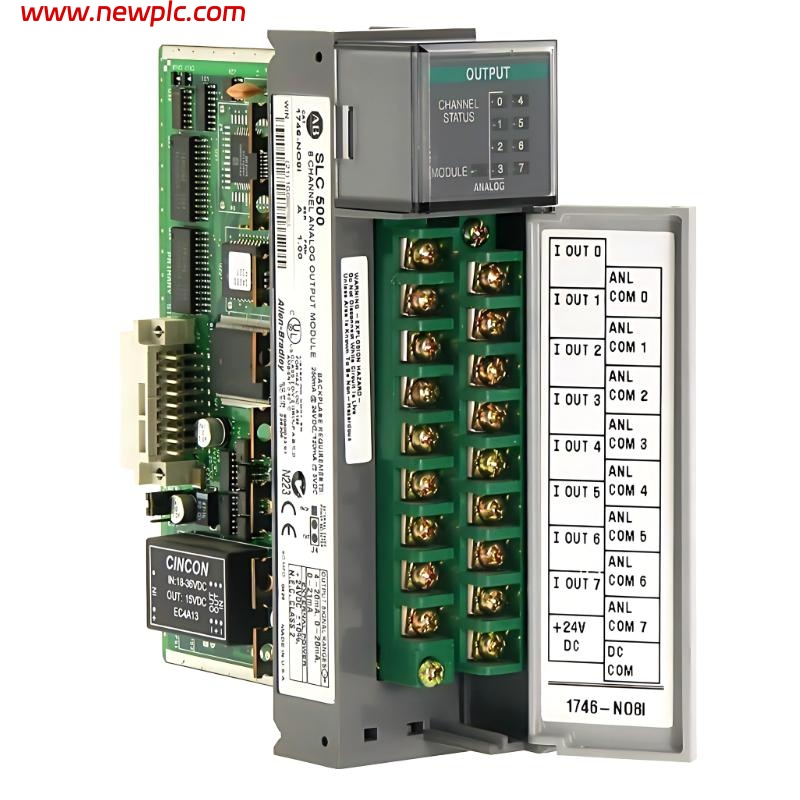

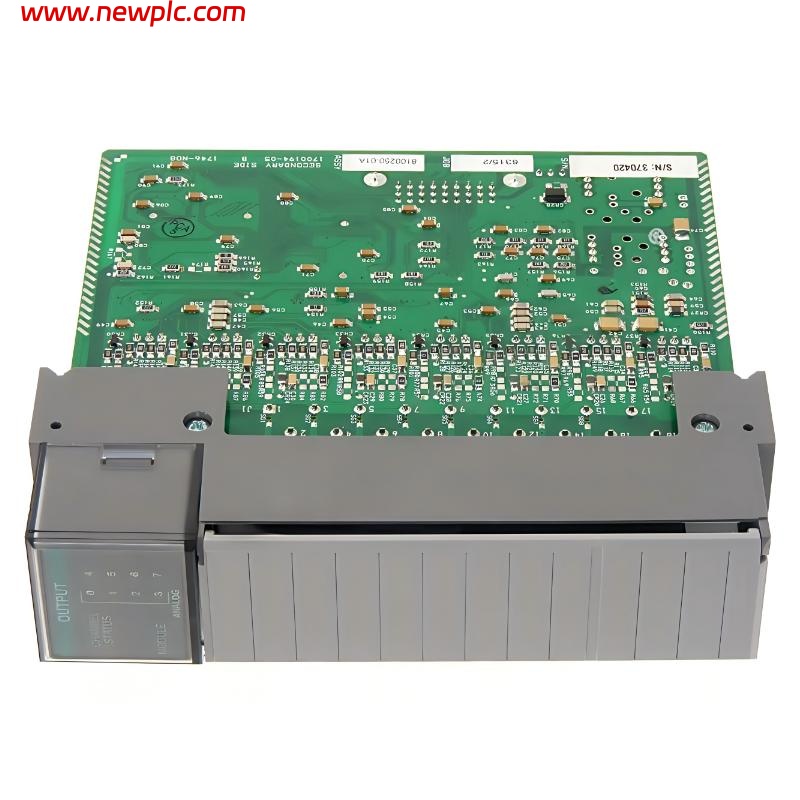

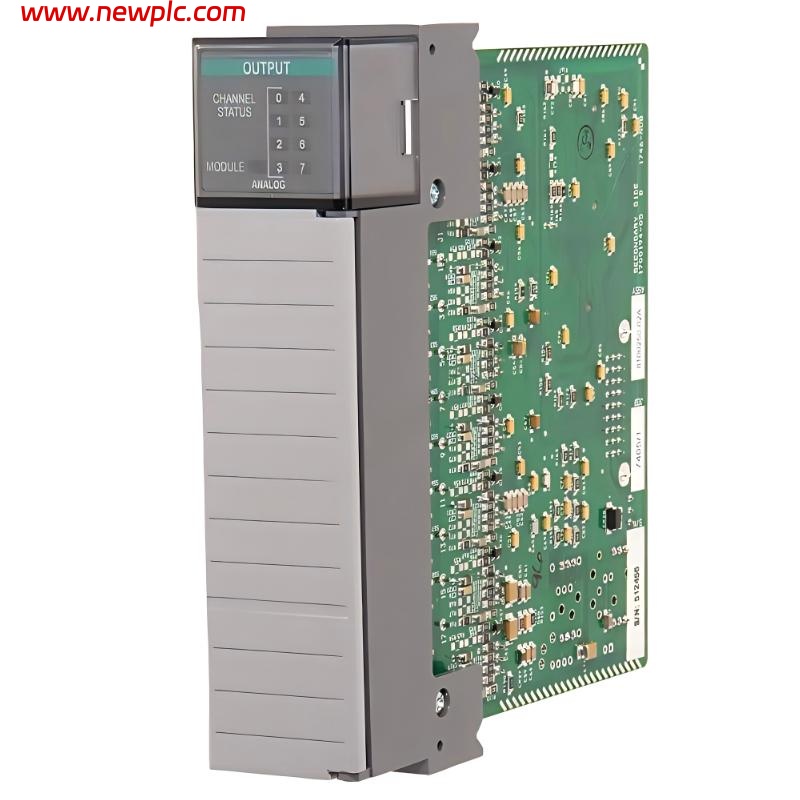

| Model | Allen-Bradley 1746-NO8I |
| Product Type | Analog Current Output Module |
| Series | SLC 500 |
| Number of Outputs | 8 Analog Outputs |
| Output Signal Type | Current |
| Output Ranges | 0–20 mA, 4–20 mA, 0–21 mA, 0–21.5 mA |
| Resolution | 16-bit |
| Update Time | 5 ms Typical |
| Step Response | 1 ms |
| Backplane Current | 120 mA @ 5V DC, 250 mA @ 24V DC |
| Isolation Voltage | 500V DC |
| Thermal Dissipation | 6.6 W |
| Wiring | 14–24 AWG |
| Mounting Type | SLC 500 Ch |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | 0.28 kg |
| Certifications | UL, CE, CSA |
FAQ
FAQ
Q1: What is the primary function of the 1746-NO8I module?
The module provides 8 analog current output channels for SLC 500 automation systems.
Q2: What output signal ranges are supported?
It supports 0–20 mA, 4–20 mA, 0–21 mA, and 0–21.5 mA output ranges.
Q3: How many analog output channels are included?
The module includes 8 single-ended analog current output channels.
Q4: What is the resolution of the module?
The module features 16-bit output resolution for precise analog signal control.
Q5: Which controllers are compatible with the 1746-NO8I?
The module is compatible with Allen-Bradley SLC 500 chassis-based controllers.
Q6: Does the module provide electrical isolation?
Yes, it offers 500V DC isolation between field wiring and the backplane.
Q7: What are the dimensions and weight of the unit?
The dimensions are 145 × 35 × 140 mm, and the weight is approximately 0.28 kg.
Q8: Is the 1746-NO8I still available?
No, Rockwell Automation discontinued the product on September 30, 2024.
