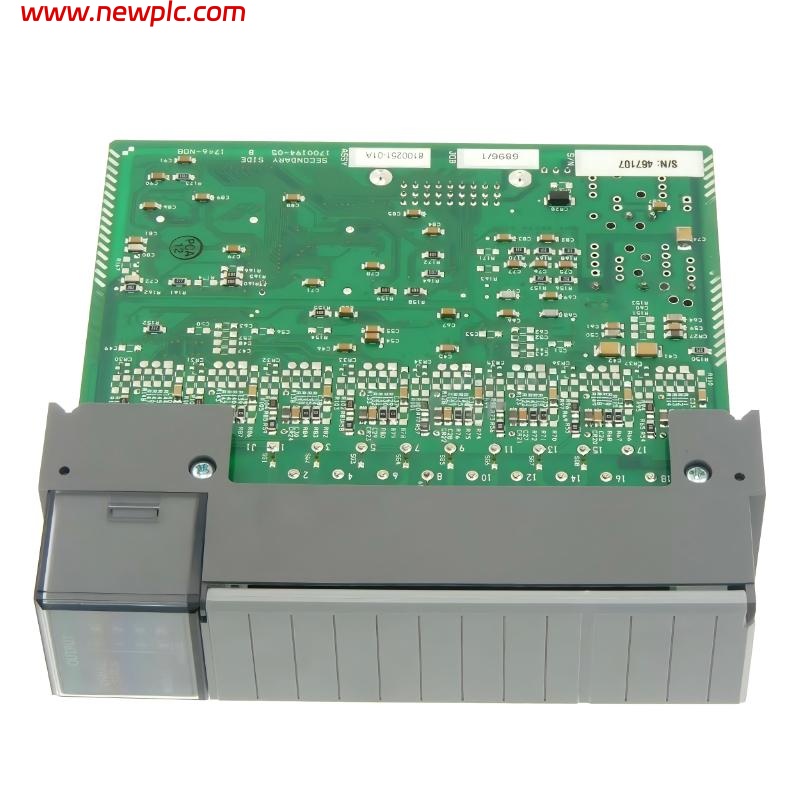

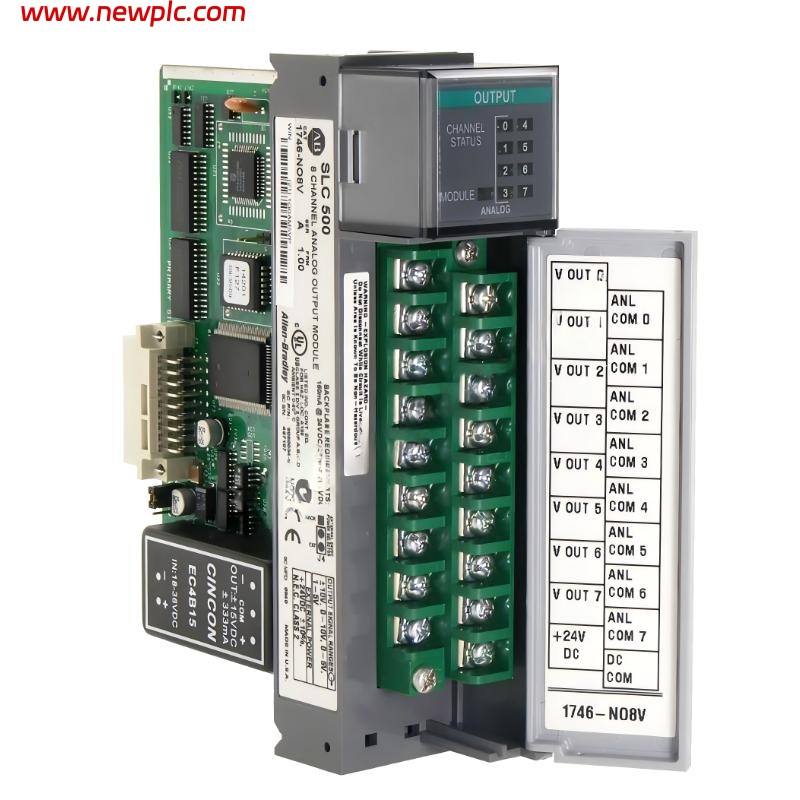

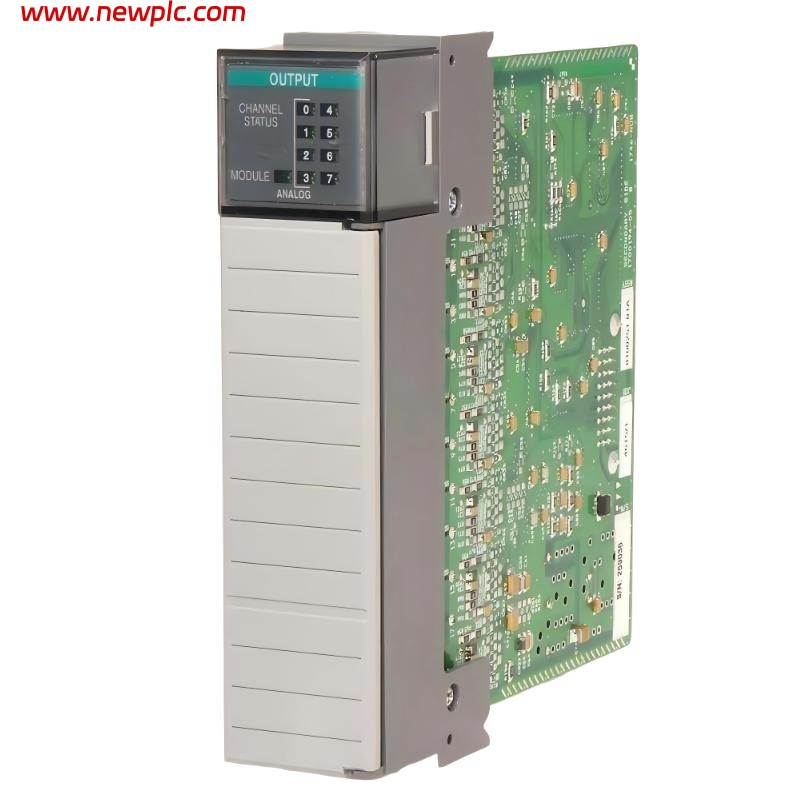

Allen Bradley 1746-NO8V SLC 500 8‑Channel Analog Voltage Output Mod

FAQ

Q1: What is the 1746‑NO8V module used for?
It is an 8‑channel analog voltage output module for the Allen‑Bradley SLC 500 PLC series.

Q2: How many analog outputs does it provide?
It provides 8 independent analog voltage output channels.

Q3: What voltage ranges can each output produce?
Outputs can be configured for ±10 V to ±10.25 V DC or other ranges such as 0–10 V, 0–5 V, and 1–5 V DC.

Q4: What is the resolution of the outputs?
The module features 16‑bit resolution, giving about 320 µV per count.

Q5: What is the typical update and response time?
Typical update time for all outputs is about 5 ms, and step response is approximately 1 ms.

Q6: What are the physical dimensions and weight?
Approximate size is 58 mm × 168 mm × 247 mm with a weight of about 0.41 kg.

Q7: What environmental conditions can it operate in?
It operates between 0 °C and 60 °C with 5 % to 95 % non‑condensing humidity.

Q8: Is the 1746‑NO8V still manufactured?
No, it is discontinued as of September 30, 2024, and is part of the legacy SLC 500 product line.
