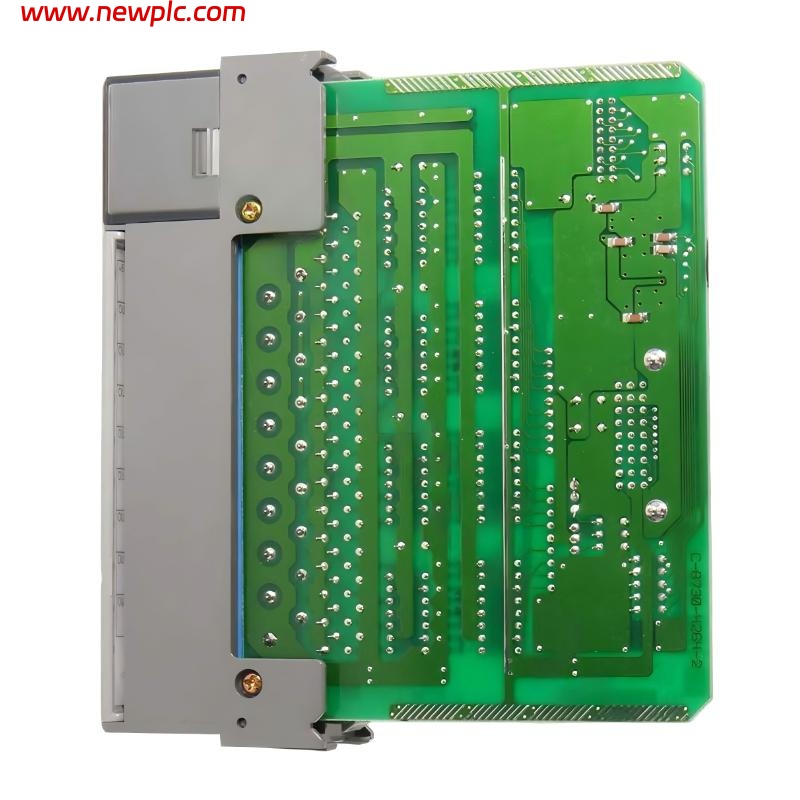

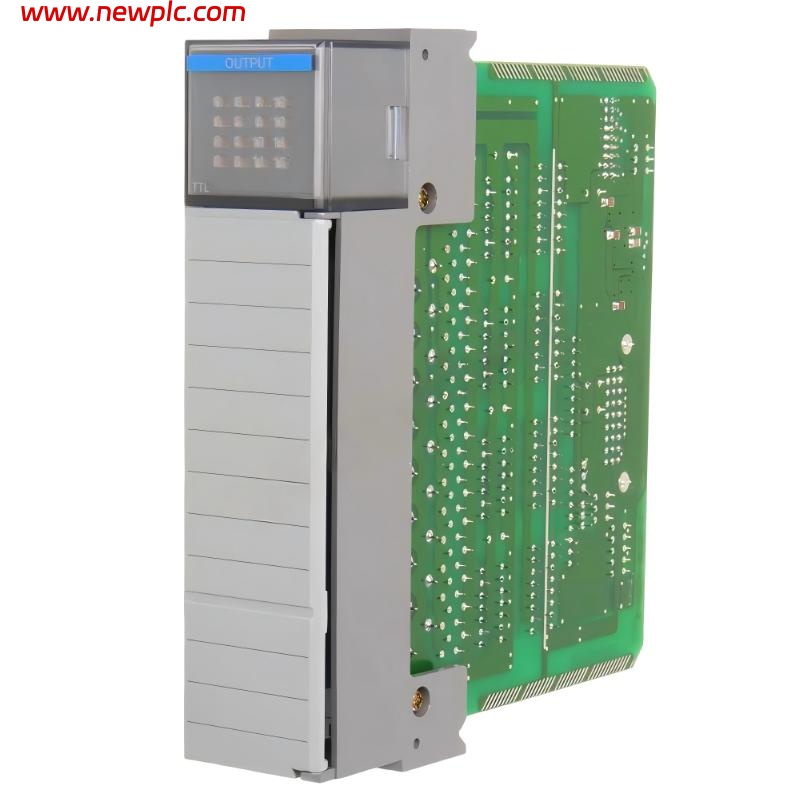

Allen Bradley 1746-OG16 SLC 500 16-Channel TTL Digital Output Module

FAQ

Q1: What is the 1746-OG16 module used for?
It is a TTL-level digital output module used for interfacing with low-voltage logic devices in SLC 500 systems.

Q2: What type of outputs does it provide?
It provides 16 TTL-compatible sinking outputs.

Q3: What voltage does the module operate at?
It operates at standard TTL levels around 5 V DC.

Q4: What is the current capacity per output?
Each channel can provide approximately 8 mA of current.

Q5: Is the module isolated?
No, it is a non-isolated output module intended for low-level signal applications.

Q6: What are the physical dimensions and weight?
Approximate size is 127 mm × 51 mm × 152 mm with a weight of about 0.30 kg.

Q7: What applications is this module suitable for?
It is suitable for interfacing with TTL logic circuits, indicators, and low-power electronic devices.

Q8: Is the 1746-OG16 still available?
No, it has been discontinued and is part of the legacy SLC 500 product line.
