Technical Specifications
| Parameter | Specification |
|---|---|

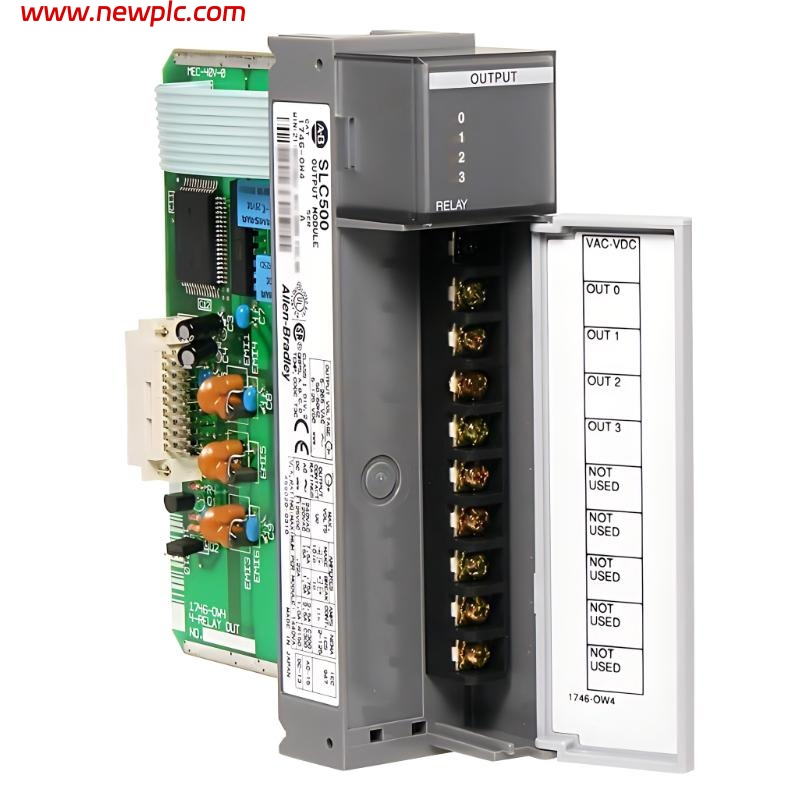

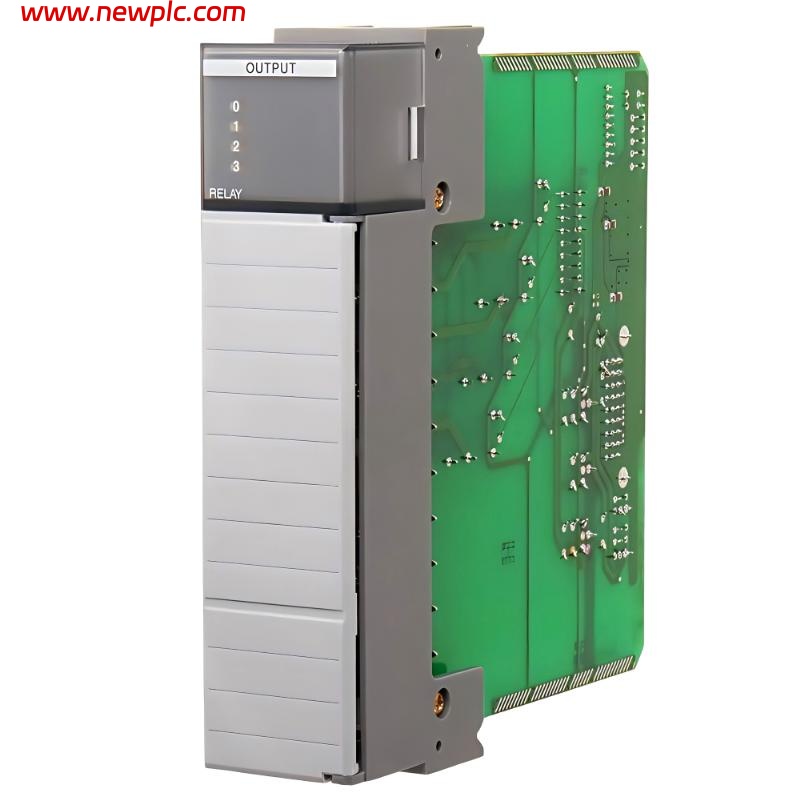

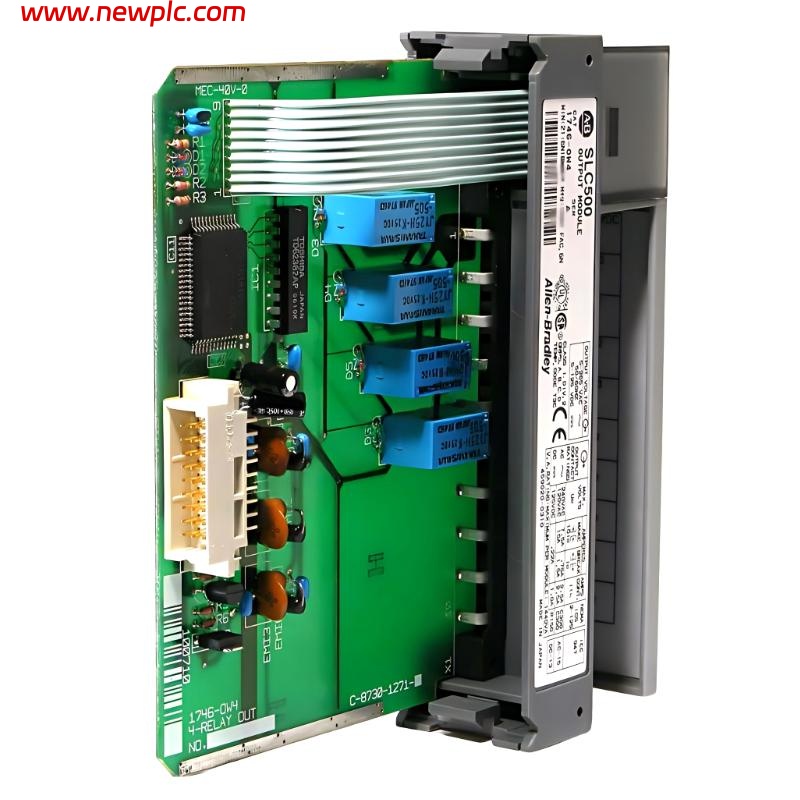

| Model | Allen-Bradley 1746-OW4 |
| Product Type | Digital Relay Output Module |
| Series | SLC 500 |
| Number of Outputs | 4 Relay Outputs |
| Output Type | Normally Open Relay Contact |
| Output Voltage Range | 5–265V AC / 5–125V DC |
| Current Rating | 2 A per Output |
| Minimum Load Current | 1 mA @ 5V DC |
| Maximum Continuous Current | 8 A per Module |
| Signal Delay | ON: 10 ms / OFF: 10 ms |
| Backplane Current | 45 mA @ 5V DC |
| Isolation Voltage | 1500V AC |
| Thermal Dissipation | 1.9 W Maximum |
| Wiring Category | Relay Contact Outputs |
| Mounting Type | SLC 500 Chassis Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | 0.27 kg |
| Certifications | UL, CE, CSA |
FAQ
FAQ
Q1: What is the primary function of the 1746-OW4 module?
The module provides 4 relay contact output channels for SLC 500 automation systems.
Q2: What output voltage range does the module support?
It supports output voltages from 5–265V AC and 5–125V DC.
Q3: How many relay outputs are included?
The module includes 4 normally open relay contact outputs.
Q4: What is the signal switching delay of the module?
The typical ON and OFF signal delay is 10 ms.
Q5: Which controllers are compatible with the 1746-OW4?
The module is compatible with Allen-Bradley SLC 500 chassis-based controllers.
Q6: Does the module provide electrical isolation?
Yes, it provides 1500V AC isolation between field wiring and the backplane.
Q7: What are the dimensions and weight of the unit?
The dimensions are 145 × 35 × 140 mm, and the weight is approximately 0.27 kg.
Q8: Is the 1746-OW4 still available?
No, the product is considered discontinued and is mainly available through surplus and refurbished inventory suppliers.
