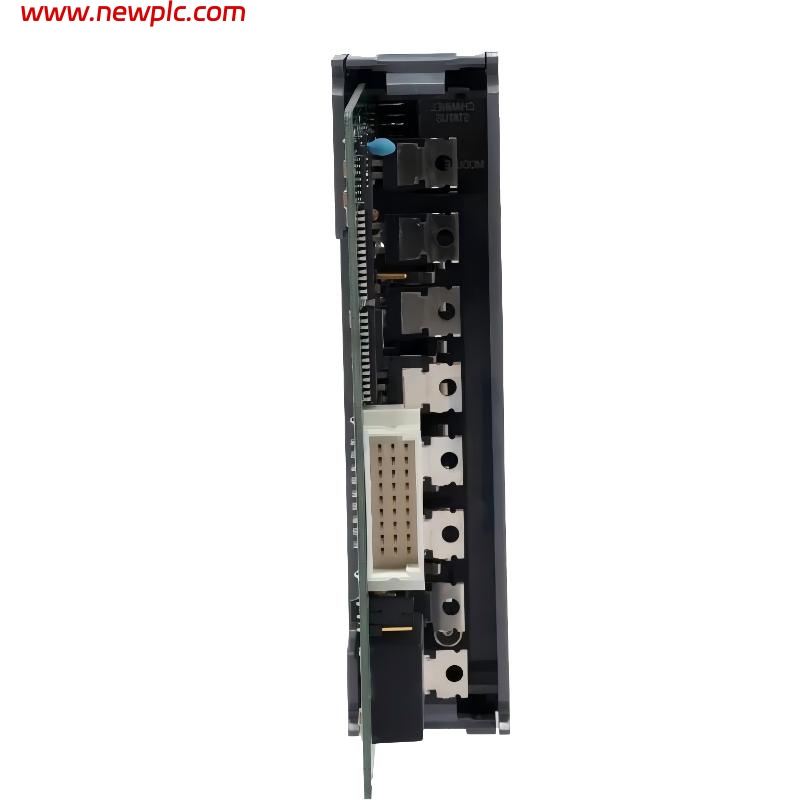

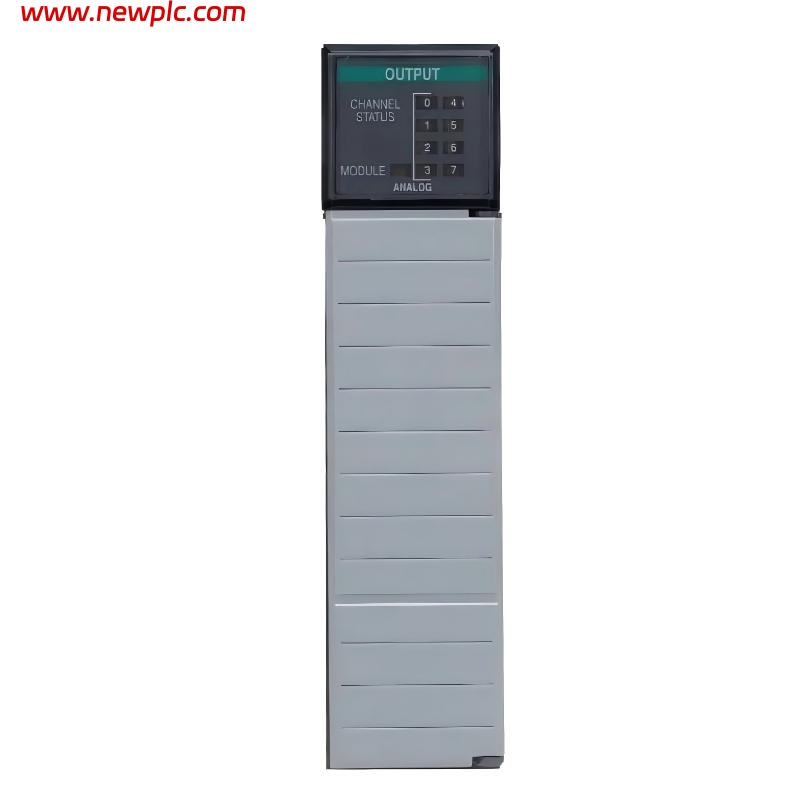

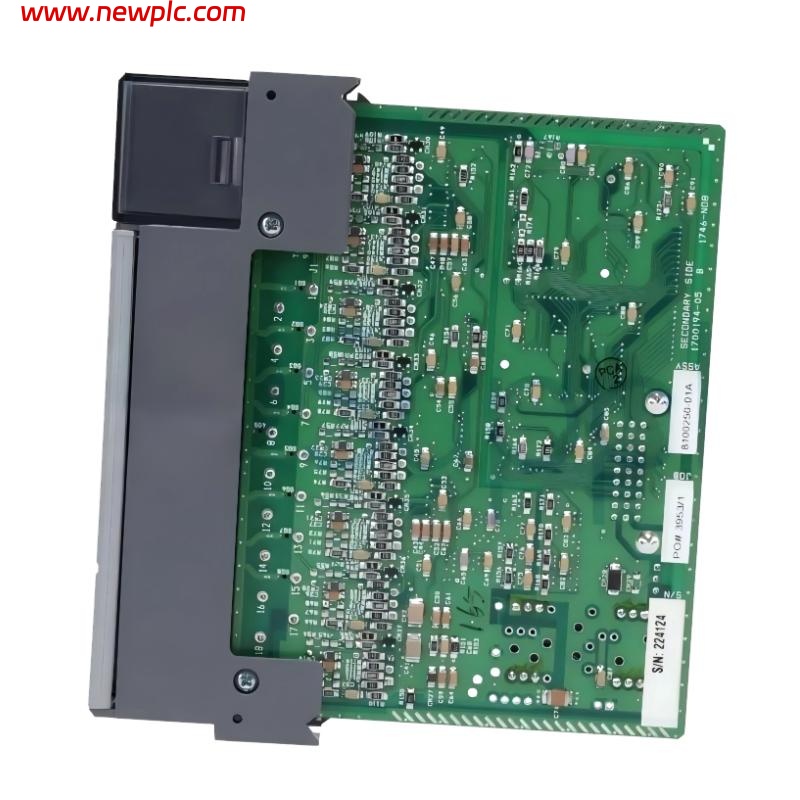

Allen Bradley 1746SC-NO8I SLC 500 Analog Output Module

FAQ

Q1: What type of module is the 1746SC‑NO8I?
It is an 8‑channel analog current output module for the Allen‑Bradley SLC 500 control system.

Q2: What output current ranges are supported?
Output ranges include 0‑20 mA, 4‑20 mA, 0‑21 mA, and 0‑21.5 mA configurable per channel.

Q3: How many channels does it provide?
The module provides eight independently controlled current output channels.

Q4: What is the resolution and response time?
It uses a 16‑bit resolution DAC with a fast step response around 1 ms.

Q5: What are the backplane power requirements?
It draws about 120 mA at 5 V and 250 mA at 24 V from the SLC backplane.

Q6: What environmental range is supported?
It is rated to operate from 0 °C to 60 °C (32 °F to 140 °F).

Q7: What are the physical size and weight of the module?
Dimensions are approximately 5.1 × 5.9 × 1.6 in (13 × 15 × 4 cm) and weight is about 0.50 kg.

Q8: Is the 1746SC‑NO8I still produced by Rockwell Automation?
No—this is a discontinued legacy SLC 500 module.
