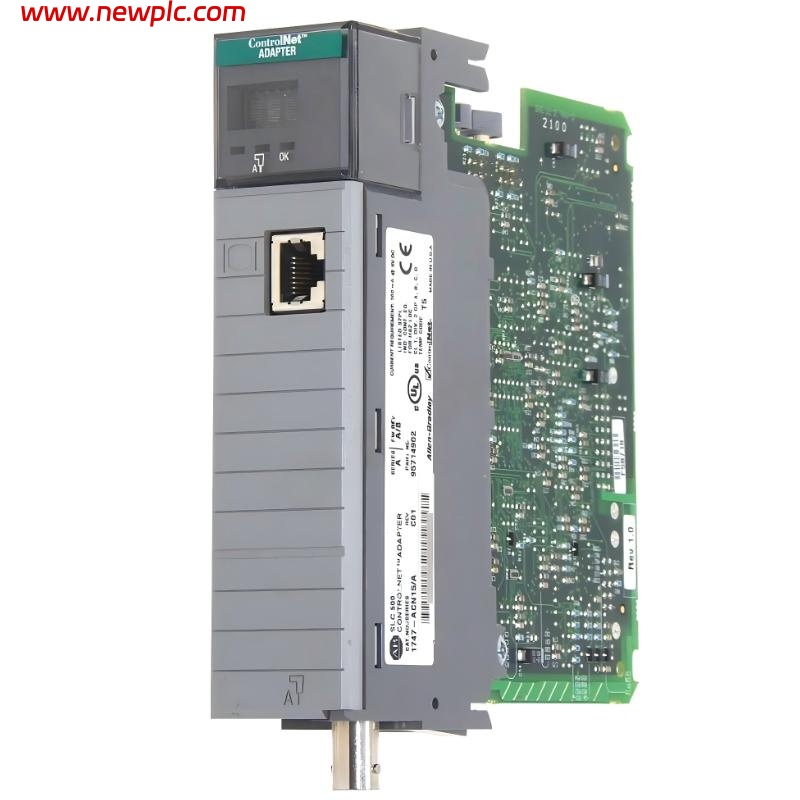

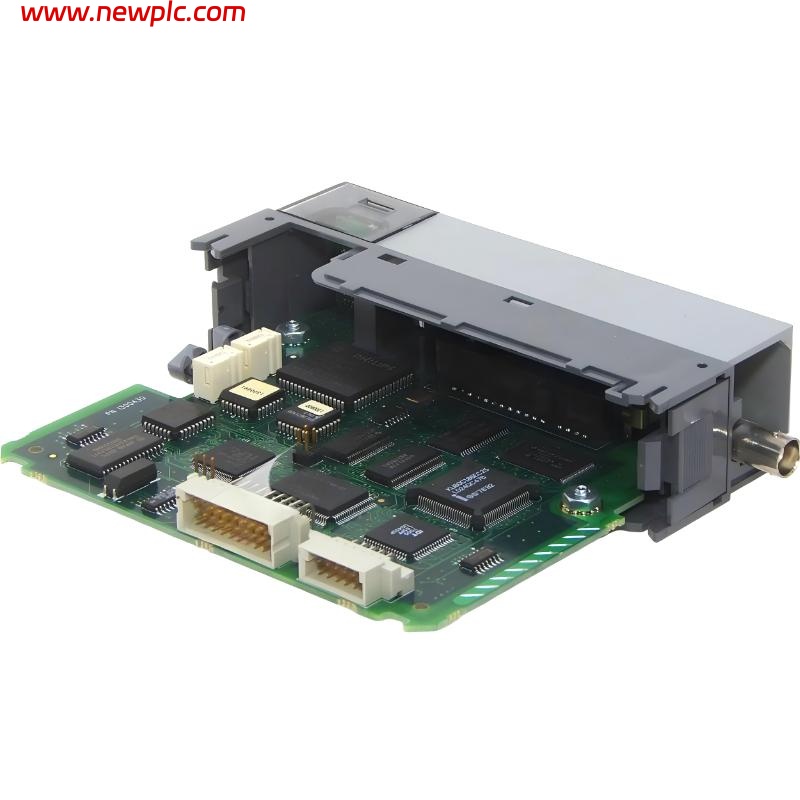

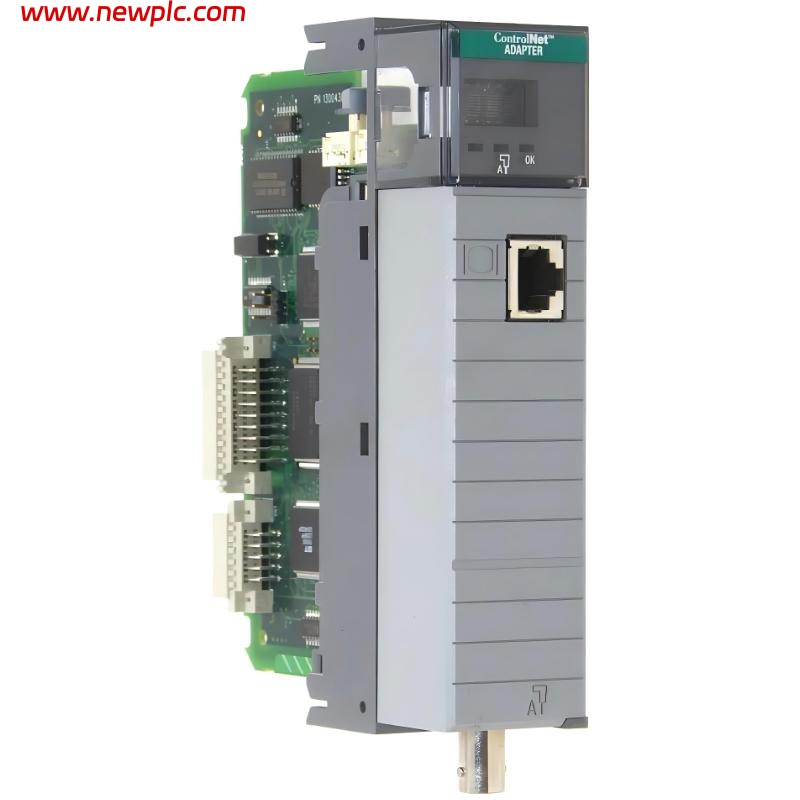

Allen Bradley 1747-ACNR15 ControlNet I/O Adapter Module – Redundant Media Version

FAQ

Q1: What is the 1747‑ACNR15 module used for?
It is a ControlNet I/O adapter module that allows remote 1746 I/O racks to connect and communicate over a ControlNet network with redundant media capability.

Q2: How does the redundant media feature work?
This module has two BNC connectors that support redundant network media paths for increased communication reliability.

Q3: What network ports are available on the module?
In addition to the two ControlNet ports, the module includes an RJ‑45 Network Access Port (NAP) for local network access.

Q4: What is the typical backplane current draw?
The module draws up to about 900 mA at 5 V DC from the SLC backplane.

Q5: What environmental conditions can it operate in?
It is rated to operate in temperatures from 0 °C to 60 °C with 5 %–95 % non‑condensing humidity.

Q6: What are the physical dimensions and weight?
Approximate dimensions are 263 × 138 × 88 mm (10.35 × 5.43 × 3.46 in), and the weight is ~0.45 kg.

Q7: Is this module still actively produced?
No—this ControlNet adapter is a discontinued part of the legacy SLC 500 platform.

Q8: Does the 1747‑ACNR15 meet industrial standards or certifications?
Yes—it complies with standards like NEMA ICS 2‑230, EN50081‑2 Class A, IEC1000‑4‑2/‑4‑3 and is CSA certified.
