Technical Specifications
| Parameter | Specification |
|---|---|

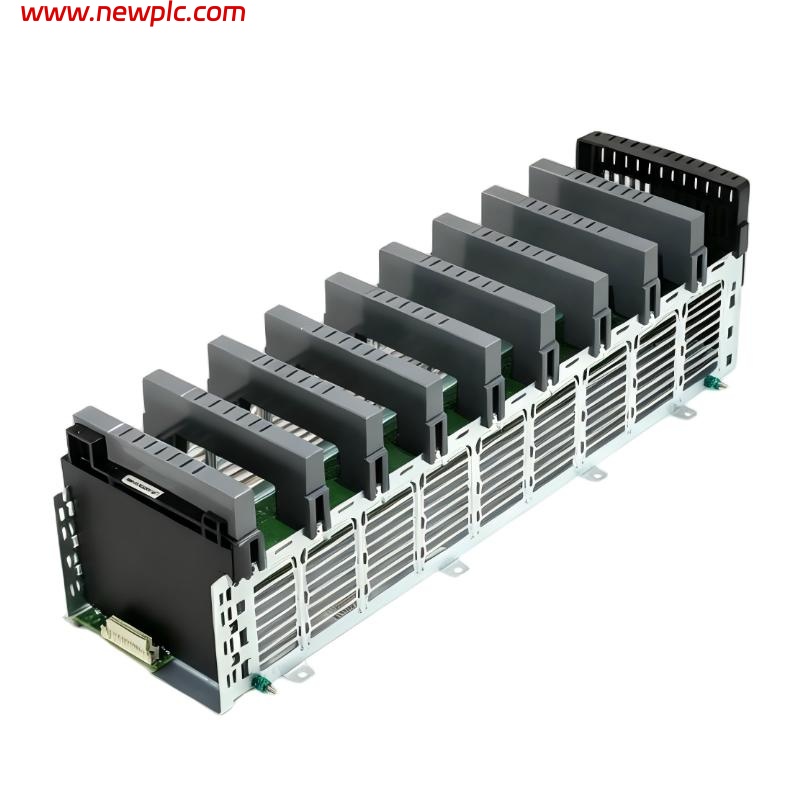

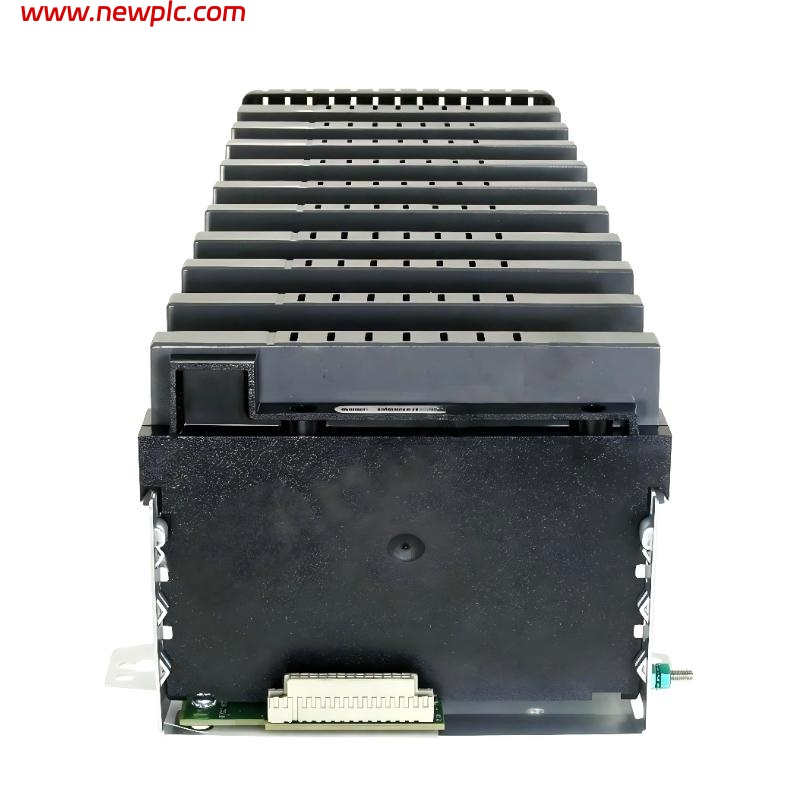

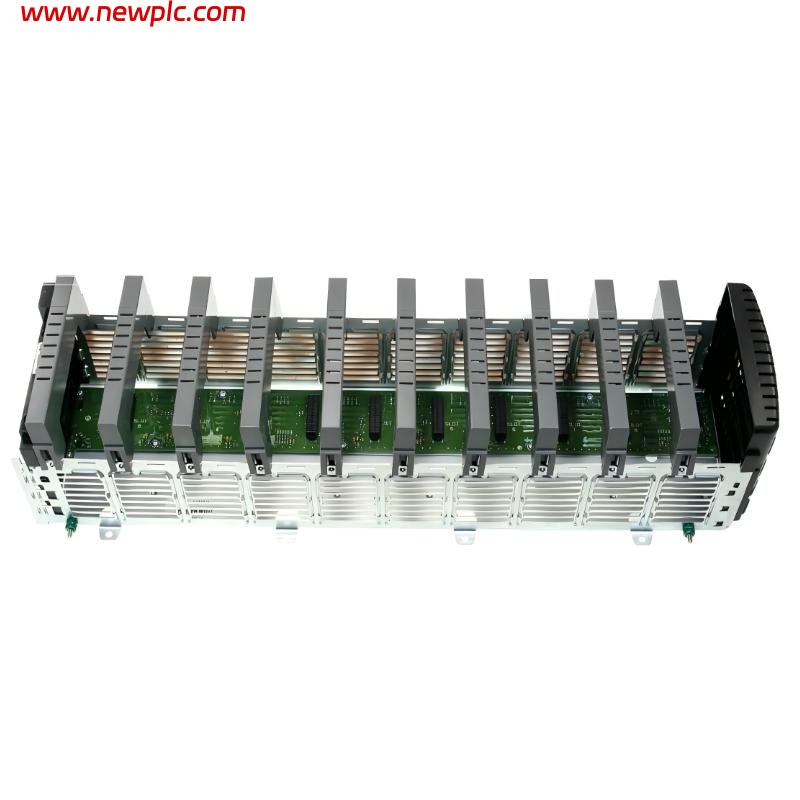

| Model | Allen-Bradley 1756-A10XT |
| Product Type | ControlLogix Chassis |
| Series | ControlLogix-XT |
| Number of Slots | 10 Slots |
| Chassis Type | Extreme Environment Chassis |
| Backplane Current Capacity | 1.5 A @ 1.2V DC, 4 A @ 3.3V DC, 15 A @ 5.1V DC, 2.8 A @ 24V DC |
| Compatible Power Supplies | 1756-XT Series Power Supplies |
| Mounting Type | Panel Mount |
| Isolation Voltage | 30V Continuous |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Shock Resistance | 30 g Operating |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Slot Spacing | Standard ControlLogix |
| Dimensions (H × W × D) | 250 × 512 × 145 mm |
| Weight | 3.60 kg |
| Certifications | UL, CE, CSA, ATEX, IECEx |
| Product Status | Active |
FAQ
FAQ
Q1: What is the primary function of the 1756-A10XT chassis?
The chassis provides a 10-slot mounting platform for ControlLogix-XT controllers, communication, and I/O modules.
Q2: What makes the 1756-A10XT different from standard ControlLogix chassis models?
It is designed for extreme environmental conditions with extended temperature operation and rugged construction.
Q3: How many module slots are available?
The chassis includes 10 slots for ControlLogix modules.
Q4: Which power supplies are compatible with the chassis?
It is compatible with Allen-Bradley 1756-XT series power supplies.
Q5: What operating temperature range does the chassis support?
The chassis supports operation from -25°C to +70°C.
Q6: What mounting method is used?
The chassis is designed for panel mounting installations.
Q7: What are the dimensions and weight of the unit?
The dimensions are 250 × 512 × 145 mm, and the weight is approximately 3.60 kg.
Q8: Is the 1756-A10XT still available?
Yes, the product is currently active within the ControlLogix-XT platform.
