Technical Specifications
| Description | Parameter |
|---|---|

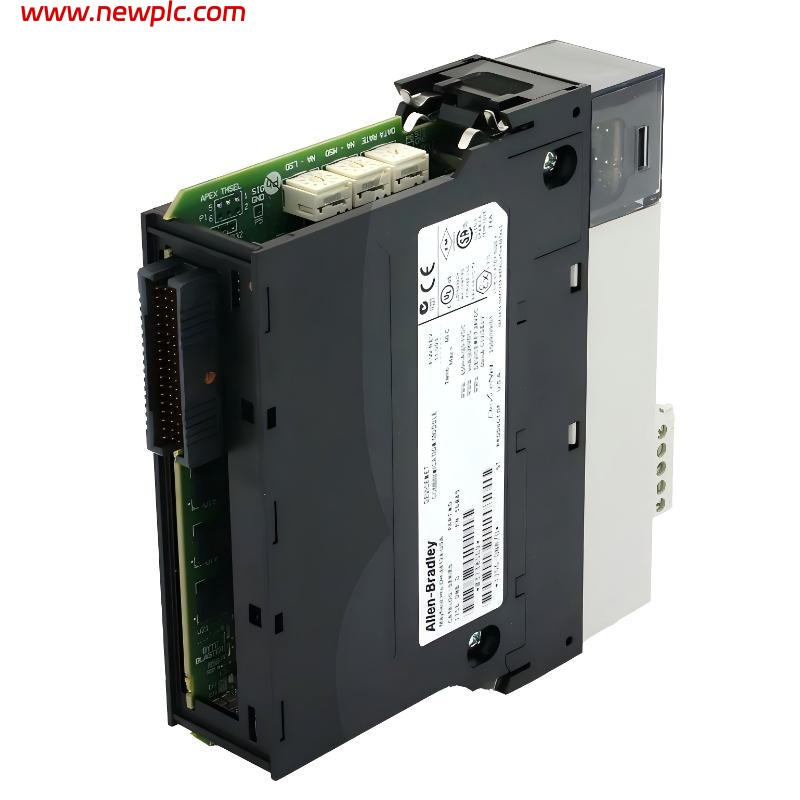

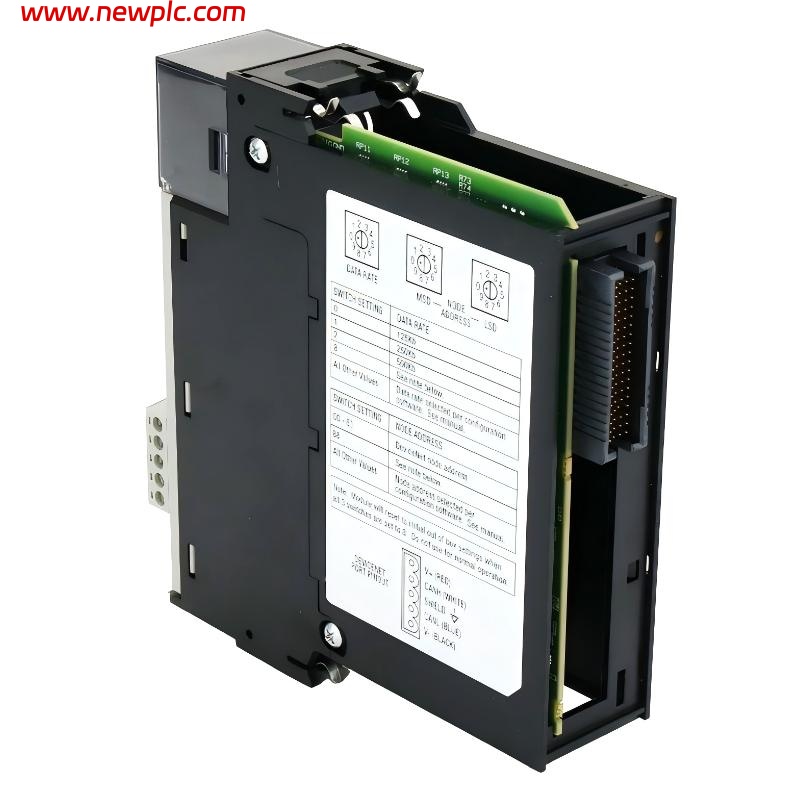

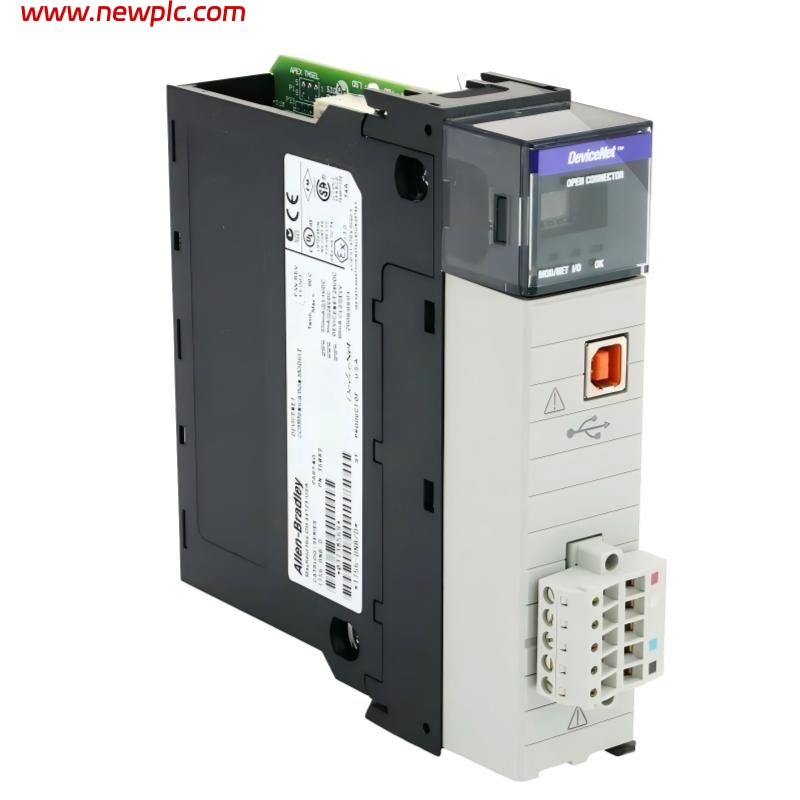

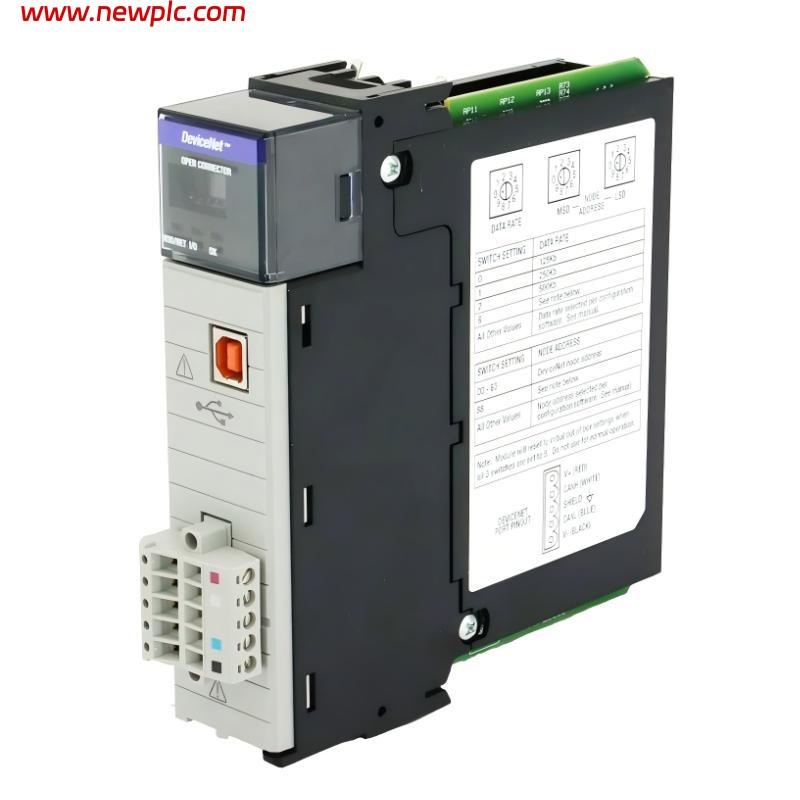

| Product Model | 1756-DNB |
| Manufacturer | Allen-Bradley |
| Product Family | ControlLogix Communication Module |
| Module Function | DeviceNet Bridge Module |
| Communication Protocol | DeviceNet |
| Data Rate | 125/250/500 kbps |
| Interface | DeviceNet port, backplane interface to ControlLogix chassis |
| Backplane Current Consumption | 750 mA at 5.1V DC |
| Isolation Voltage | 30V continuous |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5–95% non-condensing |
| Vibration Rating | 2 g (10–500 Hz) |
| Shock Rating | 30 g |
| Dimensions | 145 mm × 35 mm × 140 mm (5.7 in × 1.4 in × 5.5 in) |
| Weight | 0.33 kg (0.73 lb) |
| Installation | ControlLogix chassis slot |
| Certifications | CE, UL, CSA |
FAQ
FAQ
Q1. What is the main purpose of the 1756-DNB module?
It connects a DeviceNet network to a ControlLogix system, acting as a bridge.
Q2. Which data rates does it support?
125, 250, or 500 kbps on DeviceNet.
Q3. Can it be installed in any ControlLogix chassis?
Yes, it fits into standard ControlLogix chassis slots.
Q4. Does this module require configuration software?
Yes, it is configured using Studio 5000 or RSLogix 5000.
Q5. Is the 1756-DNB hot-swappable?
Yes, it can be removed or installed without shutting down the system, under proper conditions.
Q6. How many DeviceNet networks can it connect?
It connects a single DeviceNet network to the ControlLogix backplane.
Q7. What type of devices can be connected through this module?
It supports DeviceNet devices such as sensors, actuators, and remote I/O modules.
Q8. Where is this module commonly used?
In industrial automation applications that require integration of DeviceNet devices with ControlLogix controllers.
