Technical Specifications
| Parameter | Specification |
|---|---|

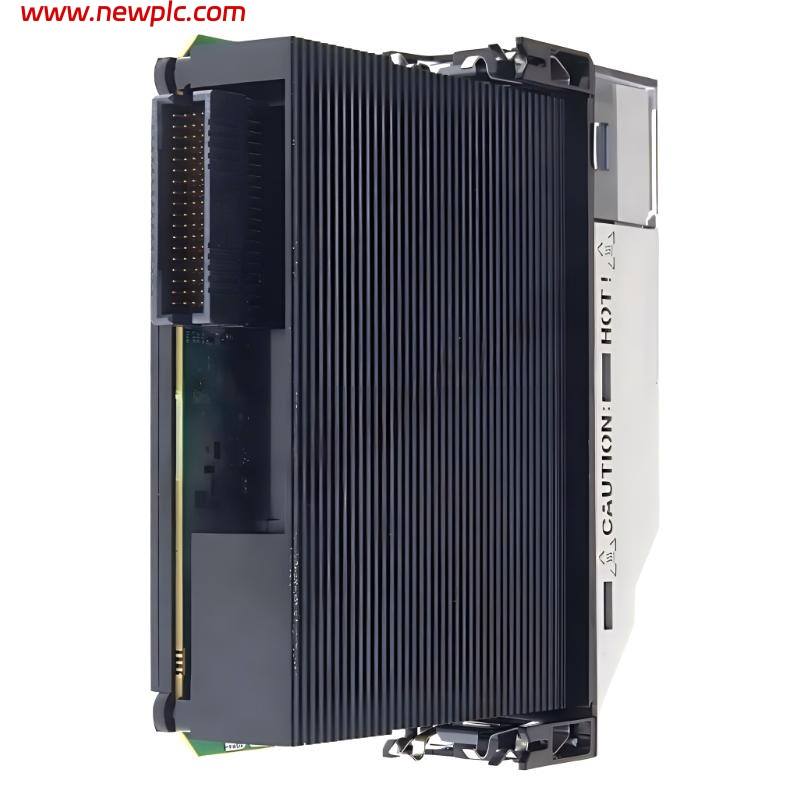

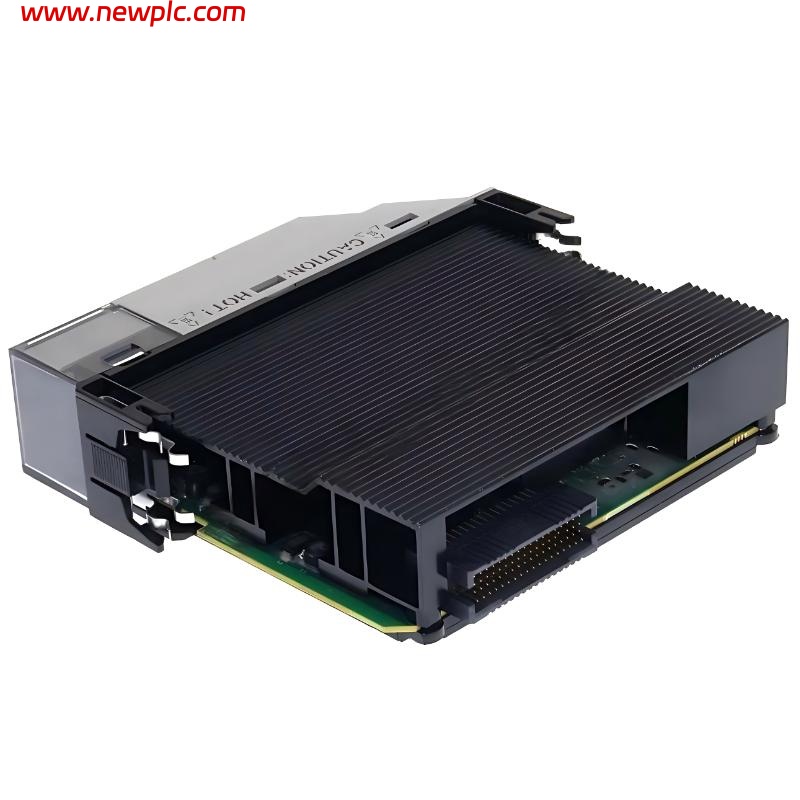

| Model | Allen-Bradley 1756-EN2TK |
| Product Type | EtherNet/IP Communication Module |
| Series | ControlLogix |
| Communication Protocol | EtherNet/IP |

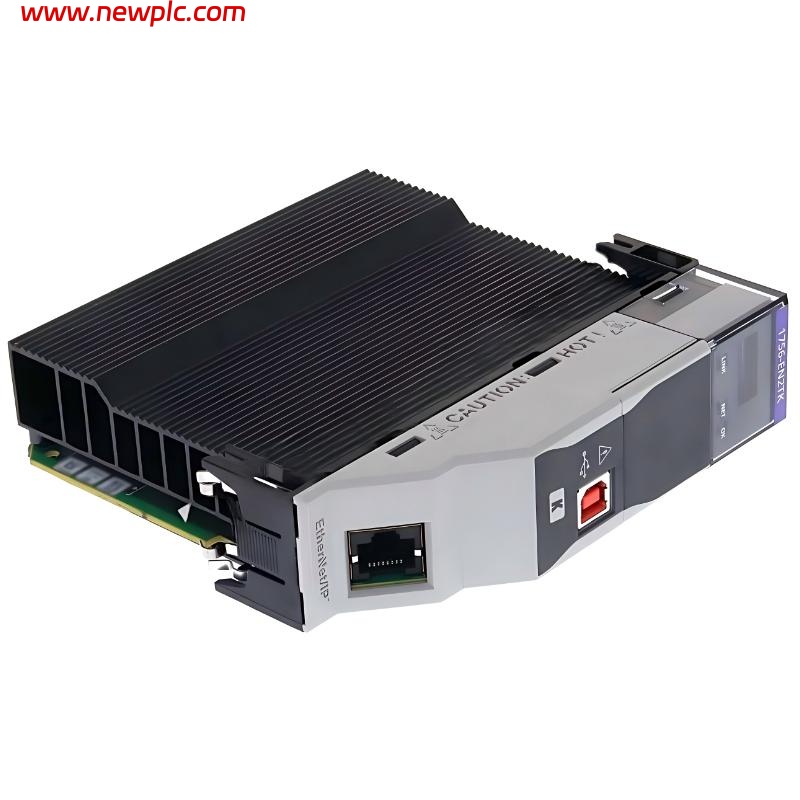

| Ethernet Interface | 1 Copper RJ45 Port |
| Communication Speed | 10/100 Mbps |
| Number of TCP/IP Connections | 128 Connections |
| Number of Logix Connections | 256 Connections |
| Network Type | EtherNet/IP Industrial Ethernet |
| SNMP Support | Yes |
| Special Features | Conformal Coating |
| Backplane Current Consumption | 1 A @ 5.1V DC |
| Power Dissipation | 5.1 W |
| Isolation Voltage | 30V Continuous |
| Mounting Type | ControlLogix Chassis Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Shock Resistance | 30 g Operating |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | 0.30 kg |
| Certifications | UL, CE, CSA, ATEX |
| Product Status | Active |
FAQ
FAQ
Q1: What is the primary function of the 1756-EN2TK module?
The module provides EtherNet/IP communication for ControlLogix automation systems.
Q2: What communication speed does the module support?
It supports 10/100 Mbps industrial Ethernet communication.
Q3: How many TCP/IP connections are supported?
The module supports up to 128 TCP/IP connections and 256 Logix connections.
Q4: What type of Ethernet connector is used?
The module uses one RJ45 copper Ethernet port.
Q5: What is the benefit of the conformal coating feature?
The conformal coating helps protect the module against moisture, dust, and corrosive environments.
Q6: Which systems are compatible with the 1756-EN2TK?
It is designed for Allen-Bradley ControlLogix chassis-based systems.
Q7: What are the dimensions and weight of the unit?
The dimensions are 145 × 35 × 140 mm, and the weight is approximately 0.30 kg.
Q8: Is the 1756-EN2TK still available?
Yes, the product is currently listed as active by Rockwell Automation.
