Technical Specifications
| Parameter | Specification |
|---|---|

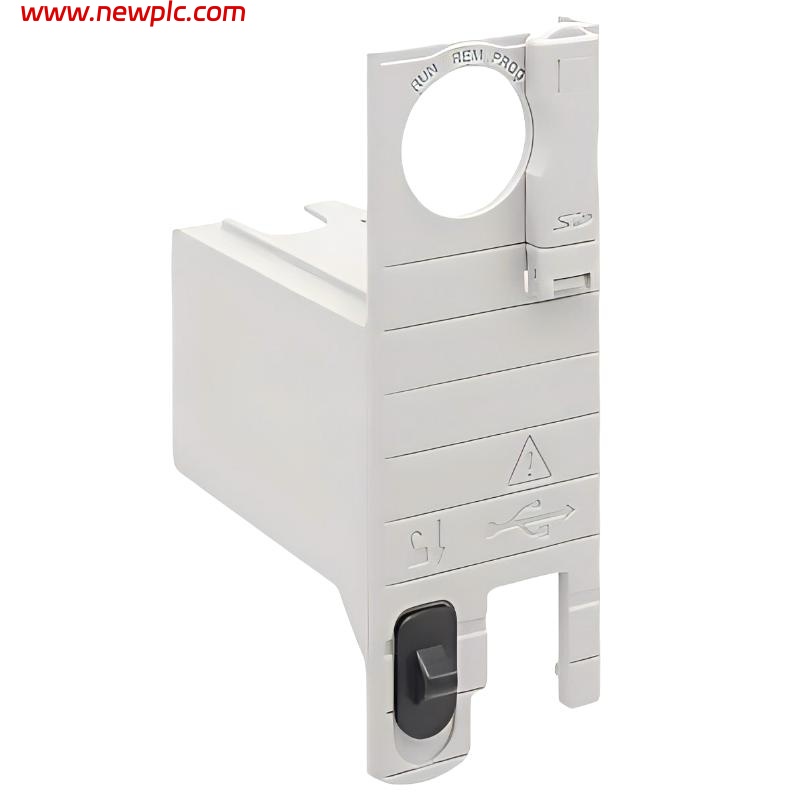

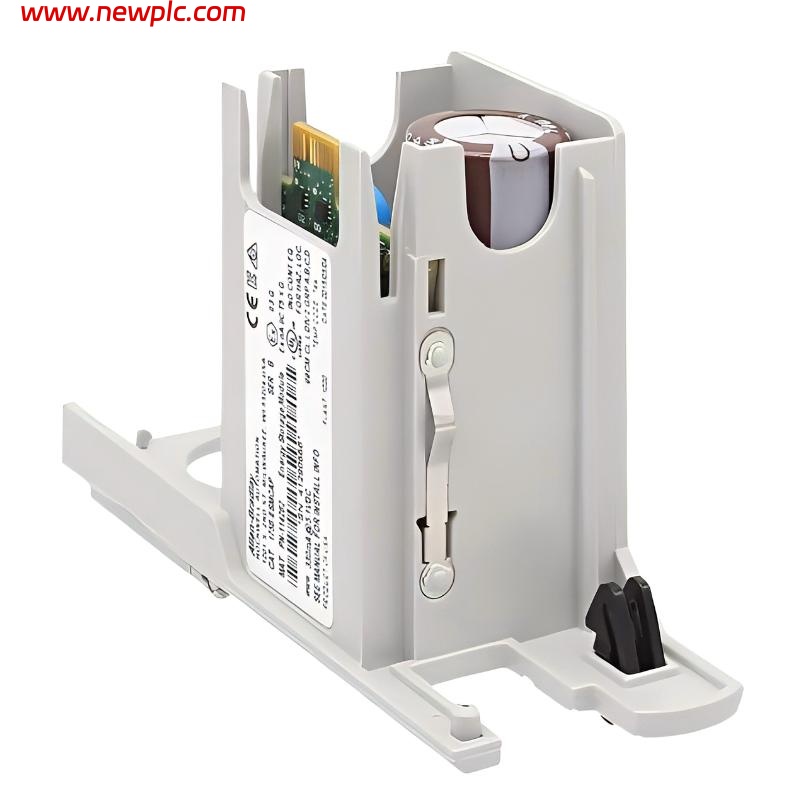

| Model | Allen-Bradley 1756-ESMCAP/B |
| Product Type | Energy Storage Module Capacitor Pack |
| Series | ControlLogix |
| Revision | Series B |
| Function | Backup Energy Storage for Controller Memory Retention |
| Compatible Controllers | ControlLogix 5580 Controllers |
| Energy Storage Type | Supercapacitor-Based Module |
| Removable Module | Yes |
| Replacement Type | Field Replaceable |
| Installation Method | Direct Attachment to Controller |
| Power Loss Protection | Maintains Controller Memory During Power Interruptions |
| Battery Requirement | No Battery Required |
| Maintenance Requirement | Low Maintenance |
| Status Indicators | Controller Diagnostic Monitoring |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Shock Resistance | 30 g Operating |
| Dimensions (H × W × D) | 120 × 25 × 85 mm |
| Weight | 0.12 kg |
| Certifications | UL, CE, CSA, ATEX, IECEx |
| Product Status | Active |
FAQ
FAQ
Q1: What is the primary function of the 1756-ESMCAP/B module?
The module provides backup energy storage for ControlLogix 5580 controllers to preserve memory during power loss conditions.
Q2: Which controllers are compatible with the 1756-ESMCAP/B?
It is designed for Allen-Bradley ControlLogix 5580 series controllers.
Q3: What is the difference between the standard 1756-ESMCAP and the /B revision?
The “/B” designation indicates a newer hardware revision or manufacturing series with potential internal improvements or updated compliance certifications.
Q4: Does the module require a battery?
No, it uses supercapacitor technology instead of traditional batteries.
Q5: Is the module field replaceable?
Yes, the capacitor pack is removable and can be replaced in the field.
Q6: How is the module installed?
It mounts directly onto compatible ControlLogix 5580 controllers.
Q7: What are the dimensions and weight of the unit?
The dimensions are 120 × 25 × 85 mm, and the weight is approximately 0.12 kg.
Q8: Is the 1756-ESMCAP/B still available?
Yes, the product is currently active within the Allen-Bradley ControlLogix platform.
