Technical Specifications
| Description | Parameter |
|---|---|

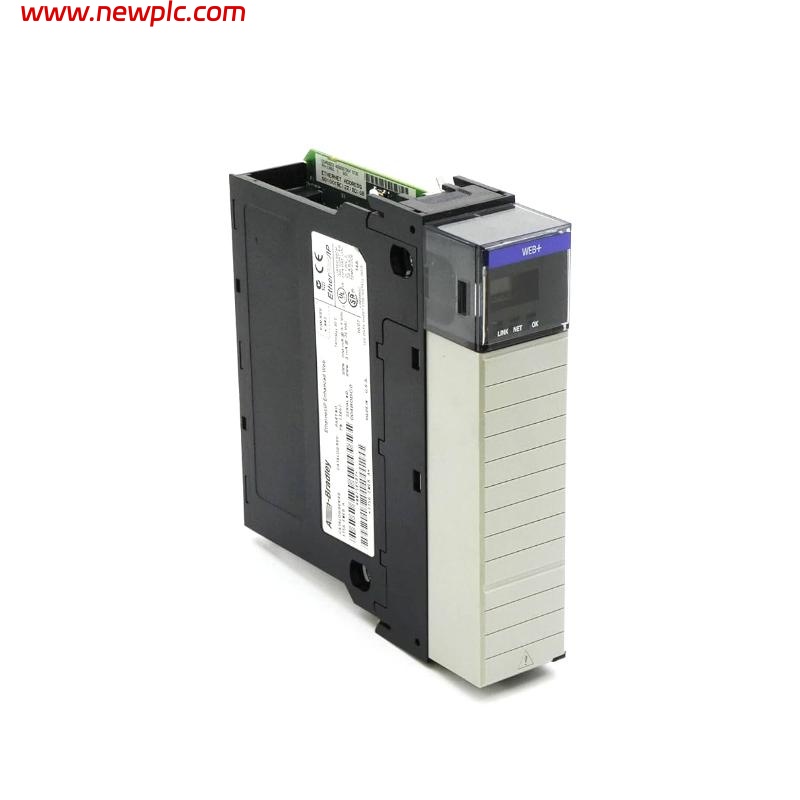

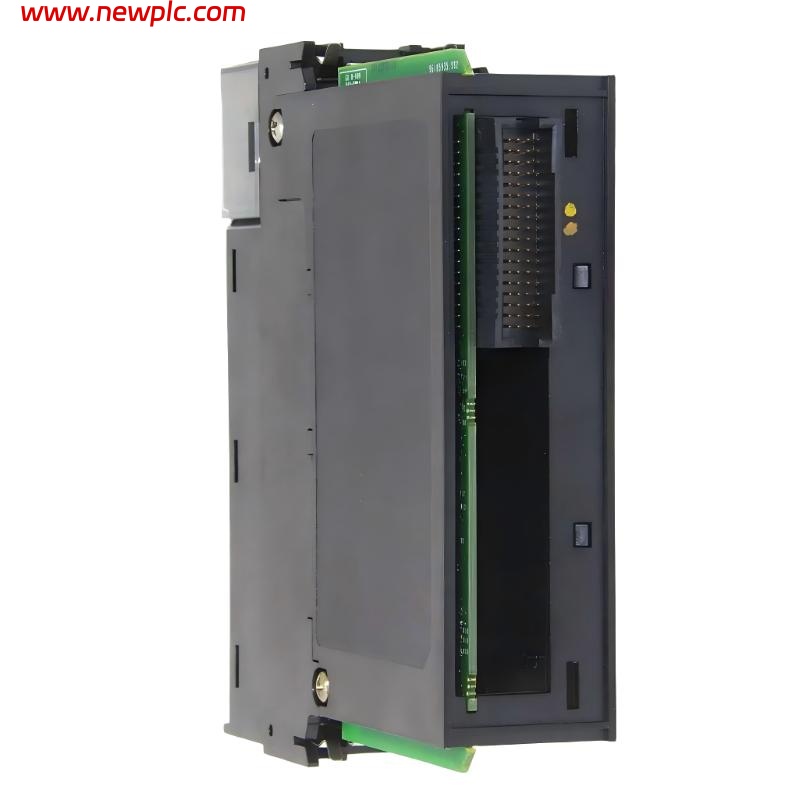

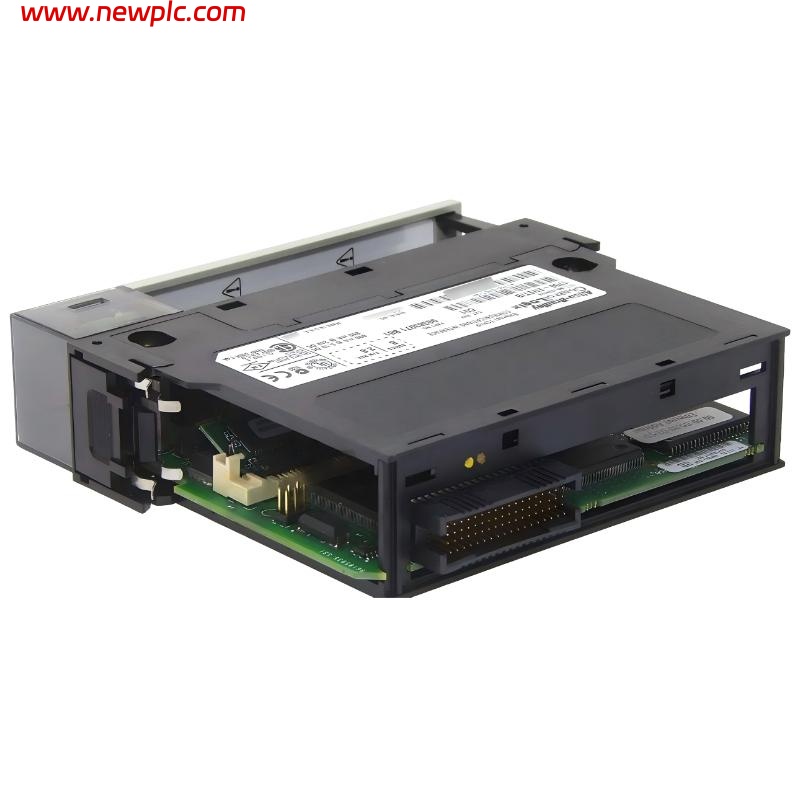

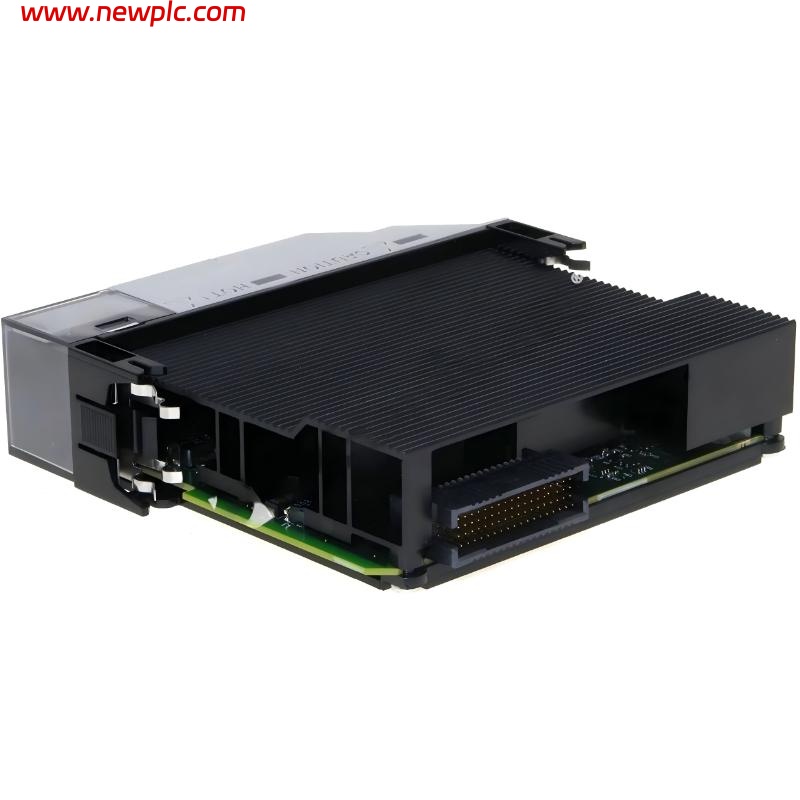

| Product Model | 1756-EWEB |
| Manufacturer | Allen-Bradley |
| Product Family | ControlLogix Communication Module |
| Module Function | Web Server / EtherNet/IP Interface |
| Communication Protocol | EtherNet/IP, HTTP/HTTPS |
| Data Rate | 10/100 Mbps |
| Interface | RJ45 Ethernet port |
| Backplane Current Consumption | 1.0 A at 5.1V DC |
| Isolation Voltage | 30V continuous |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5–95% non-condensing |
| Vibration Rating | 2 g (10–500 Hz) |
| Shock Rating | 30 g |
| Dimensions | 145 mm × 35 mm × 140 mm (5.7 in × 1.4 in × 5.5 in) |
| Weight | 0.37 kg (0.82 lb) |
| Installation | ControlLogix chassis slot |
| Certifications | CE, UL, CSA |
FAQ
FAQ
Q1. What is the function of the 1756-EWEB module?
It provides a web server interface and EtherNet/IP communication for ControlLogix controllers.
Q2. What protocols are supported?
EtherNet/IP, HTTP, and HTTPS for web access.
Q3. What data rates are supported?
10 Mbps and 100 Mbps full-duplex Ethernet.
Q4. How is the module connected to the network?
Via a standard RJ45 Ethernet port.
Q5. Can it be installed in any ControlLogix chassis?
Yes, it fits standard ControlLogix chassis slots.
Q6. Is configuration software required?
Yes, Studio 5000 or RSLogix 5000 is used for network and web server configuration.
Q7. Is the module hot-swappable?
Yes, it supports insertion or removal under power with proper precautions.
Q8. Where is this module typically used?
In industrial automation systems that require web-based monitoring, EtherNet/IP connectivity, and remote access to ControlLogix controllers.
