Technical Specifications
| Description | Parameter |
|---|---|

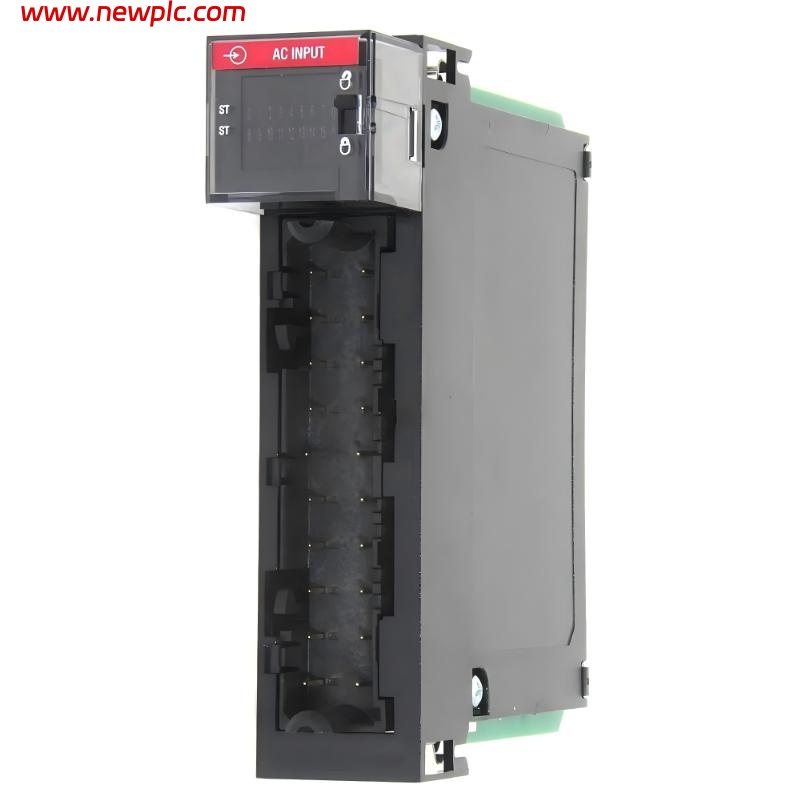

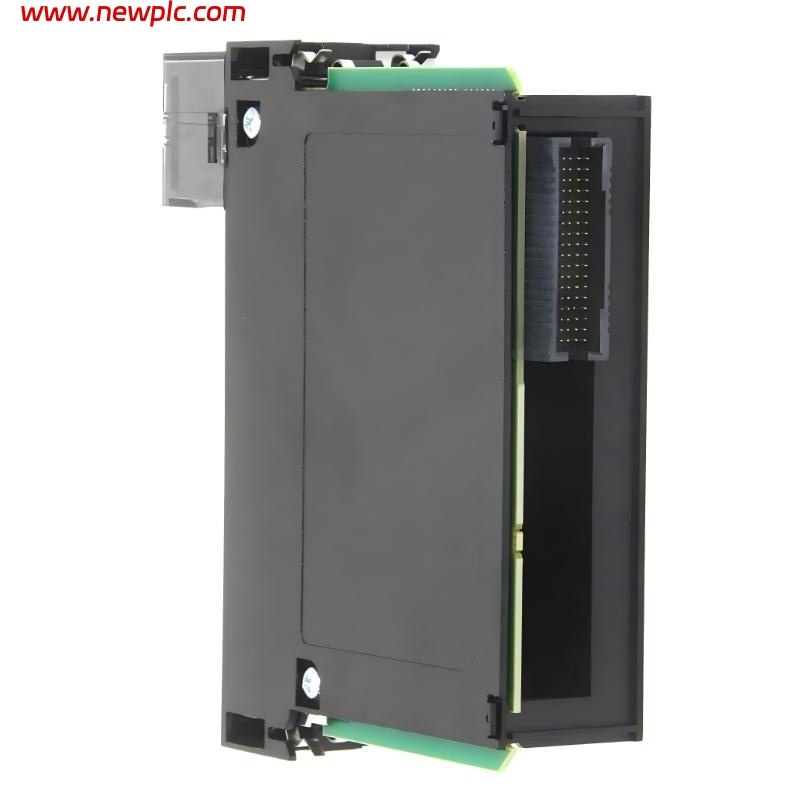

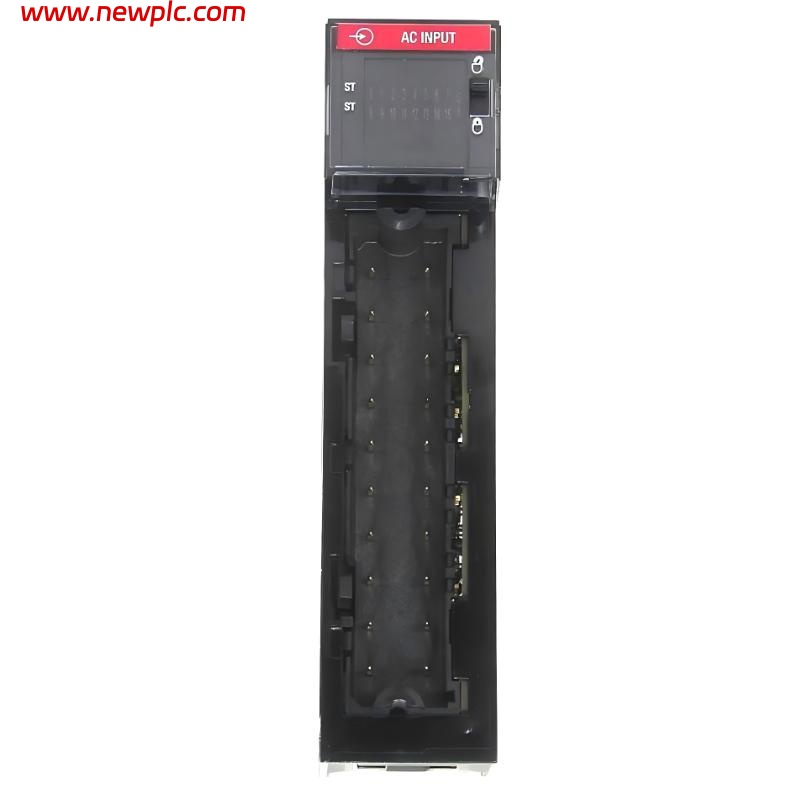

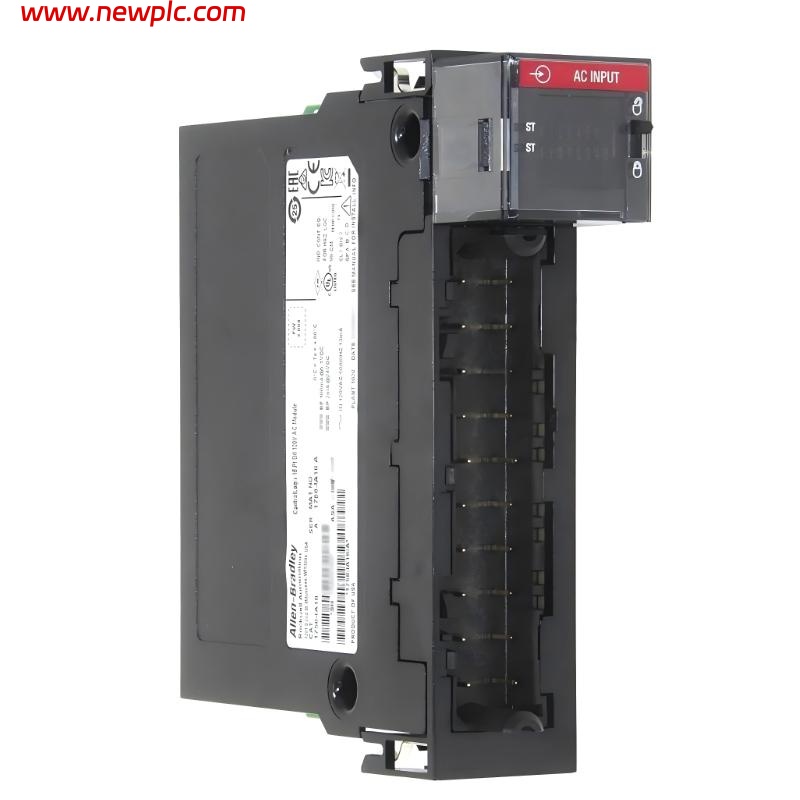

| Product Model | 1756-IA16 |
| Manufacturer | Allen-Bradley |
| Product Family | ControlLogix Input Module |
| Module Function | 16-Channel AC Input Module |
| Input Type | AC voltage |
| Input Voltage Range | 24–240 V AC, 50/60 Hz |
| Number of Channels | 16 |
| Isolation Voltage | 30V continuous |
| Input Current | 4 mA nominal per channel |
| Backplane Current Consumption | 150 mA at 5.1V DC |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5–95% non-condensing |
| Vibration Rating | 2 g (10–500 Hz) |
| Shock Rating | 30 g |
| Dimensions | 145 mm × 35 mm × 140 mm (5.7 in × 1.4 in × 5.5 in) |
| Weight | 0.32 kg (0.71 lb) |
| Installation | ControlLogix chassis slot |
| Certifications | CE, UL, CSA |
FAQ
FAQ
Q1. What is the function of the 1756-IA16 module?
It provides 16 AC input channels for monitoring field devices in ControlLogix systems.
Q2. What voltage range does it support?
24–240 V AC, 50/60 Hz.
Q3. How many input channels are available?
16 independent channels.
Q4. Can it be installed in any ControlLogix chassis?
Yes, it fits standard ControlLogix chassis slots.
Q5. What is the nominal input current per channel?
4 mA per channel.
Q6. Is the module hot-swappable?
Yes, it supports insertion or removal under power with proper precautions.
Q7. What type of devices can be connected?
AC sensors, switches, and other field devices.
Q8. Where is this module commonly used?
In industrial automation systems for monitoring AC field inputs, such as sensors and switches.
