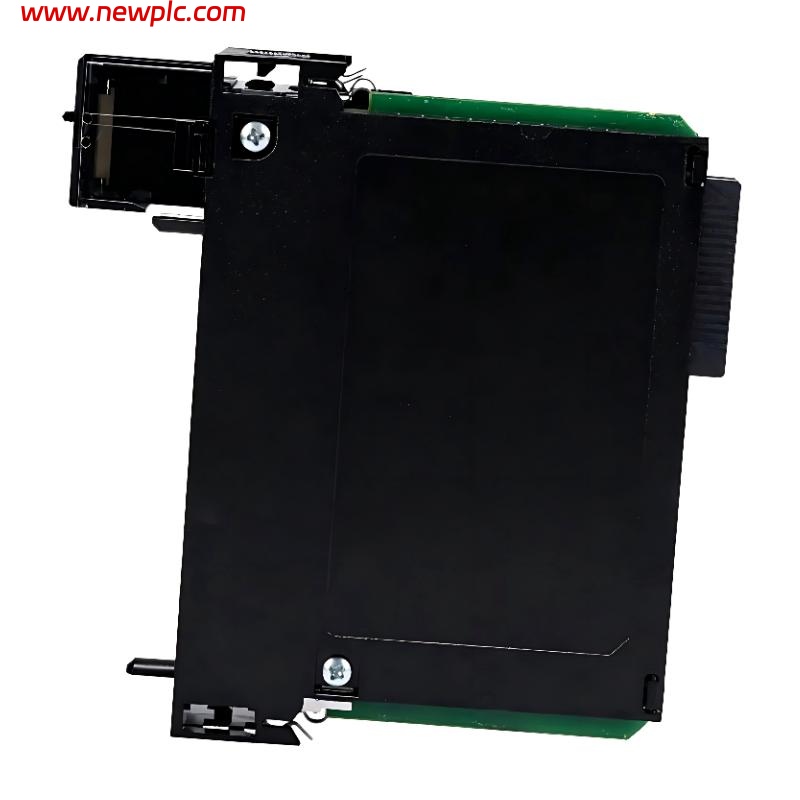

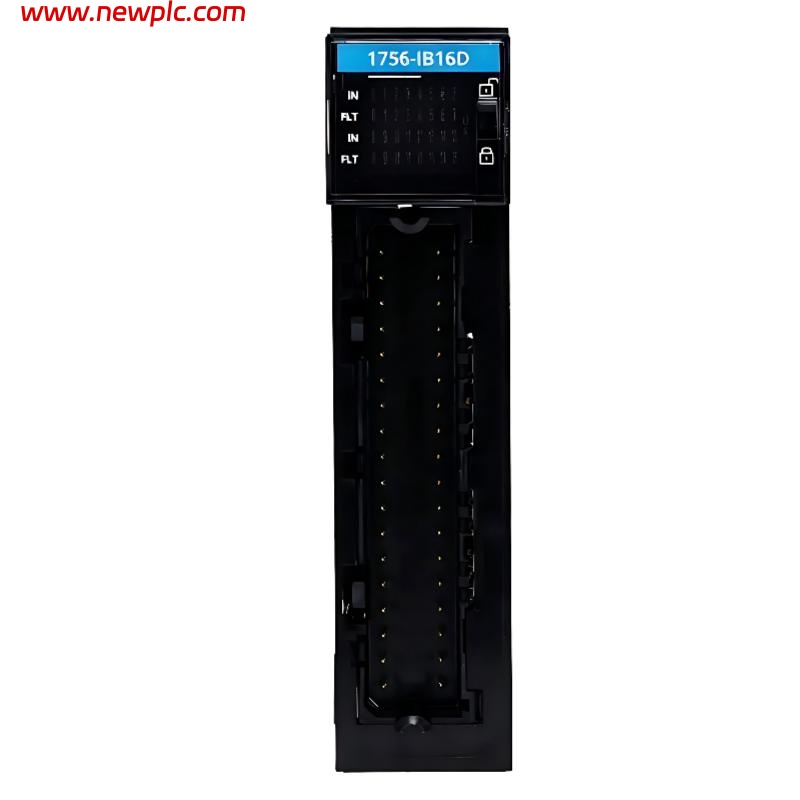

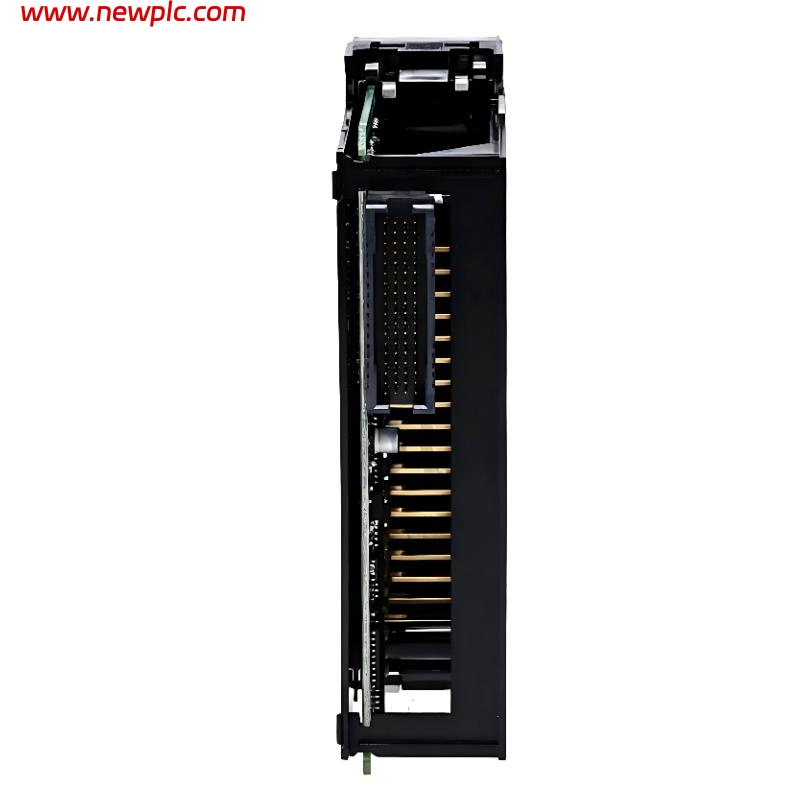

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Allen-Bradley 1756-IB16D |
| Product Type | Diagnostic DC Input Module |
| Series | ControlLogix |
| Number of Inputs | 16 Diagnostic Inputs |
| Input Grouping | 4 Points per Group |
| Input Voltage Category | 12/24V DC Sink |
| Operating Voltage Range | 10–30V DC |
| Nominal Input Voltage | 24V DC |
| Input Delay (Off to On) | 340 μs nominal + selectable filter (0, 1, 2 ms) |
| Input Delay (On to Off) | 740 μs nominal + selectable filter (0, 1, 9, 18 ms) |
| Backplane Current Consumption | 150 mA @ 5.1V DC, 3 mA @ 24V DC |
| Total Backplane Power | 0.84 W |
| Power Dissipation | 5.8 W @ 60°C |
| Thermal Dissipation | 19.78 BTU/hr |
| Isolation Voltage | 250V Continuous |
| Input Impedance | 2.31 kΩ @ 30V DC |
| Off-State Current | 1.5 mA Maximum |
| On-State Current | 2 mA @ 10V DC to 13 mA @ 30V DC |
| Inrush Current | 250 mA Maximum |
| Diagnostic Features | Wire-Off Detection, Timestamping, Fault Reporting |
| Compatible RTB | 1756-TBCH, 1756-TBS6H |
| Mounting Type | ControlLogix Chassis Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | 0.35 kg |
| Certifications | UL, CE, CSA, ATEX |
| Product Status | Active |
FAQ
FAQ
Q1: What is the primary function of the 1756-IB16D module?
The module provides 16 diagnostic DC sinking inputs for ControlLogix automation systems with advanced fault monitoring capabilities.
Q2: What voltage range does the module support?
It supports 10–30V DC input signals with a nominal operating voltage of 24V DC.
Q3: How many input channels are available?
The module includes 16 diagnostic input channels grouped in sets of four.
Q4: What diagnostic features are included?
The module supports wire-off detection, module-level fault reporting, timestamping, and field-side diagnostics.
Q5: Which removable terminal blocks are compatible?
It is compatible with 1756-TBCH and 1756-TBS6H terminal block housings.
Q6: What is the isolation rating of the module?
The module provides 250V continuous isolation between inputs and the backplane.
Q7: What are the dimensions and weight of the unit?
The dimensions are approximately 145 × 35 × 140 mm, and the weight is about 0.35 kg.
Q8: Is the 1756-IB16D still available?
Yes, the product is currently listed as Active by Rockwell Automation.
