Technical Specifications
| Description | Parameter |
|---|---|

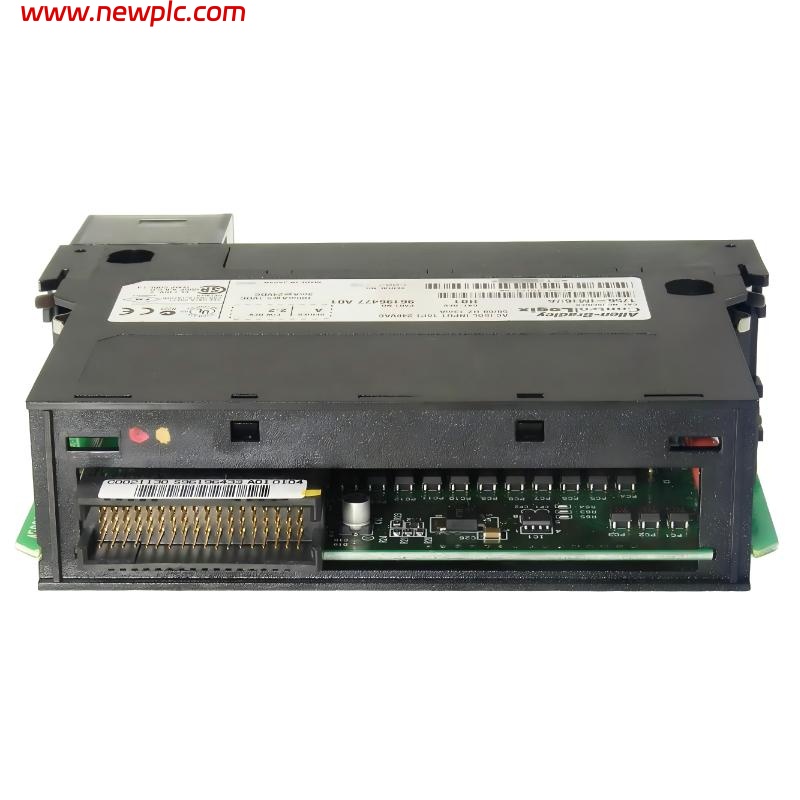

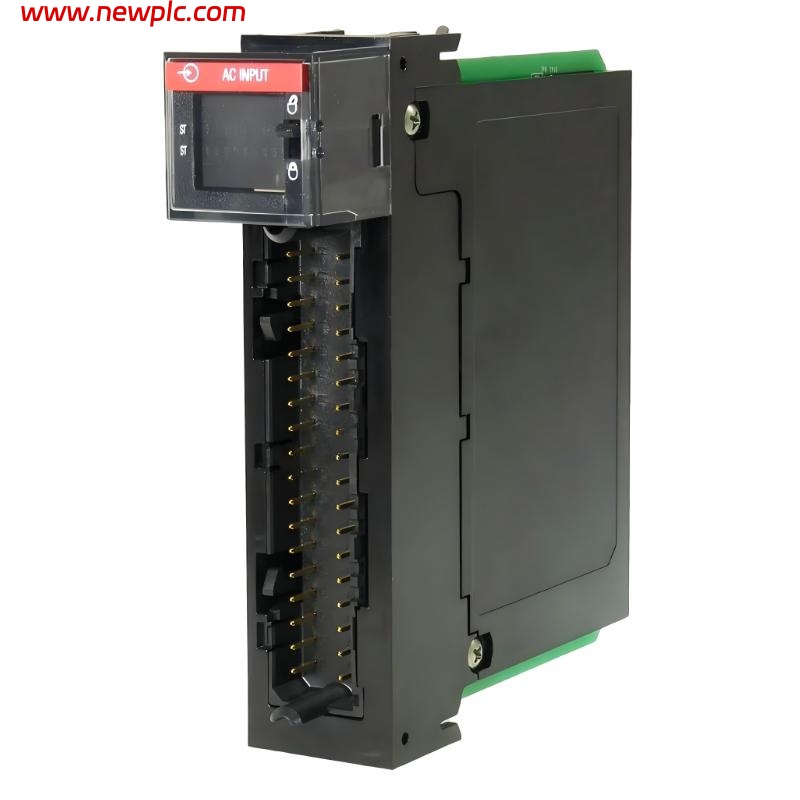

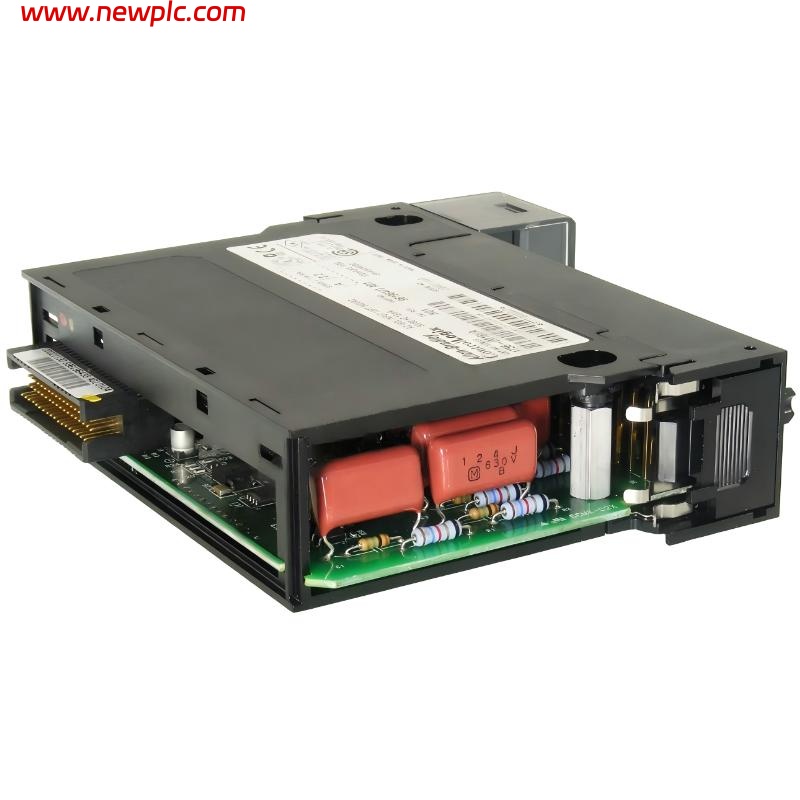

| Product Model | 1756-IM16I |
| Manufacturer | Allen-Bradley |
| Product Type | ControlLogix Input Module |
| Module Function | 16-Channel Isolated AC Digital Input Module |
| Input Type | AC voltage, isolated channels |
| Input Voltage Range | 79–132 V AC, 47–63 Hz |
| Number of Channels | 16 |
| Input Current | 6 mA at 120 V AC (typical) |
| Isolation Voltage | 250V channel-to-channel and channel-to-backplane |
| Backplane Current Consumption | 180 mA at 5.1V DC |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5–95% non-condensing |
| Vibration Rating | 2 g (10–500 Hz) |
| Shock Rating | 30 g |
| Dimensions | 145 mm × 35 mm × 140 mm (5.7 in × 1.4 in × 5.5 in) |
| Weight | 0.33 kg (0.73 lb) |
| Installation | ControlLogix chassis slot |
| Certifications | CE, UL, CSA |
FAQ
FAQ
Q1. What is the function of the 1756-IM16I module?
It provides 16 isolated AC digital input channels for ControlLogix systems.
Q2. What voltage range does it support?
79–132 V AC at 47–63 Hz.
Q3. How many input channels are available?
16 independent isolated channels.
Q4. What does “isolated” mean in this module?
Each channel is electrically isolated to improve noise immunity and protect against faults.
Q5. What is the typical input current per channel?
Approximately 6 mA at 120 V AC.
Q6. Can it be installed in any ControlLogix chassis?
Yes, it fits standard ControlLogix chassis slots.
Q7. Is the module hot-swappable?
Yes, it supports insertion or removal under power with proper precautions.
Q8. Where is this module typically used?
In industrial automation systems for monitoring AC input devices such as switches and sensors with isolation requirements.
