Technical Specifications
| Specification | Details |
|---|---|

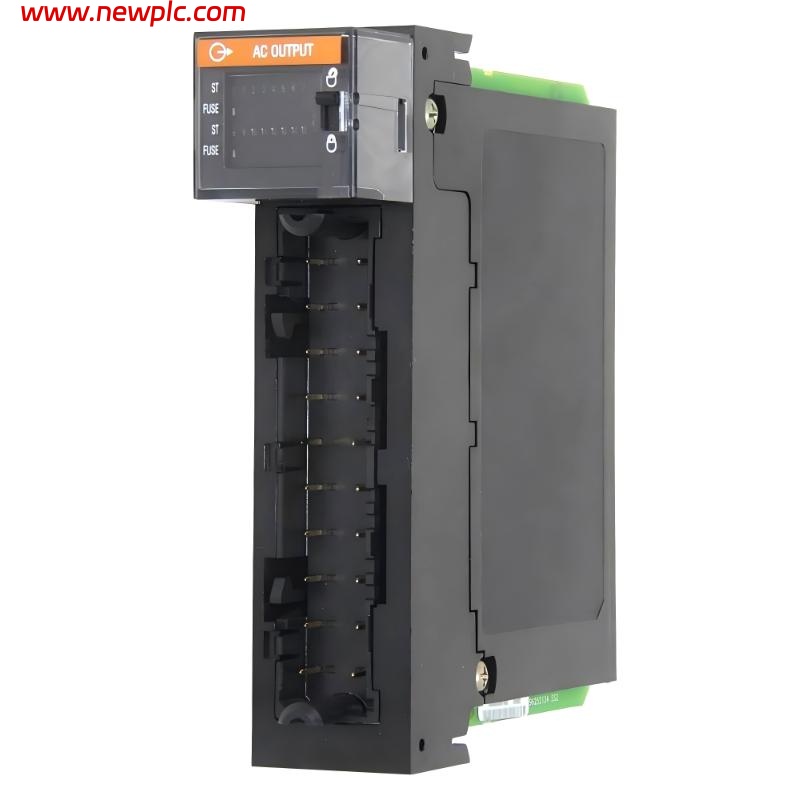

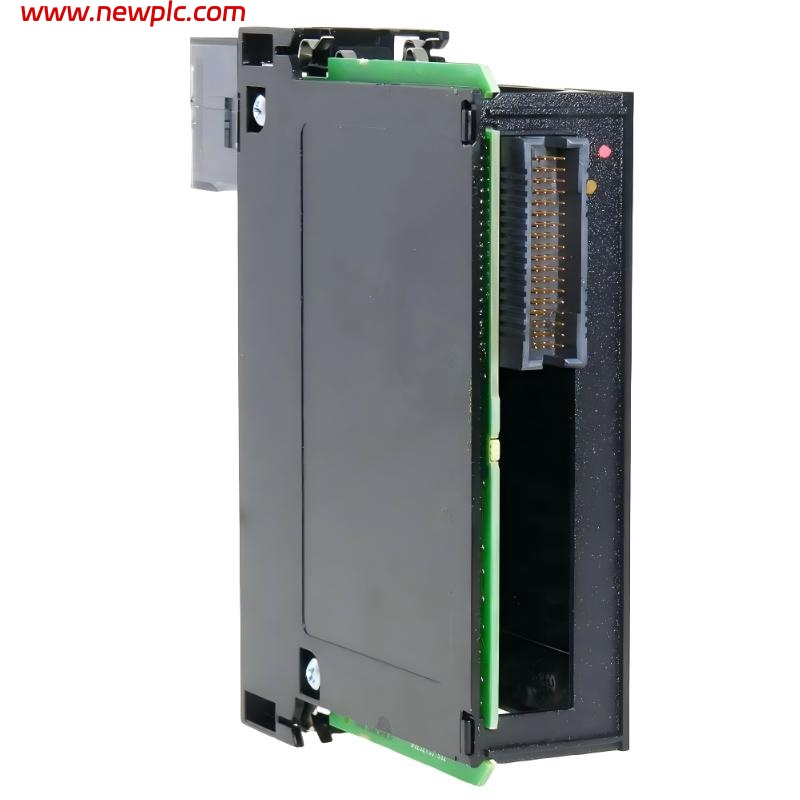

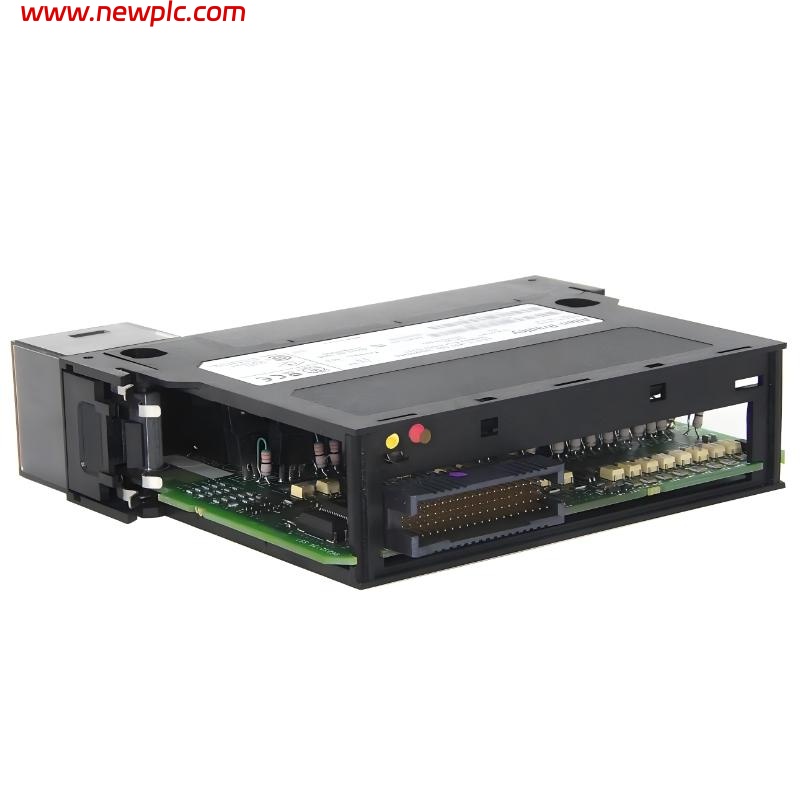

| Product Name | Allen-Bradley 1756-OA16 ControlLogix Digital AC Output Module |
| Module Type | Digital AC Output Module |
| Series | ControlLogix |
| Number of Outputs | 16 points (mechanically fused, 2 groups of 8) |
| Output Voltage Range | 74–265 VAC, 47–63 Hz |
| Voltage Category | 120/240 VAC |
| Output Configuration | Grouped outputs (2 groups, 8 channels each) |
| Backplane Current (5.1 VDC) | ~400 mA |
| Backplane Current (24 VDC) | ~2 mA |
| Power Dissipation | ~2.1 W |
| Connection Type | 20-pin removable terminal block |
| Mounting | Installed in ControlLogix chassis slot |
| Operating Temperature Range | 0 °C to 60 °C (typical ControlLogix spec) |
| Storage Temperature Range | −40 °C to 85 °C (typical) |
| Relative Humidity (Non-condensing) | 5 % to 95 % |
| Enclosure Type | Open-type (chassis mounted) |
| Dimensions (H × W × D) | 54 mm × 184 mm × 224 mm |
| Weight | ~0.38 kg |
FAQ
FAQ
Q1: What is the main function of the 1756-OA16 module?
It provides 16 AC digital output channels for controlling field devices such as relays, lamps, and contactors.
Q2: How are the outputs organized?
The module has 16 outputs divided into two groups of 8 channels, each group mechanically fused.
Q3: What voltage range does this module support?
It operates within 74–265 VAC at 47–63 Hz.
Q4: What type of loads can it drive?
It is suitable for AC loads like relays, solenoids, and indicator lights.
Q5: Does the module consume significant backplane power?
No, it draws about 400 mA at 5.1 VDC and very low current at 24 VDC.
Q6: How is the module installed?
It is inserted into a ControlLogix chassis slot and connects via a removable terminal block.
Q7: What are the environmental limits?
It operates from 0 °C to 60 °C with storage down to −40 °C and up to 85 °C.
Q8: What are the size and weight of the module?
The module measures 54 mm × 184 mm × 224 mm and weighs approximately 0.38 kg.
