Technical Specifications
| Parameter | Specification |
|---|---|

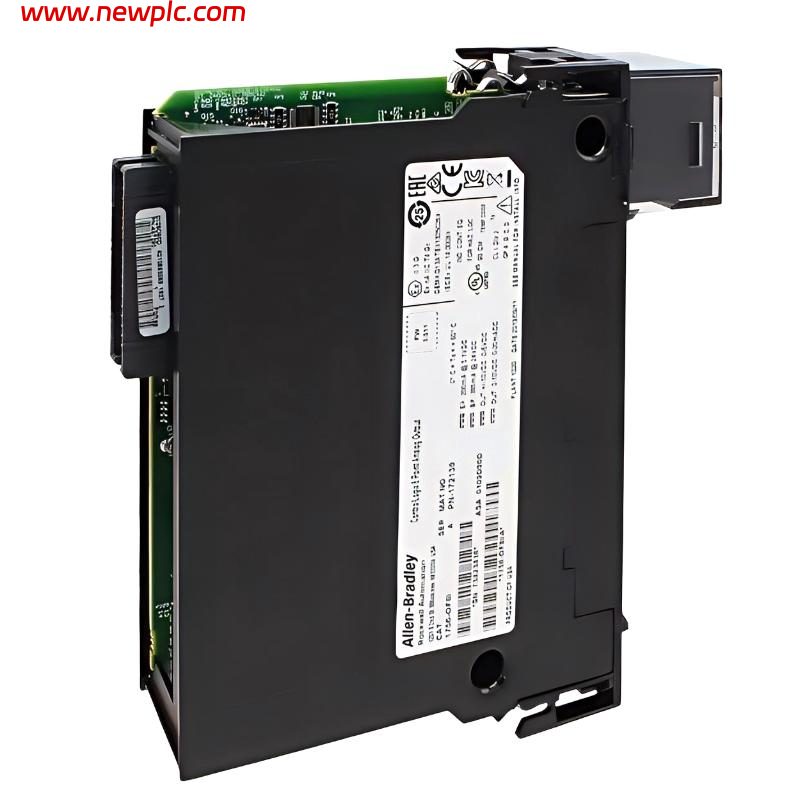

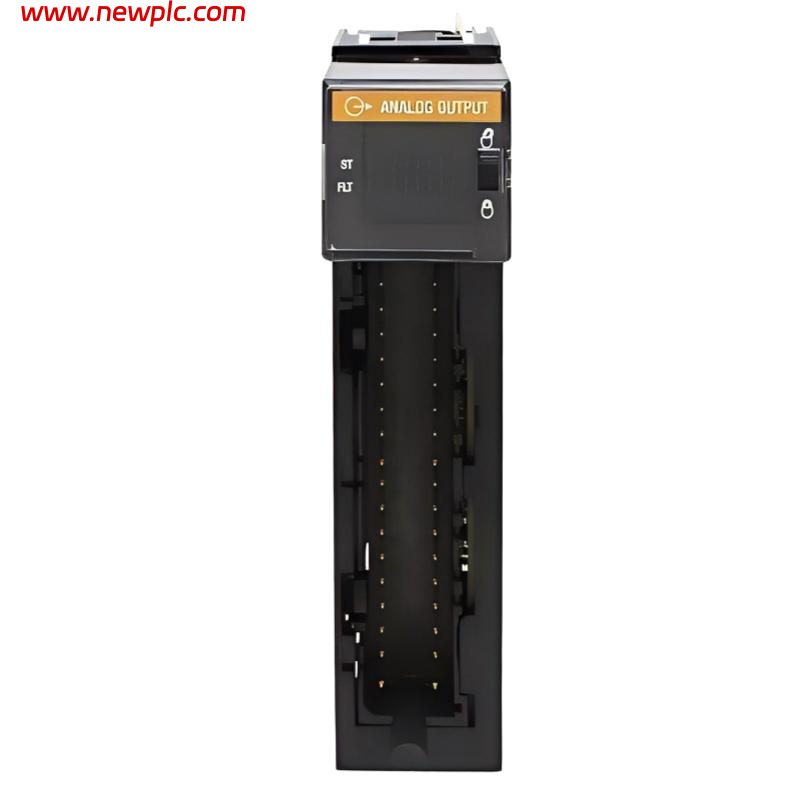

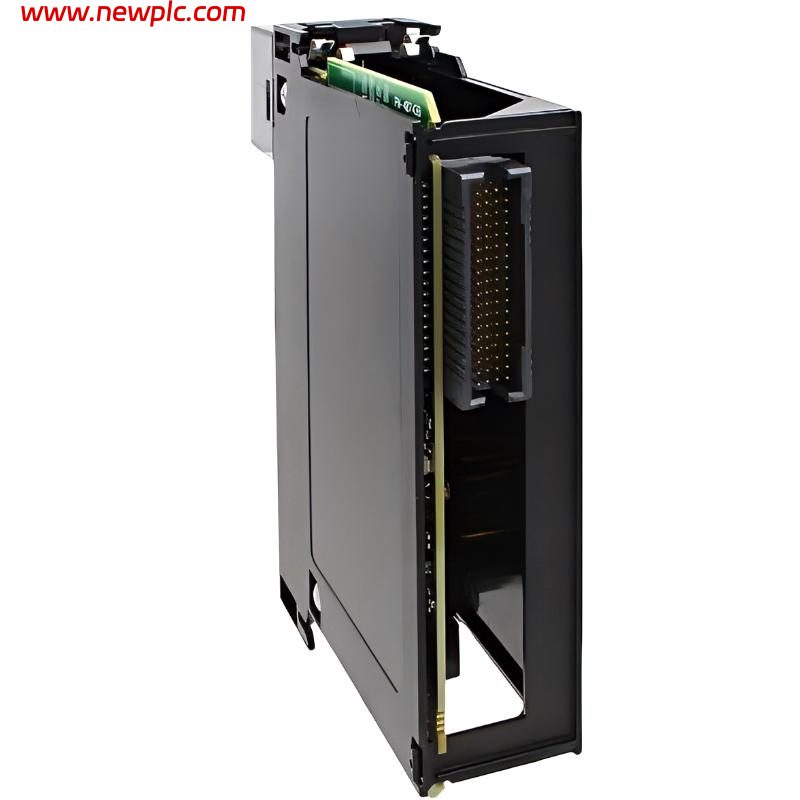

| Product Name | Allen-Bradley 1756-OF8IHK |
| Product Type | ControlLogix Analog Output Module (HART) |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | ControlLogix 1756 |
| Module Function | Analog Current Output |
| Number of Channels | 8 outputs |
| Output Signal Range | 0–20 mA / 4–20 mA |
| Output Type | Current sourcing, HART-capable |
| Resolution | ~15-bit (typical across 24 mA range) |
| Accuracy | Approx. ±0.15% @ 25°C (typical) |
| HART Support | Yes |
| Isolation Voltage | 250 V continuous (reinforced insulation, backplane isolation) |
| Load Resistance | Approx. 50–750 Ω |
| Output Protection | Electronic current limiting (short-circuit protection) |
| Update Time | < 23 ms (HART disabled), up to ~100 ms (HART enabled) |
| Backplane Current | Approx. 220 mA @ 5.1 V DC |
| Power Dissipation | Approx. 6.5 W |
| Wiring Type | 2-wire shielded copper, terminal block |
| Terminal Base | 1756-TBCH / 1756-TBS6H compatible |
| Module Keying | Electronic / software configurable |
| Conformal Coating | Yes |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock / Vibration | Industrial IEC-rated (up to 30G shock operating) |
| Mounting Type | ControlLogix chassis slot-mounted |
| Dimensions | Approx. 145 × 140 × 105 mm |
| Weight | Approx. 0.9–1.1 kg |
| Certifications | CE, UL, CSA, ATEX, KC, RCM |
FAQ
FAQ
Q1: What is the 1756-OF8IHK used for?
It is an 8-channel analog current output module used in ControlLogix systems to drive field devices such as valves, actuators, and process instrumentation.
Q2: Does it support HART communication?
Yes, it supports HART protocol for bidirectional communication with smart field devices.
Q3: What signal range does it output?
It outputs standard industrial current signals of 4–20 mA and 0–20 mA.
Q4: How many channels does it have?
The module provides 8 independently controlled analog output channels.
Q5: What type of loads can it drive?
It can drive loads typically in the 50 to 750 ohm range, depending on configuration.
Q6: Is the module isolated?
Yes, it provides reinforced isolation (250 V continuous) between outputs and backplane.
Q7: What is the typical accuracy?
It has a typical accuracy of about ±0.15% at 25°C under standard conditions.
Q8: Where is this module commonly used?
It is commonly used in process control industries such as oil & gas, chemical plants, and industrial automation systems requiring precise analog control.
