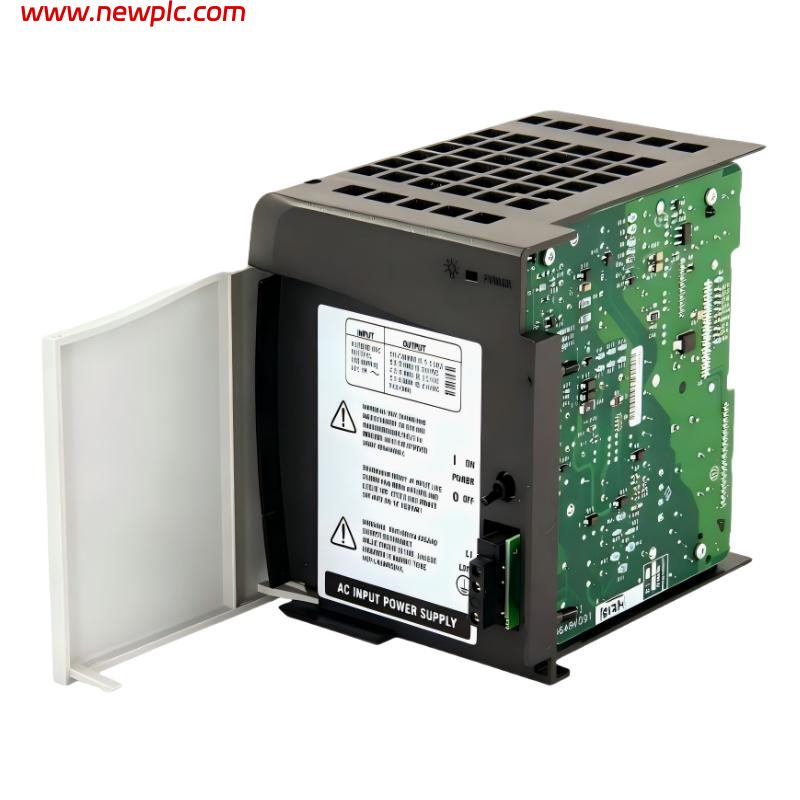

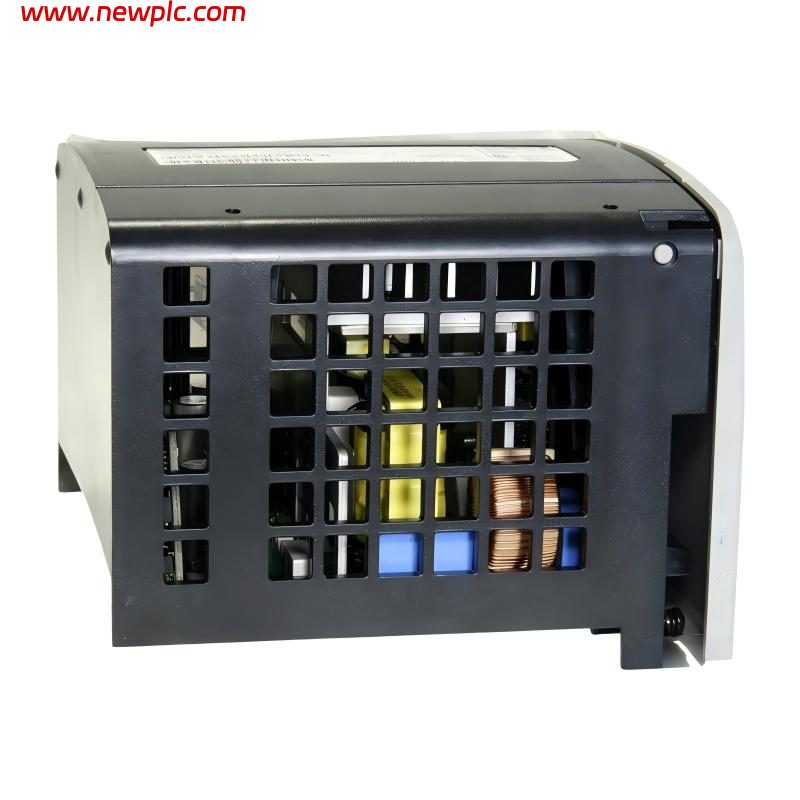

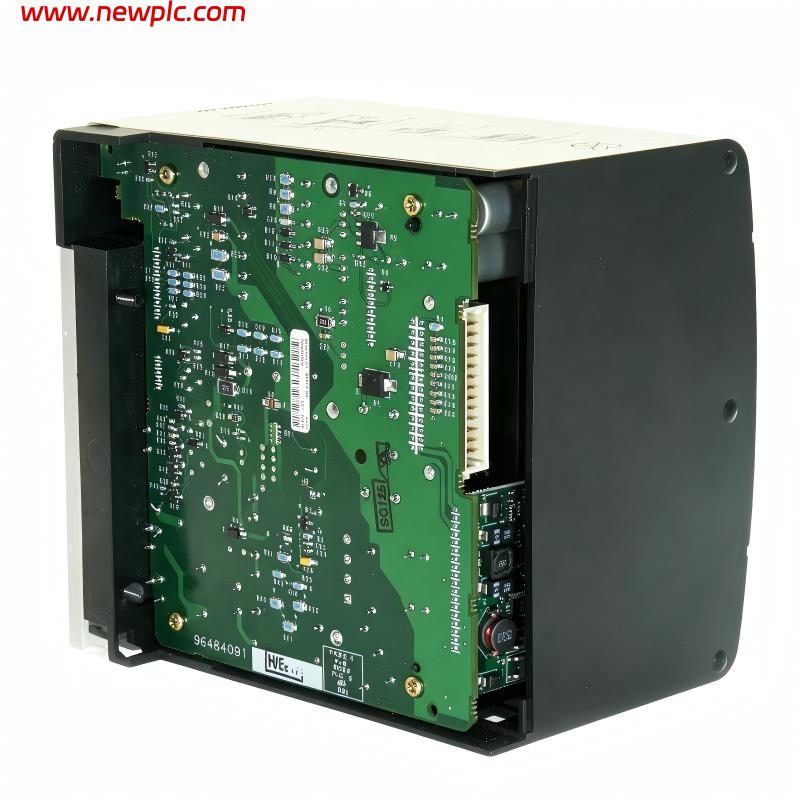

Allen Bradley 1756-PA72/C ControlLogix AC Power Supply

FAQ

Q1: What is the Allen-Bradley 1756-PA72/C?
A: It is a ControlLogix AC power supply that provides DC power to the ControlLogix chassis backplane.

Q2: What input voltage does the 1756-PA72/C support?
A: It supports 85–265V AC, with nominal input voltages of 120V AC or 240V AC.

Q3: What is the maximum output power?
A: The maximum combined output power is 75 W.

Q4: What is the 5.1V DC output capacity?
A: The 1756-PA72/C provides up to 10A at 5.1V DC.

Q5: Where is the 1756-PA72/C installed?
A: It mounts on the left side of a compatible ControlLogix chassis.

Q6: What is the maximum inrush current?
A: The maximum inrush current is 20A.

Q7: What is the operating temperature range?
A: The operating temperature range is 0 to 60°C, with a storage range of −40 to +85°C.

Q8: What are the dimensions and weight?
A: The approximate dimensions are 140 × 112 × 145 mm, and the weight is approximately 0.95 kg.
