Technical Specifications
| Specification | Details |
|---|---|

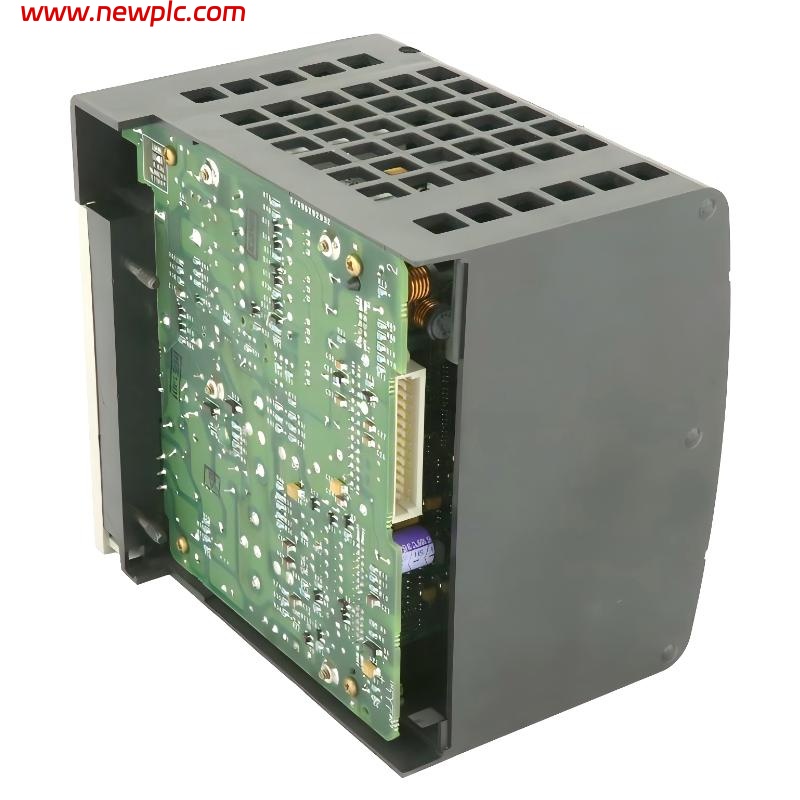

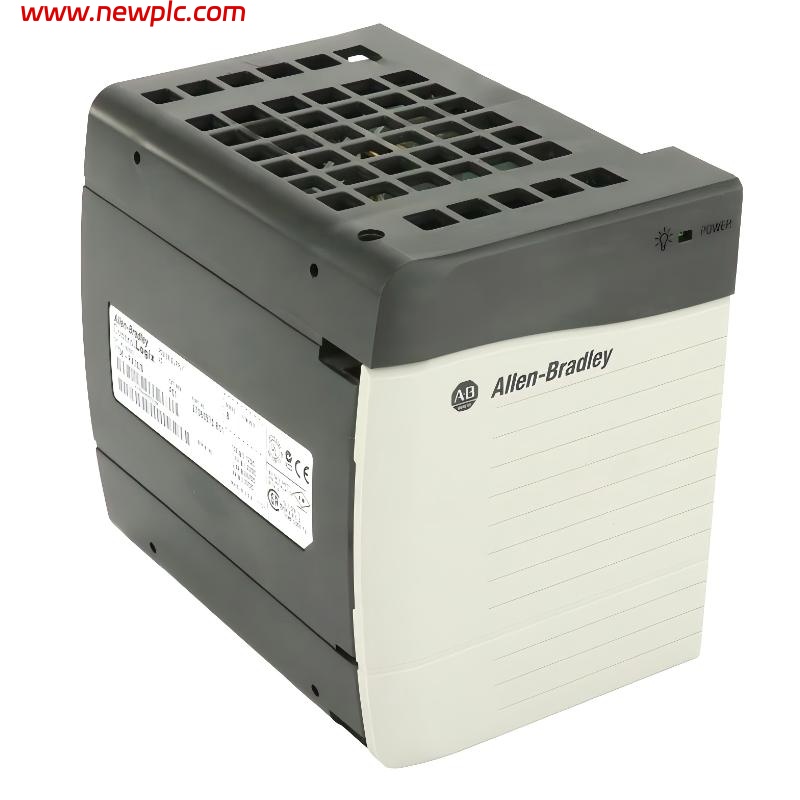

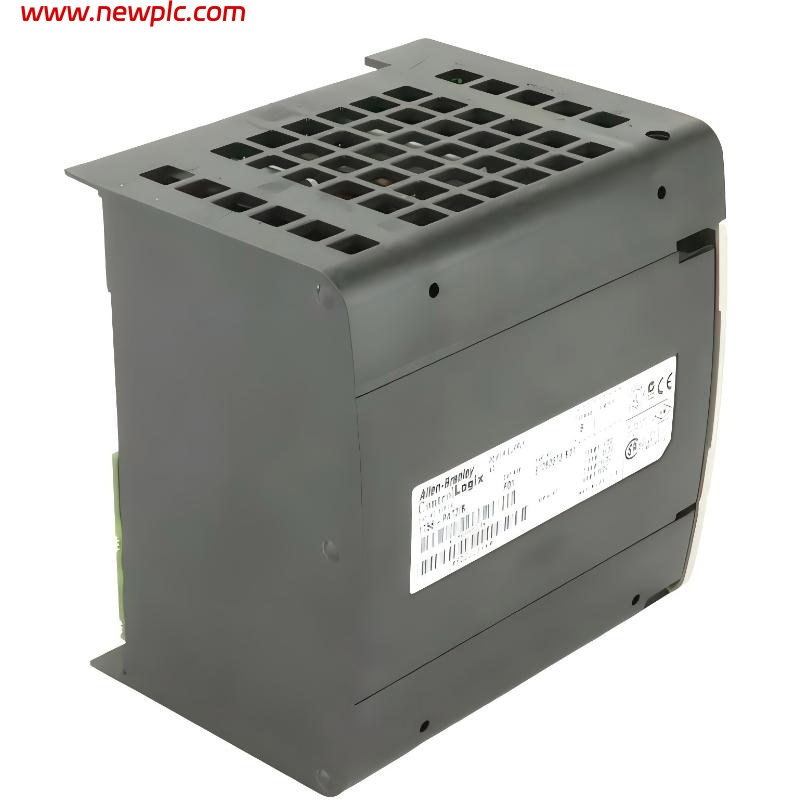

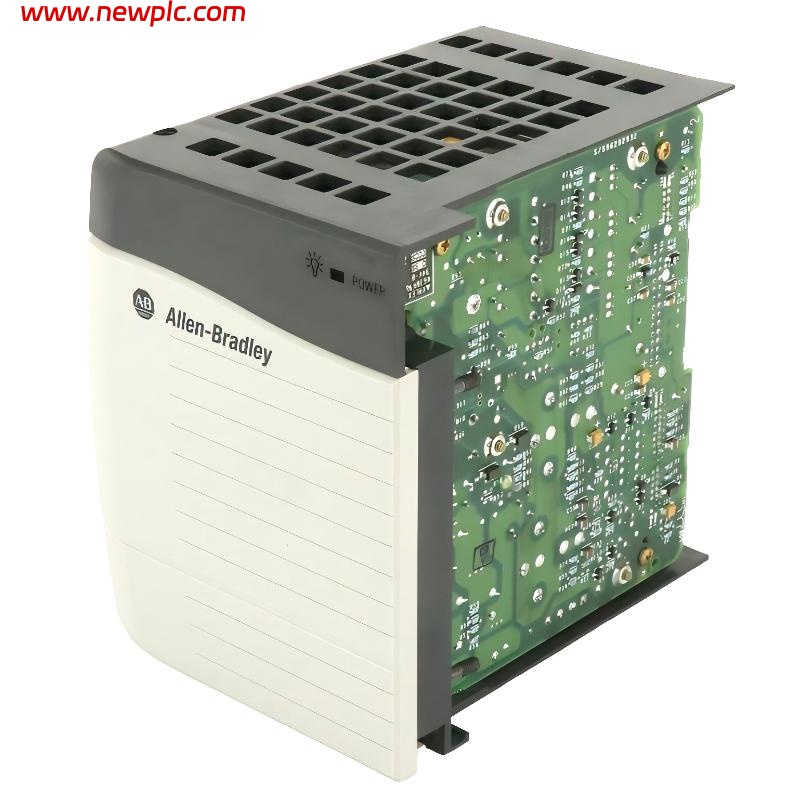

| Product Name | Allen‑Bradley 1756‑PA72 ControlLogix Power Supply |
| Module Type | Power supply module for ControlLogix chassis |
| Series | ControlLogix 1756 I/O family |
| Input Voltage Range | 85 – 264 VAC or 90 – 125 VDC |
| Input Frequency | 47 – 63 Hz (AC) |
| Input Current | ~8.5 A @ 120 VAC |
| Output Voltage | 24 V DC |
| Output Current | 7.2 A |
| Output Power | ~172.8 W |
| Efficiency | Typical industrial switching efficiency |
| Power Factor | ~0.95 typical (AC input) |
| Hold‑up Time | ~10 ms @ full load |
| Protections | Overload, overvoltage, short circuit, overtemperature |
| Indicators | LED for status (OK/fault) |
| Backplane Slot Width | 2 slots wide |
| Mounting | ControlLogix chassis mount |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | –40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Dimensions (H × W × D) | ~178 mm × 79 mm × 158 mm |
| Weight | ~1.5 kg |
FAQ
FAQ
Q1: What is the purpose of the 1756‑PA72 module?
It supplies 24 V DC power to a ControlLogix chassis and its installed I/O and processor modules.
Q2: What input voltages are supported?
It supports a wide AC range (85–264 VAC) and DC input (90–125 VDC).
Q3: How much output current can it deliver?
It provides up to 7.2 A of 24 V DC output current.
Q4: What protections are included?
It includes overload, overvoltage, short circuit, and overtemperature protection.
Q5: Does it indicate status?
Yes, LED indicators show normal and fault conditions.
Q6: What output power does the supply provide?
It can deliver approximately 172.8 W at full rated output.
Q7: How is this power supply mounted?
It mounts directly into a ControlLogix chassis occupying two backplane slots.
Q8: What are the physical size and weight of the module?
It measures about 178 mm × 79 mm × 158 mm and weighs around 1.5 kg.
