Technical Specifications
| Specification | Parameter |
|---|---|
| Part Number / Model | 1756‑PBXT |

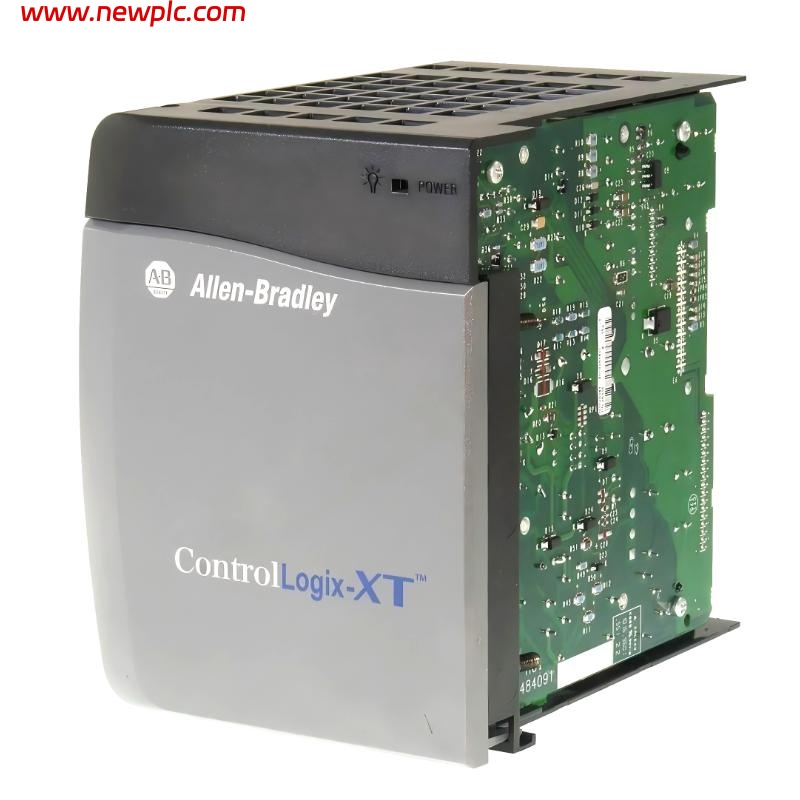

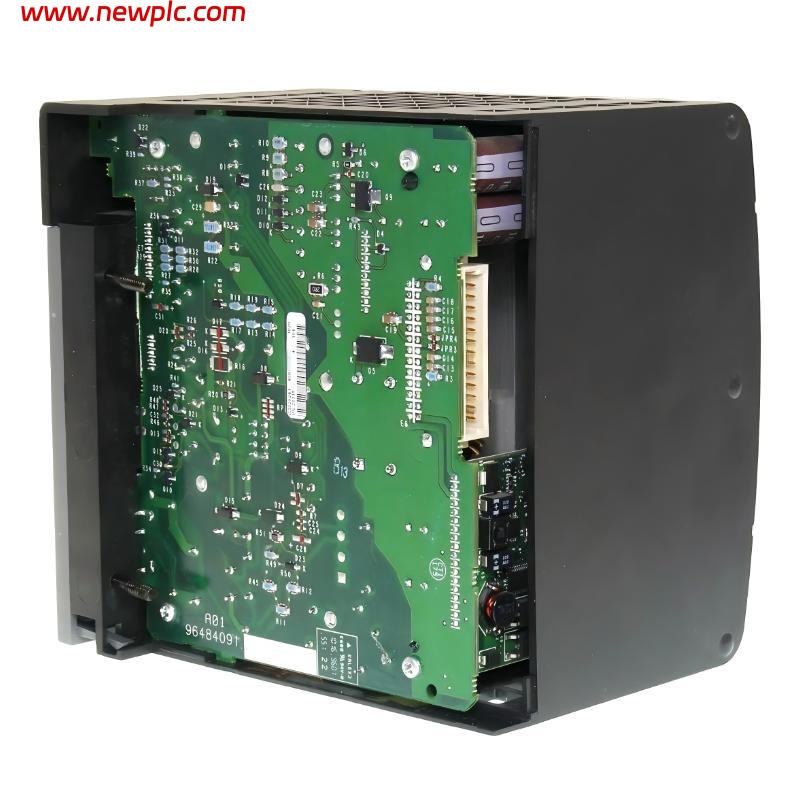

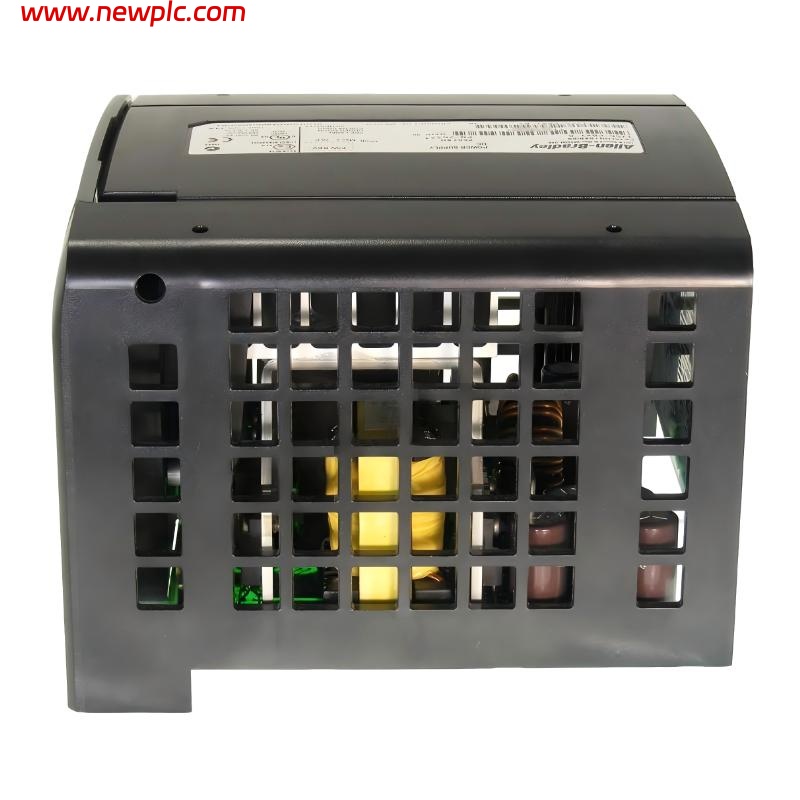

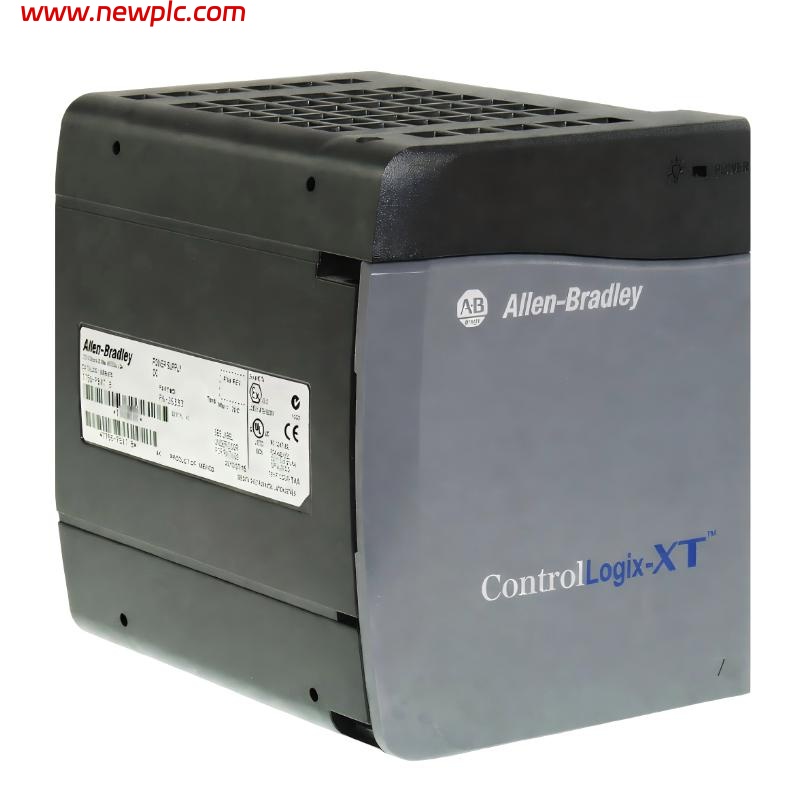

| Module Type | ControlLogix‑XT DC Power Supply |
| Nominal Input Voltage | 24 V DC |
| Input Voltage Range | 18–32 V DC |
| Maximum Input Power | 70 W |
| Maximum Output Power | 52 W |
| Output Voltages & Currents | 5 V DC @ 8 A; 3.3 V DC @ 4 A; 1.2 V DC @ 1.5 A; 24 V DC @ 1.75 A |
| Isolation Voltage | 250 V continuous |
| Operating Temperature | –25 °C to 70 °C (–13 °F to 158 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | 30 G shock; 2 G @ 10–500 Hz vibration |
| Enclosure Type | Open‑style (no enclosure) |
| Dimensions (H × W × D) | ~140 mm × 112 mm × 145 mm (5.51″ × 4.41″ × 5.71″) |
| Weight | ~0.95 kg (2.10 lb) |
FAQ
FAQ
Q1: What is the 1756‑PBXT used for?
It is a DC power supply module designed for ControlLogix‑XT systems, supplying DC power to the chassis.
Q2: What input voltage range does the PBXT support?
It supports a DC input range of 18–32 V with a nominal 24 V DC.
Q3: How much output power does the PBXT deliver?
It provides up to 52 W of total output power.
Q4: Which voltage rails and currents does it provide?
It delivers multiple voltage rails: 5 V @ 8 A, 3.3 V @ 4 A, 1.2 V @ 1.5 A, and 24 V @ 1.75 A.
Q5: What are the environmental operating conditions?
The module operates in temperatures from –25 °C to 70 °C and humidity 5–95 % non‑condensing.
Q6: Does the PBXT have redundancy capability?
No, it is a single DC supply for XT chassis and does not support redundant power sharing.
Q7: How big and heavy is this power supply module?
Its dimensions are approximately 140 mm × 112 mm × 145 mm and it weighs about 0.95 kg.
Q8: What type of chassis is the PBXT compatible with?
It is compatible with ControlLogix‑XT chassis designed for extended temperature operation.
