Technical Specifications
| Specification | Parameter |
|---|---|
| Part Number / Model | 1756‑RM2 |

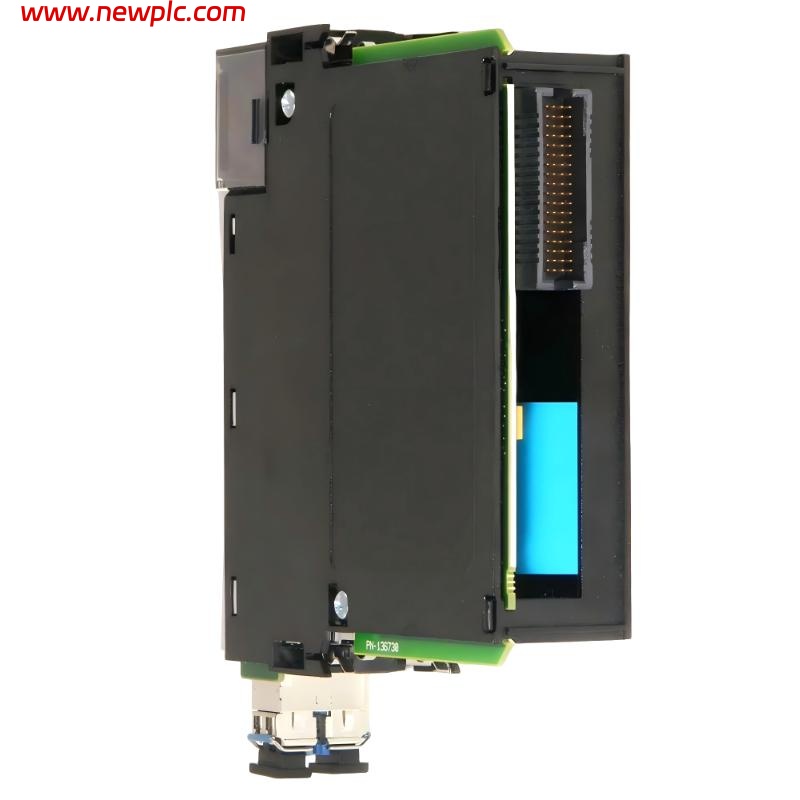

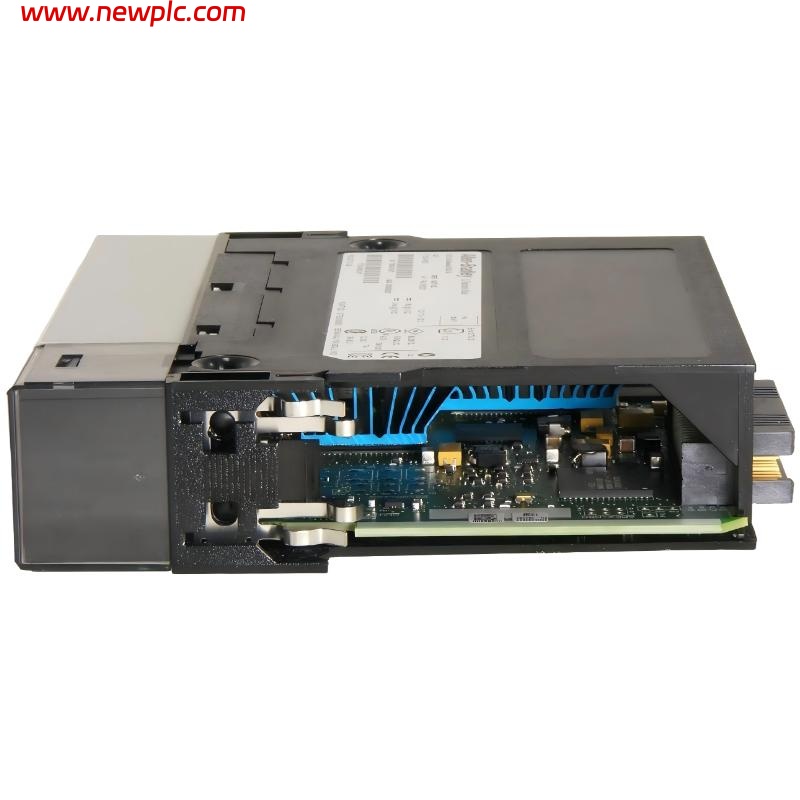

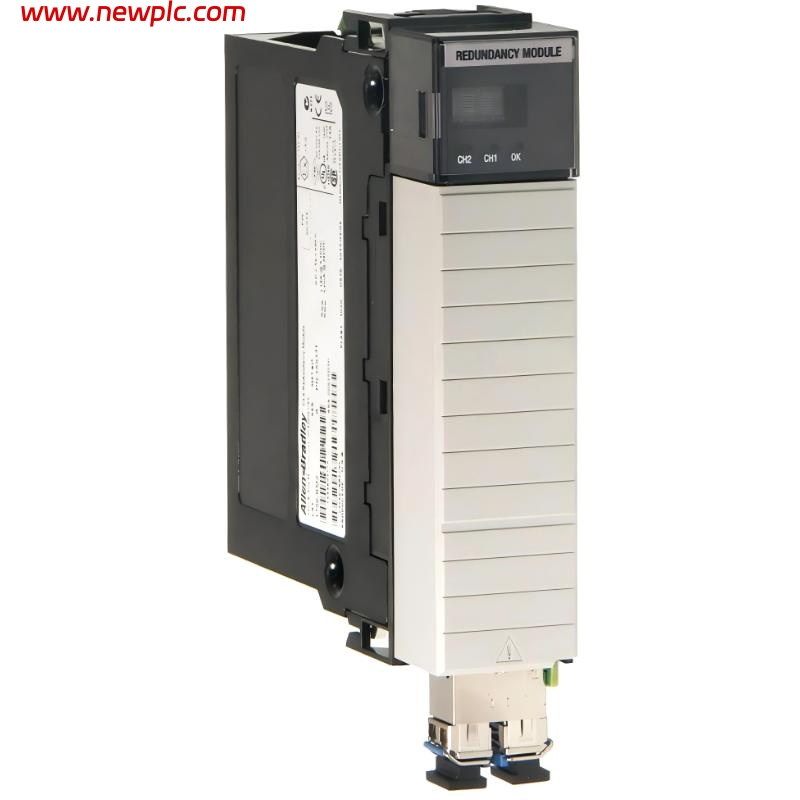

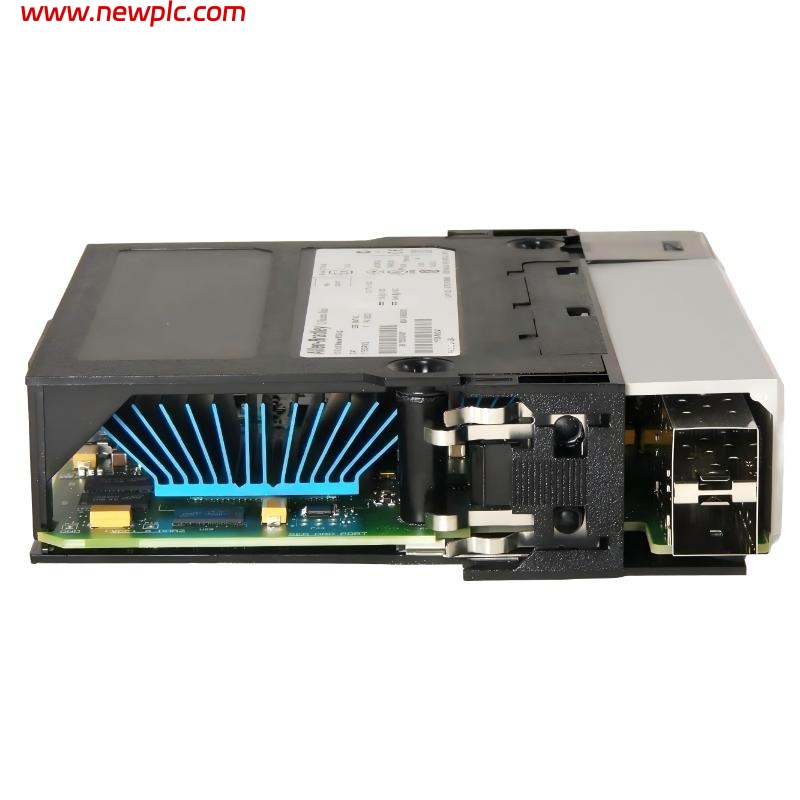

| Module Type | ControlLogix Redundancy Enhanced Module |
| Function | Provides redundancy support by linking two ControlLogix chassis for synchronized operation |
| Connector Type | LC fiber‑optic connectors, single‑mode |
| Connector Cable Options | 1756‑RMC1 (1 m), 1756‑RMC3 (3 m), 1756‑RMC10 (10 m) |
| Current Draw @ 5.1 V DC | 1.16 A |
| Current Draw @ 24 V DC | ~3.4 mA |
| Power Dissipation | ~6 W (max) |
| Thermal Dissipation | ~21 BTU/hr |
| Slot Width | 1 slot |
| Module Location | Any chassis slot |
| Supported Chassis | ControlLogix A, B and XT series (e.g., 1756‑A4, A7, A10, etc.) |
| Supported Controllers | ControlLogix 5560 / 5570 families |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Shock & Vibration | Standard industrial shock and vibration ratings |
| Enclosure Type | Open‑style (no enclosure) |
| Dimensions (L × W × H) | Approx. 140 mm × 40 mm × 145 mm (5.51″ × 1.57″ × 5.71″) |
| Weight | ~0.29 kg (0.64 lb) |
FAQ
FAQ
Q1: What is the 1756‑RM2 used for?
It enables high‑availability redundancy by synchronizing two ControlLogix chassis for fault tolerance.
Q2: How does the redundancy connection work?
Redundancy is achieved via fiber‑optic cables between two 1756‑RM2 modules in separate chassis.
Q3: Which controllers does it support?
It is designed for ControlLogix 5560 and 5570 family controllers.
Q4: What type of cables are used with this module?
It uses LC fiber‑optic connector cables such as 1756‑RMC1, RMC3, or RMC10.
Q5: Can the module be installed in any slot?
Yes, it occupies one chassis slot and can be placed in any available position.
Q6: What are the environmental operating conditions?
Typical industrial operation is between 0 °C and 60 °C with 5 %–95 % non‑condensing humidity.
Q7: Does the module contain active power electronics?
No, it mainly handles data synchronization and redundancy management; power draw is minimal.
Q8: What are the physical size and weight of the module?
The module is compact (around 140 mm × 40 mm × 145 mm) and weighs about 0.29 kg.
