Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Allen-Bradley 1756-RMC10 |

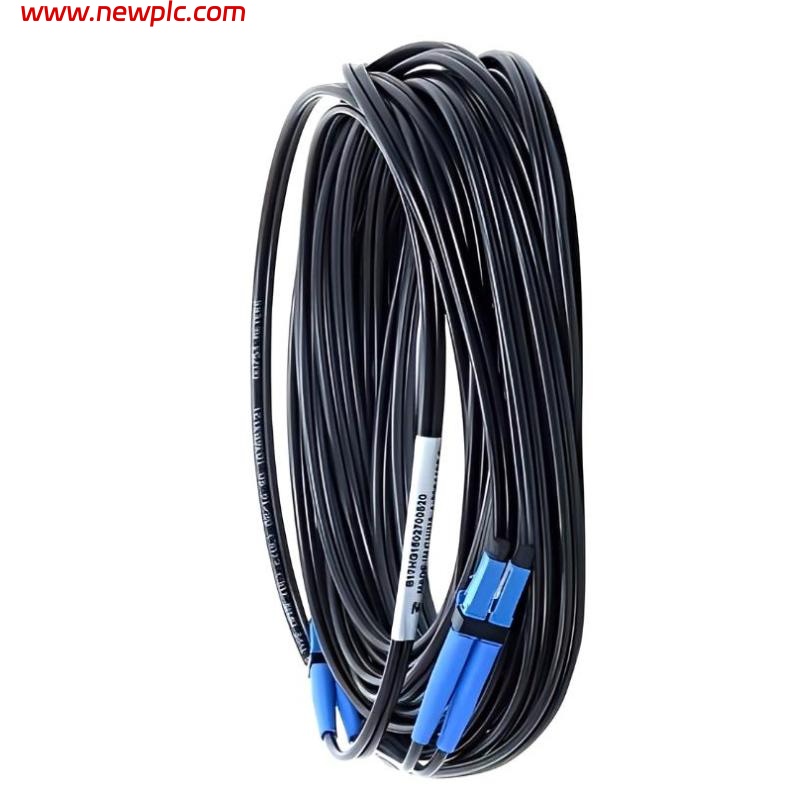

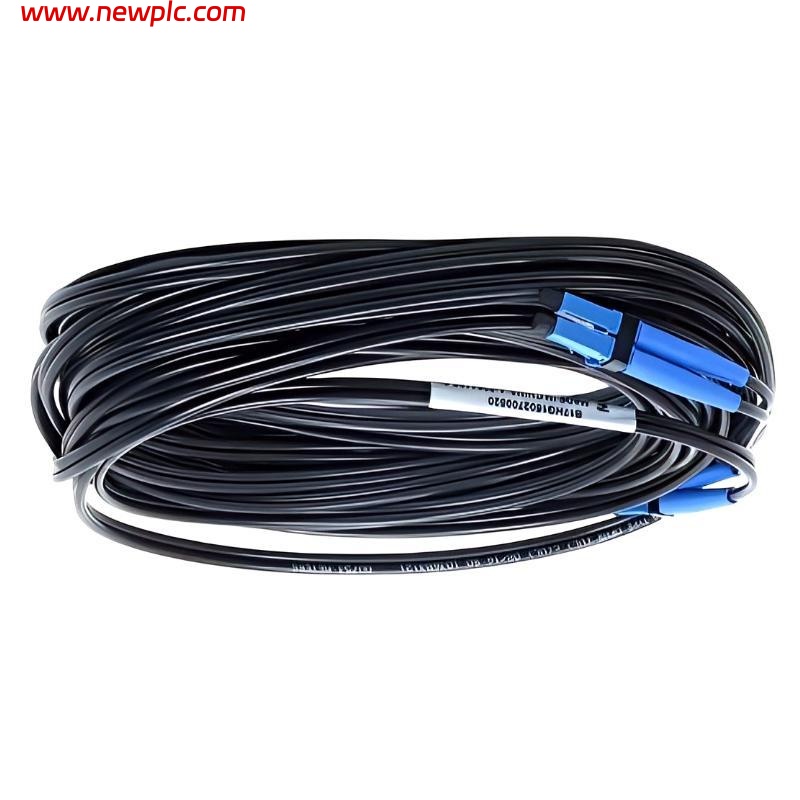

| Product Type | ControlLogix RM Fiber Optic Cable |
| Series | ControlLogix |
| Cable Type | Fiber Optic Redundancy Cable |
| Cable Length | 10 meters (32.8 ft) |
| Application | Redundancy Module Communication |
| Compatible Modules | 1756-RM, 1756-RM2, 1756-RMXT, 1756-RM2XT |
| Fiber Type | Duplex Fiber Optic |

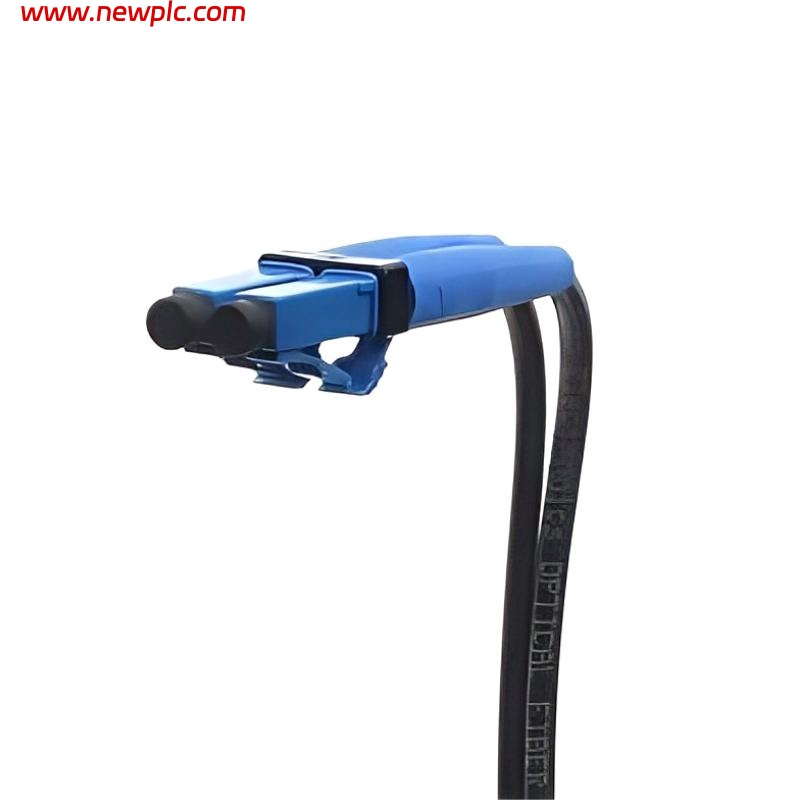

| Connector Type | LC Fiber Connectors |
| Transmission Wavelength | 1300 nm |
| Communication Speed | High-Speed Redundancy Synchronization |
| Number of Channels | 1 Duplex Channel |
| Minimum Bend Radius | Approx. 50 mm |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Enclosure Rating | Open Type |
| Installation Use | Chassis-to-Chassis Redundancy Link |
| Dimensions (Packaged Approx.) | 140 × 112 × 145 mm |
| Weight | Approx. 0.4 kg |
| Certifications | UL, CE, CSA |
| Product Lifecycle | Active |
FAQ
FAQ
Q1: What is the function of the 1756-RMC10 cable?
The 1756-RMC10 is a duplex fiber optic cable used to connect redundant ControlLogix controller chassis through redundancy modules.
Q2: What is the cable length of the 1756-RMC10?
The cable length is 10 meters (32.8 feet).
Q3: Which modules are compatible with this cable?
It is compatible with 1756-RM, 1756-RM2, 1756-RMXT, and 1756-RM2XT redundancy modules.
Q4: What type of communication media does the cable use?
The cable uses duplex fiber optic communication technology with LC connectors for high-speed synchronization.
Q5: What is the purpose of redundancy in a ControlLogix system?
Redundancy allows a backup controller chassis to automatically take control if the primary chassis fails, minimizing downtime.
Q6: What operating temperature range does the cable support?
The supported operating temperature range is approximately -25°C to +70°C.
Q7: What are the approximate packaged dimensions?
Approximate packaged dimensions are 140 mm (H) × 112 mm (W) × 145 mm (D).
Q8: Is the 1756-RMC10 still available?
Yes. Rockwell Automation currently lists the 1756-RMC10 as an active product.
