Technical Specifications
| Specification | Parameter |
|---|---|
| Part Number / Model | 1756‑TBE |

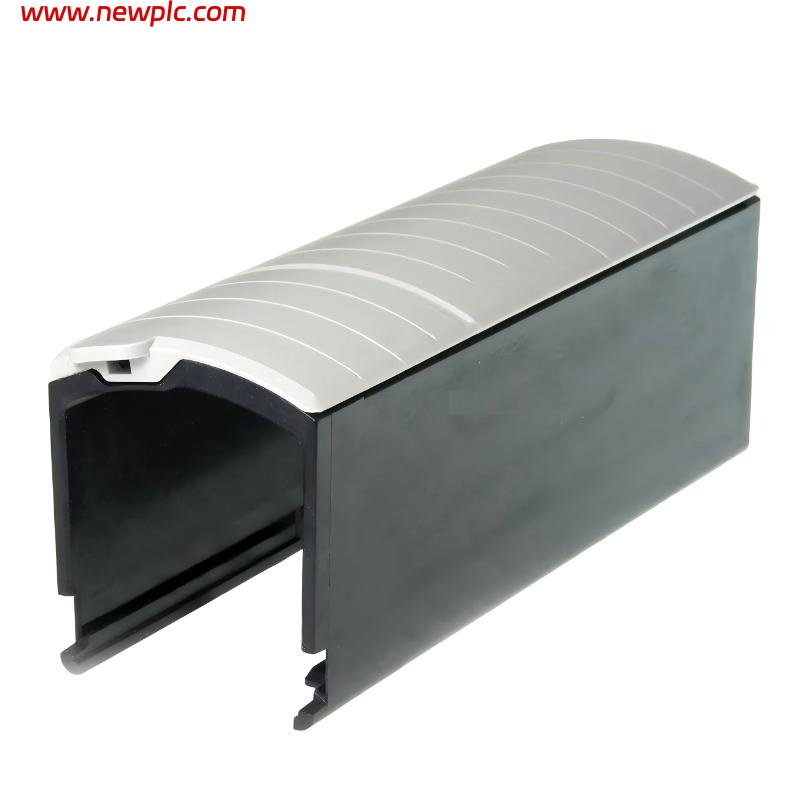

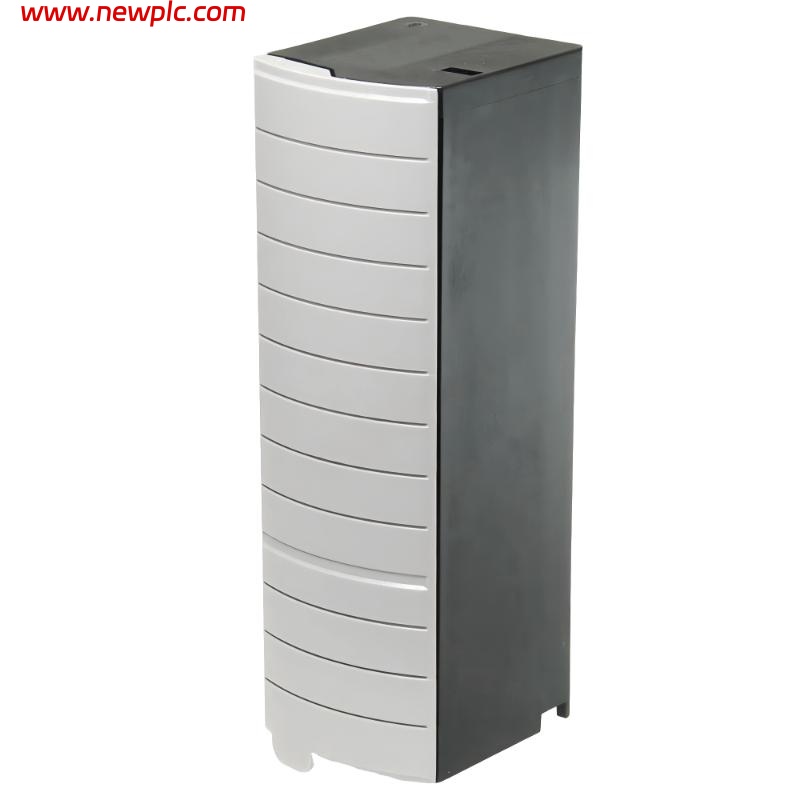

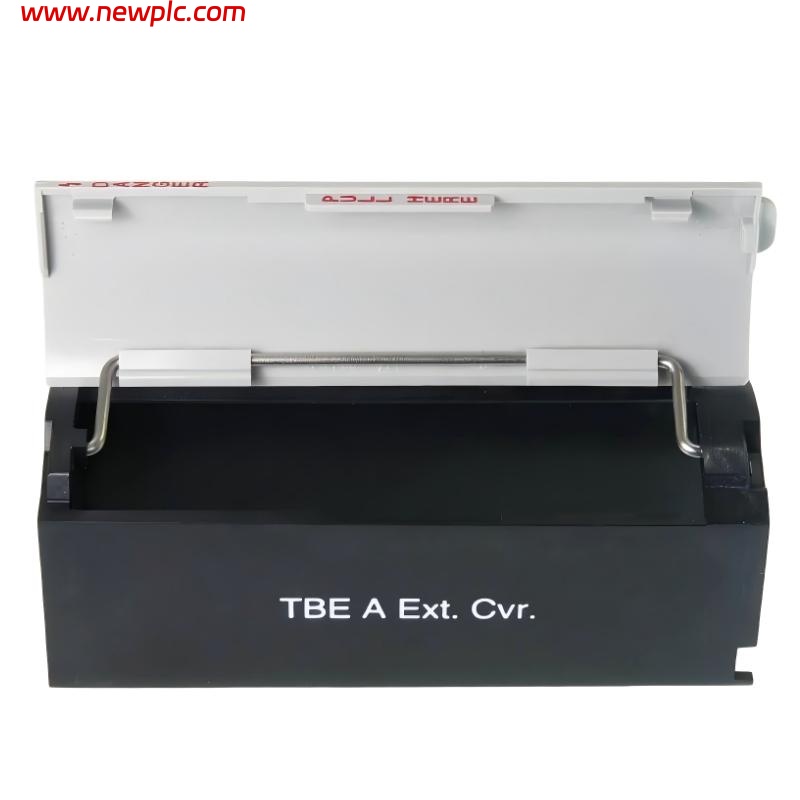

| Module Type | Extended‑Depth Terminal Block Housing |
| System Compatibility | ControlLogix 1756 series removable terminal blocks |
| Function | Provides additional depth and space for heavy‑gauge wiring connections at a removable terminal block |
| Pin Count | 36‑pin terminal block interface |
| Wire Size Supported | Suitable for heavier gauge wiring when paired with appropriate RTB |
| Backplane Current (5 V) | ~1,200 mA |
| Backplane Current (24 V) | ~2.5 mA |
| Power Dissipation (Max) | ~6.19 W |
| Operating Temperature | 0–60 °C (32–140 °F) |
| Storage Temperature | –40–85 °C |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | Standard industrial ratings |
| Enclosure Type | None (open terminal housing) |
| Dimensions (Approx.) | 140 mm × 112 mm × 145 mm (5.51″ × 4.41″ × 5.71″) |
| Extended Depth from Module Front | ~157 mm (6.20″) depth including housing and block |
| Weight | ~0.11 kg (0.25 lbs) |
FAQ
FAQ
Q1: What is the purpose of the 1756‑TBE housing?
It provides additional physical depth for wiring connections on a removable terminal block, accommodating heavier gauge wires.
Q2: Can the 1756‑TBE be used with all ControlLogix I/O modules?
Yes — it is designed to work with compatible removable terminal block accessories in the 1756 I/O family.
Q3: What type of wiring does the 1756‑TBE support?
When installed with the correct RTB, it supports heavier gauge wiring beyond what the standard housing allows.
Q4: Does this part include electronics?
No — it is a protective housing accessory with no active electronics.
Q5: What are the operating temperature limits?
It is rated for industrial environments from 0 °C to 60 °C.
Q6: Does the extended housing change the terminal block pin count?
No — the pin count remains 36, consistent with the removable terminal block it houses.
Q7: How much extra depth does this housing provide?
It increases depth relative to standard housings to allow for more wiring space.
Q8: What are the physical dimensions and weight?
Typical dimensions are ~140 mm × 112 mm × 145 mm, and it weighs about 0.11 kg.
