Technical Specifications
| Specification | Parameter |
|---|---|

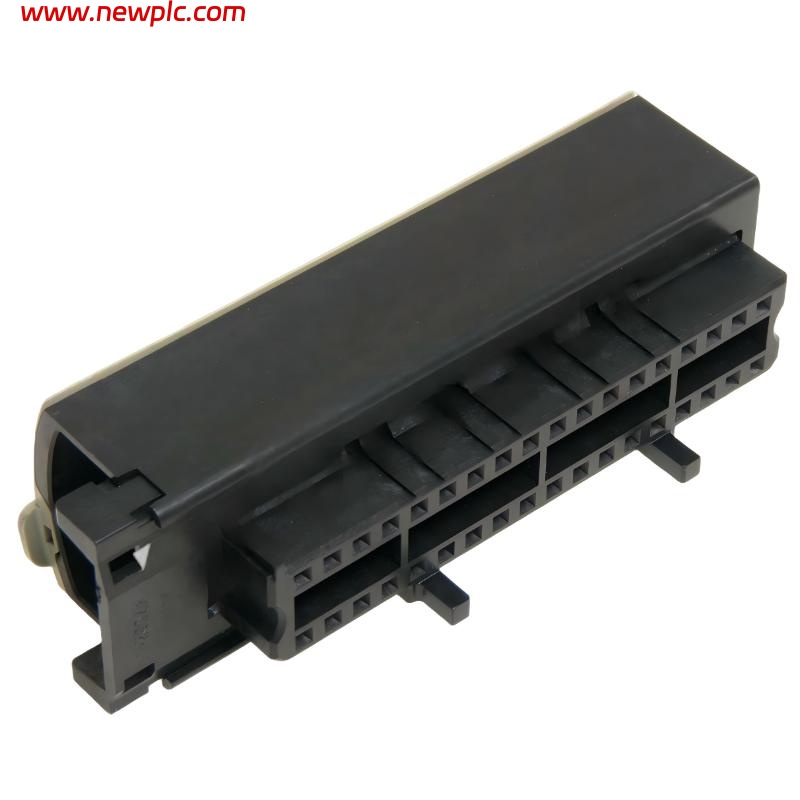

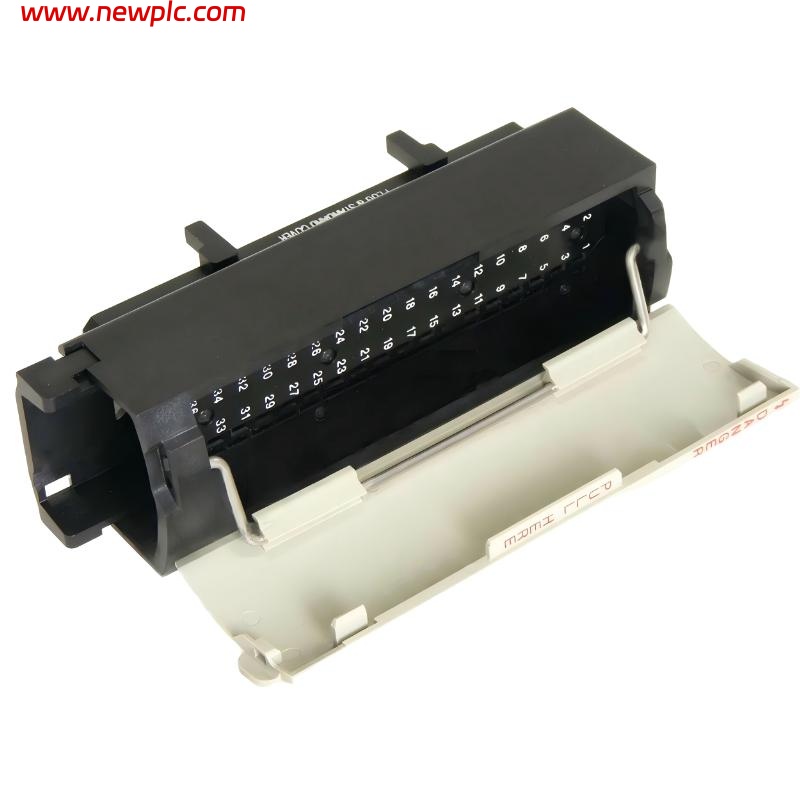

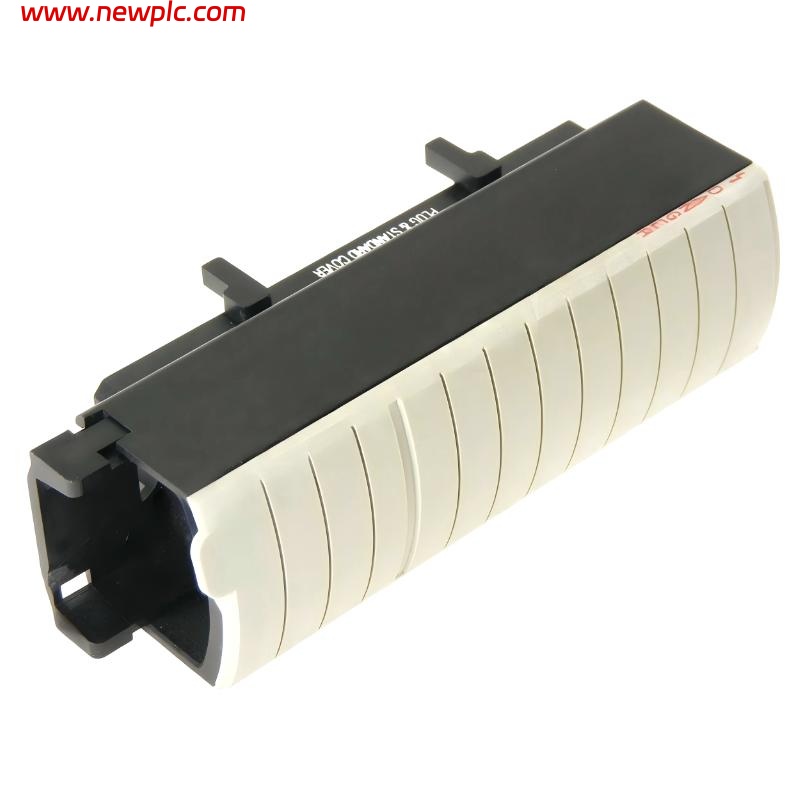

| Part Number / Model | 1756‑TBS6H |
| Accessory Type | Removable Terminal Block Housing |
| System Compatibility | ControlLogix 1756 I/O modules |
| Pin Count | 36 |
| Terminal Block Type | Screw‑clamp removable terminal block |
| Wire Connection Range (Single) | 0.33–2.1 mm² (22–14 AWG) |
| Wire Connection Range (Double) | 0.33–1.3 mm² (22–16 AWG) |
| Screw Torque | ~0.5 Nm (4.4 lb‑in) |
| Wire Type Supported | Solid or stranded copper wire |
| Mounting Interface | Front‑mounts to compatible 1756 I/O modules |
| Operating Temperature | 0–60 °C |
| Storage Temperature | –40–85 °C |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | Industrial‑rated shock and vibration |
| Enclosure Requirements | None (accessory only) |
| Dimensions (Approx.) | ~140 mm × 112 mm × 145 mm |
| Weight | ~0.14 kg |
FAQ
FAQ
Q1: What is the 1756‑TBS6H used for?
It provides a removable, screw‑clamp terminal block housing for ControlLogix I/O connections.
Q2: How many connections does this terminal block support?
It supports 36 wiring connections.
Q3: What wire sizes can be used?
It accepts single wires 0.33–2.1 mm² (22–14 AWG) and double wires 0.33–1.3 mm² (22–16 AWG).
Q4: What types of wires are supported?
Both solid and stranded copper wire are supported.
Q5: How is this accessory installed?
It front‑mounts onto compatible ControlLogix I/O modules.
Q6: Does this accessory include electronics?
No—it is a mechanical wiring interface accessory only.
Q7: What environmental conditions can it withstand?
It is designed for industrial use from 0 °C to 60 °C with 5–95 % non‑condensing humidity.
Q8: What are its physical dimensions and weight?
The housing is approximately 140 mm × 112 mm × 145 mm and weighs about 0.14 kg.
