Technical Specifications
| Specification | Parameter |
|---|---|

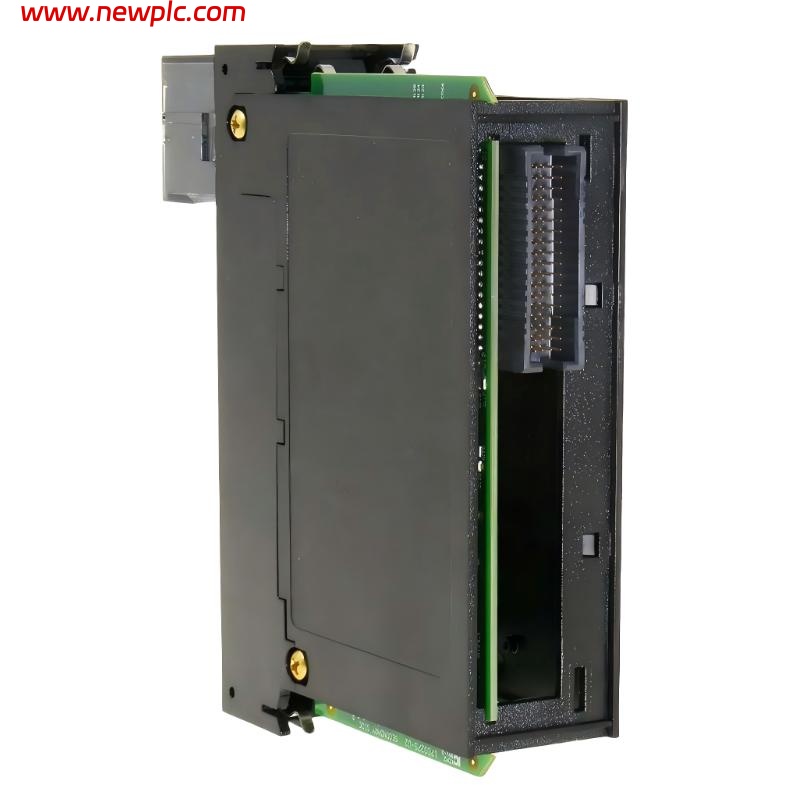

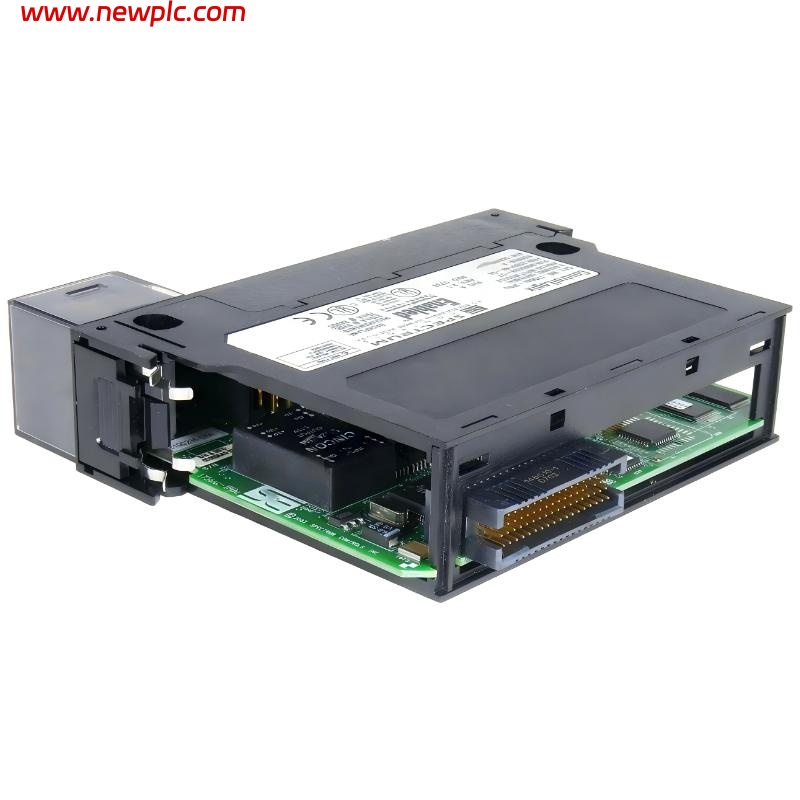

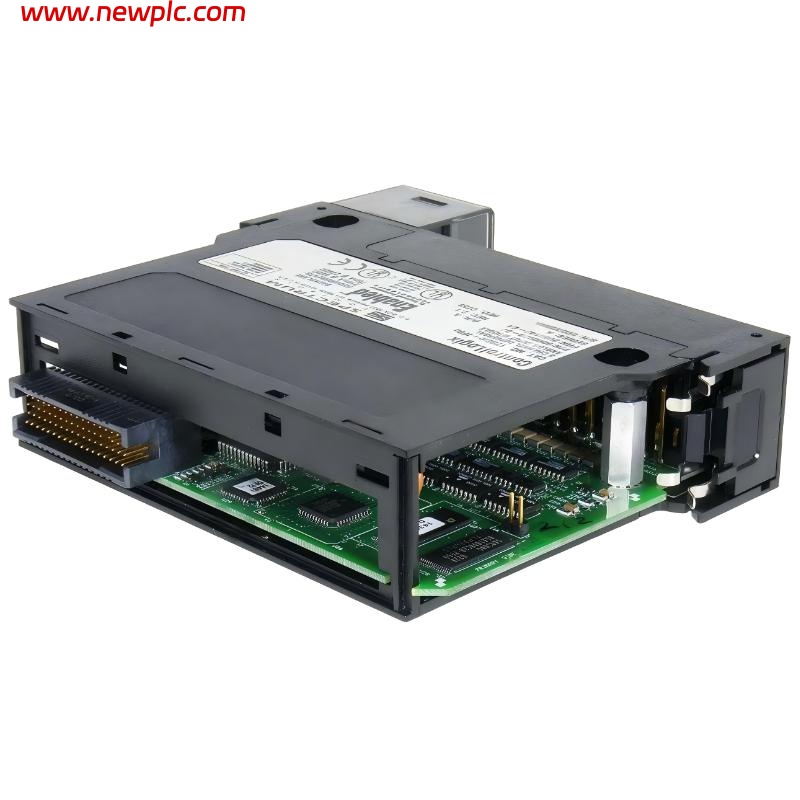

| Part Number / Model | 1756SC‑IF8U |
| Module Type | Universal Analog Input Module |
| System Compatibility | ControlLogix (1756 I/O rack) |
| Number of Channels | 8 universal analog inputs |
| Input Signal Types | Voltage, Current, Resistance, RTD, Thermocouple |
| Voltage Input Ranges | ±50 mV, ±150 mV, 0‑5 V, 1‑5 V, 0‑10 V, ±10 V |
| Current Input Ranges | 0‑20 mA, 4‑20 mA |
| Resistance Ranges | 250, 500, 1000, 2000, 3000, 4000 Ω |
| RTD Types Supported | PT385/3916, Ni618/672, NiFe518, Cu426 |
| Thermocouple Types | J, K, T, B, E, R, S, N, C |
| Resolution | 16–21 bits (filter dependent) |
| Update Times | 0.04–0.99 s depending on filter selection |
| Electrical Isolation | 12.5 VDC channel‑to‑channel; 1000 VAC field wiring to backplane and chassis ground |
| Backplane Current | ~230 mA @ 5 V DC; ~75 mA @ 24 V DC |
| Backplane Power | ~3 W maximum |
| Slot Width | 1 slot |
| Mounting | ControlLogix chassis (any slot) |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | 30 G shock; 2 G @ 10‑500 Hz |
| Dimensions (L × W × H) | ~146 mm × 40 mm × 140 mm |
| Weight | ~0.24 kg |
FAQ
FAQ
Q1: What types of input signals can this module handle?
It supports voltage, current, resistance, RTD, and thermocouple inputs on any of its eight channels.
Q2: How many analog channels are available?
The module provides eight individually configurable universal input channels.
Q3: What resolution does it offer?
Resolution ranges from 16 bits to 21 bits depending on the configured filter settings.
Q4: Does it include electrical isolation?
Yes — it has 12.5 VDC channel‑to‑channel isolation and 1000 VAC field wiring to backplane/chassis isolation.
Q5: What are typical update times for channel readings?
Update times vary from approximately 0.04 s to 0.99 s depending on the selected filter frequency.
Q6: Can this module be installed in any ControlLogix rack slot?
Yes — it occupies one slot and can be installed in any available slot in a 1756 chassis.
Q7: What are the environmental operating limits?
It operates reliably from 0 °C to 60 °C with 5 %–95 % non‑condensing humidity.
Q8: What are the physical size and weight of this module?
The unit measures approximately 146 mm × 40 mm × 140 mm and weighs about 0.24 kg.
