Technical Specifications
| Specification | Parameter |
|---|---|

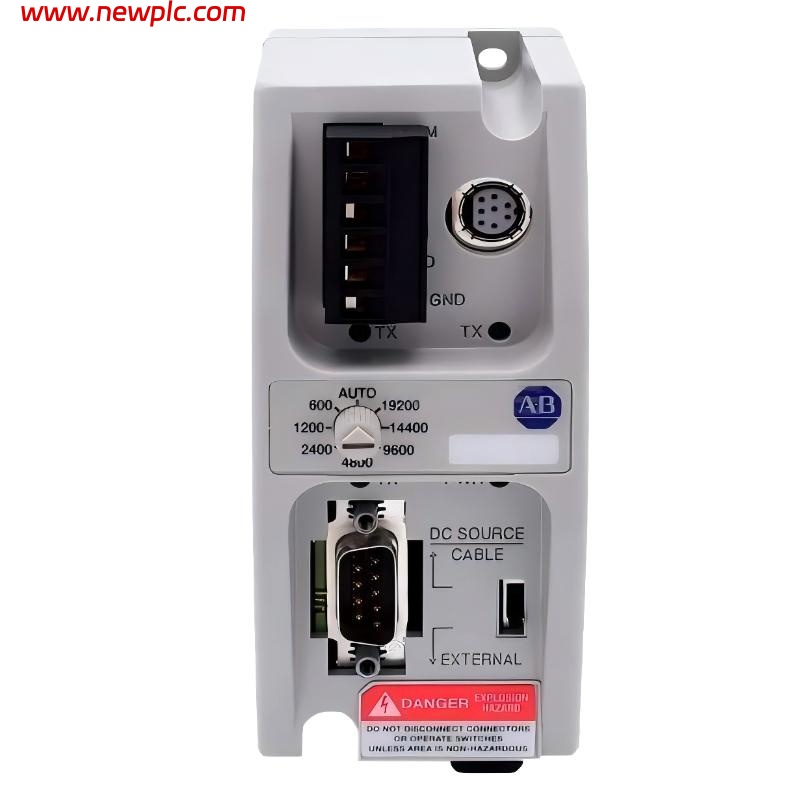

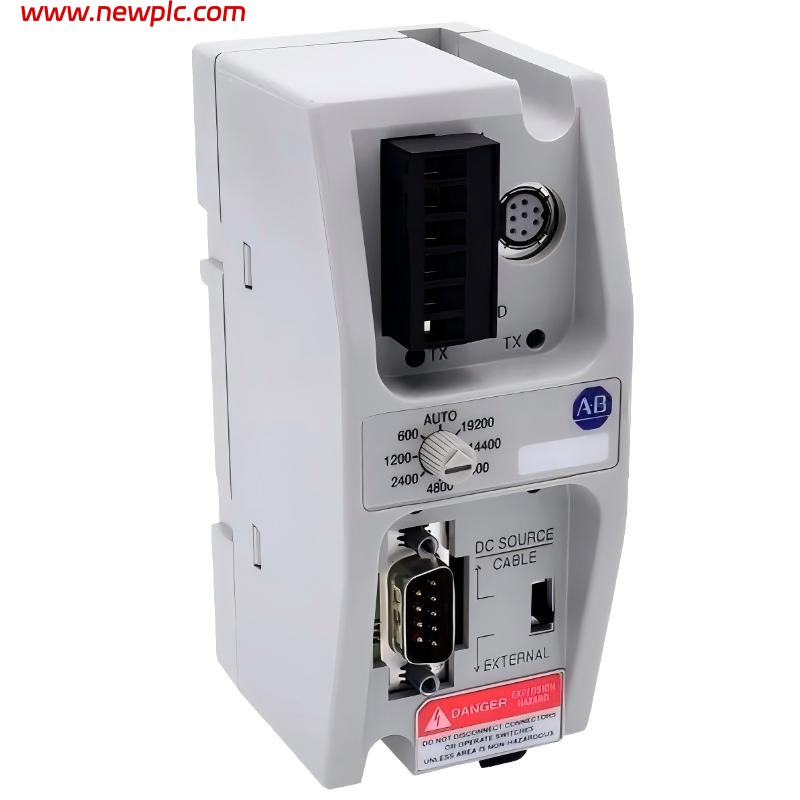

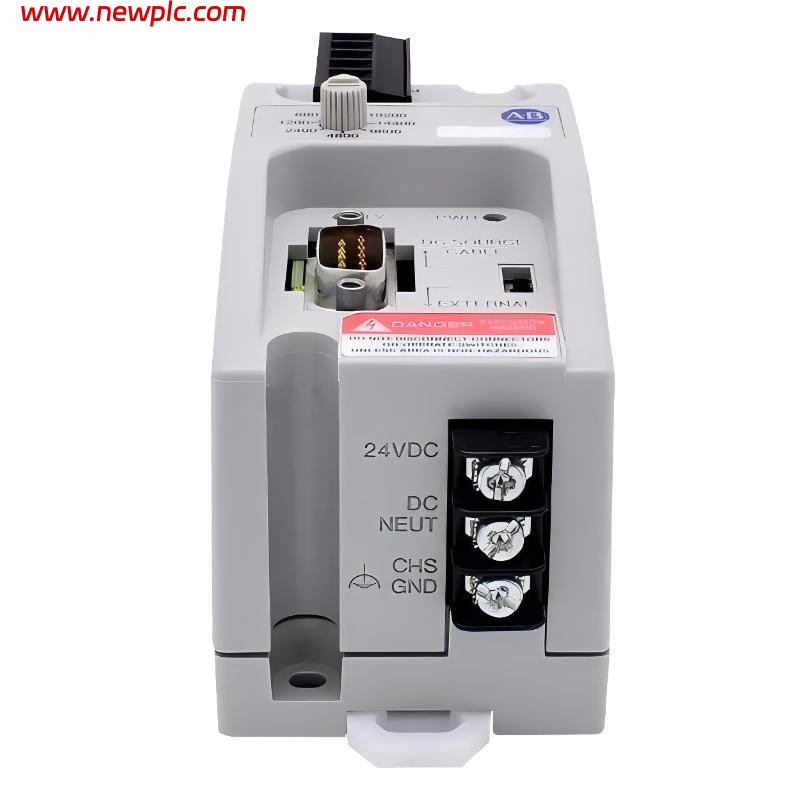

| 1761-NET-AIC | MicroLogix & SLC Communication Adaptor / Advanced Interface Converter |
| Product Type | Communication interface module |
| System Compatibility | MicroLogix 1000, 1200, 1500; SLC 500; DF1/DH‑485 networks |
| Function | Converts between RS‑232 and DH‑485 (isolated interface); supports point‑to‑point and network connections |
| Communication Interfaces | 2 × RS‑232 ports; 1 × DH‑485/RS‑485 port |
| Supported Protocols | DF1, DH‑485, RS‑485 |
| Power Supply | 20.4–28.8 V DC |
| Current Draw | ~120 mA typical (external supply) |
| Isolation Voltage | 500 V DC internal isolation |
| Baud Rates | Supports 600 to 19,200 baud (AUTO) |
| Maximum Nodes | Up to 32 per DH‑485 multidrop network |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | −40 °C to 85 °C |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | Operating shock 30 g; non‑operating 50 g; vibration per industrial ratings |
| Dimensions (Approx.) | ~180 mm × 150 mm × 40 mm |
| Weight | ~0.20 kg (~0.44 lb) |
| Lifecycle Status | Discontinued (no direct replacement) |
FAQ
FAQ
Q1: What is the 1761‑NET‑AIC used for?
It is an advanced interface converter that enables MicroLogix and SLC PLCs to communicate with DH‑485 networks and other devices.
Q2: What types of communication ports does it have?
It includes two RS‑232 ports and one DH‑485/RS‑485 port for network connection.
Q3: What protocols are supported by this module?
It supports DF1, DH‑485, and RS‑485 communication protocols.
Q4: What power supply does it require?
The interface converter uses 20.4–28.8 V DC for power.
Q5: Can it be mounted in different ways?
Yes — it can be mounted on DIN rail or panel for flexible installation.
Q6: What network size can it support?
It supports up to 32 nodes on a DH‑485 multidrop network.
Q7: What are the environmental operating conditions?
Typical operation is from 0 °C to 60 °C with 5–95 % non‑condensing humidity.
Q8: Is the 1761‑NET‑AIC still in production?
No — this interface converter has been discontinued and no planned replacement has been announced.
