Technical Specifications
| Parameter | Specification |
|---|---|

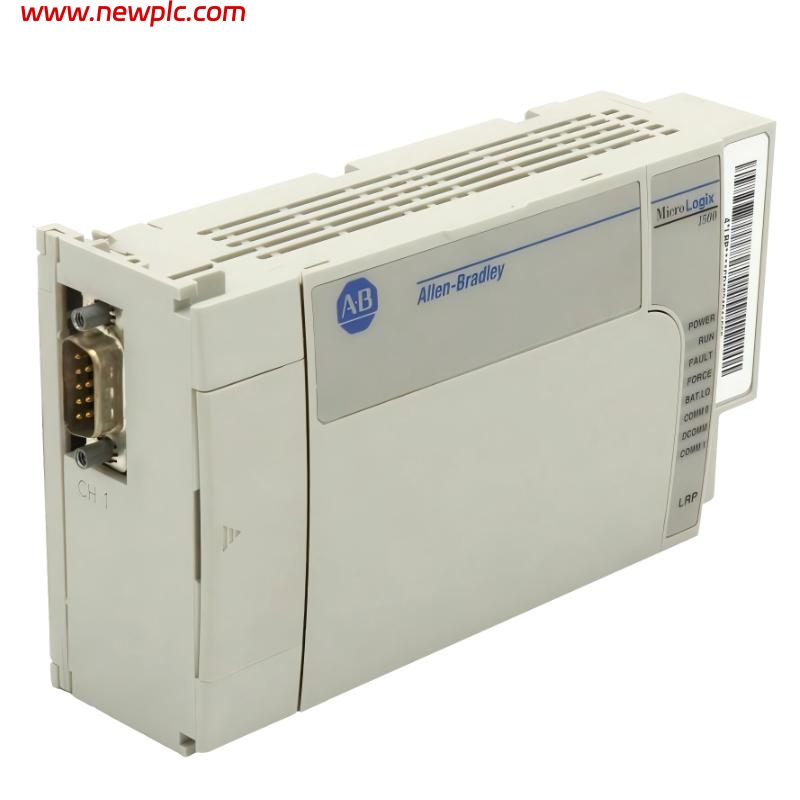

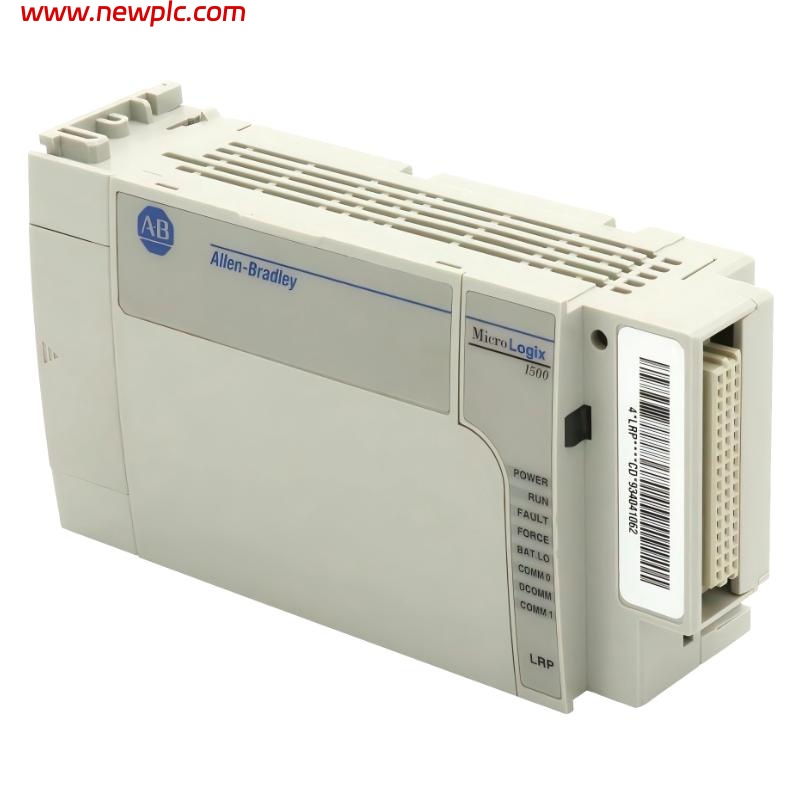

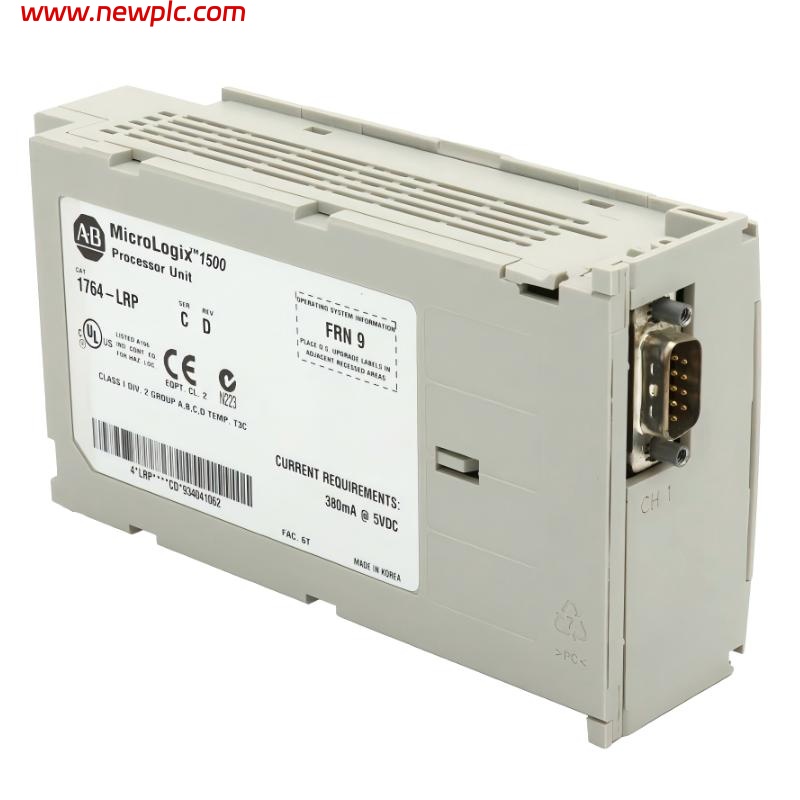

| Product | 1764-LRP MicroLogix 1500 Controller Processor |
| Controller Type | MicroLogix 1500 central processing unit (enhanced version with dual RS‑232) |
| Memory | 14 KB user memory (10 KB program + 4 KB data) |
| Communication Ports | 2 × RS‑232 communication ports (isolated + non‑isolated) |
| Supported Protocols | DF1, DH‑485, Modbus, ASCII |
| Bus Current Draw | ~380 mA from MicroLogix backplane |
| Heat Dissipation | ~1.9 W typical |
| Supported Base Units | 1764‑AWA, 1764‑BWA, 1764‑BXB |
| Expansion I/O Support | Up to 512 total I/O points |
| Enclosure Rating | IP20 industrial enclosure |
| Indicator/Controls | Run/Remote/Program mode switch, communication toggle |
| Operating Temperature | 0 °C to 55 °C ambient (typical MicroLogix spec) |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Weight | ~0.23 kg (approx.) |
| Dimensions (H × W × D) | ~57 mm × 104 mm × 193 mm |
| Lifecycle Status | Discontinued by manufacturer |
FAQ
FAQ
Q1. What is the 1764‑LRP?
It is a MicroLogix 1500 controller processor unit used as the CPU in MicroLogix PLC systems.
Q2. How much user memory does this controller have?
The processor provides 14 KB of user memory for programs and data.
Q3. What communication interfaces are on the 1764‑LRP?
It includes two RS‑232 serial ports that support DF1, DH‑485, Modbus, and ASCII protocols.
Q4. What base units can the 1764‑LRP be used with?
It can be installed on MicroLogix 1500 bases such as 1764‑AWA, 1764‑BWA, and 1764‑BXB.
Q5. How many I/O points can be supported with this controller?
With expansion, it can support up to 512 I/O points.
Q6. What are the physical dimensions and weight?
The controller module measures approximately 57 mm × 104 mm × 193 mm and weighs about 0.23 kg.
Q7. What are the operating environmental limits?
It typically operates from 0 °C to 55 °C with 5 %–95 % non‑condensing humidity.
Q8. Is the 1764‑LRP still in production?
No, it has been discontinued by Rockwell Automation.
