Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MicroLogix 1400 |

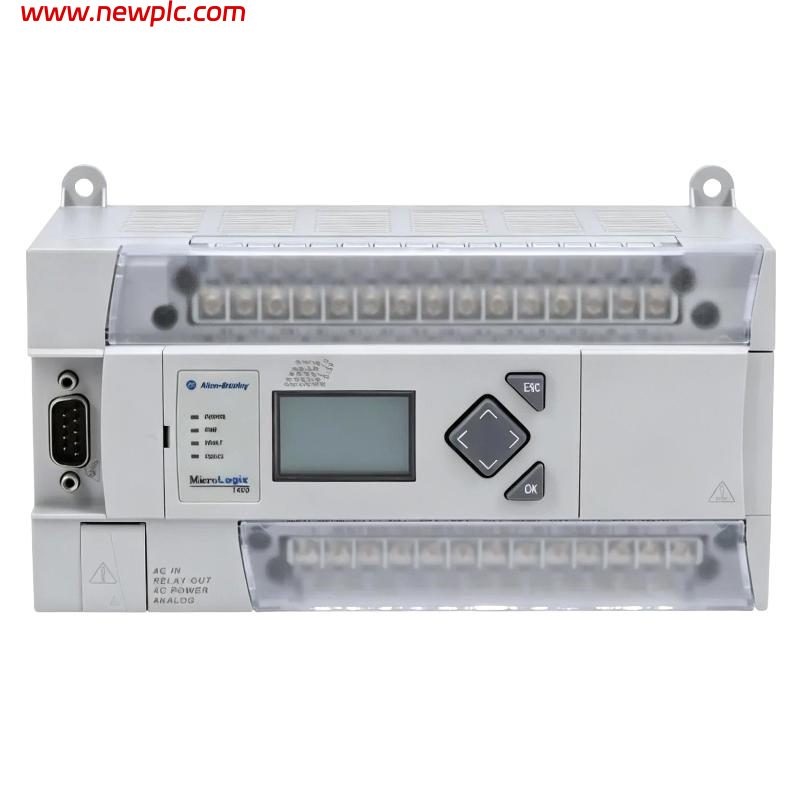

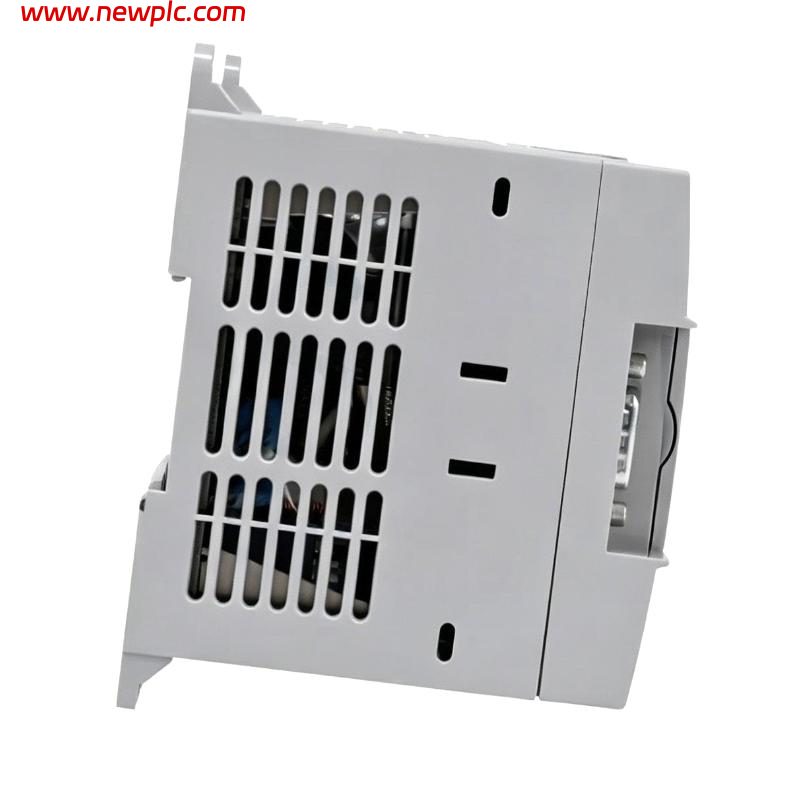

| Model Number | 1766-L32AWAA |
| Product Type | Programmable Logic Controller (PLC) |
| Power Supply | 120/240V AC |
| Digital Inputs | 20 Digital 120V AC Inputs |
| Digital Outputs | 12 Relay Outputs |
| Embedded Analog Inputs | 4 Analog Voltage Inputs (12-bit) |
| Embedded Analog Outputs | 2 Analog Voltage Outputs (12-bit) |
| Total I/O Points | 32 Points |
| User Memory | 20 KB |
| Communication Ports | Ethernet Port, RS-232, RS-485 |
| Supported Protocols | DF1, DH-485, Modbus RTU, ASCII, EtherNet/IP, DNP3, Modbus TCP/IP |
| Display Type | Built-in LCD Display |
| Expansion Capability | Supports up to 7 Expansion I/O Modules |

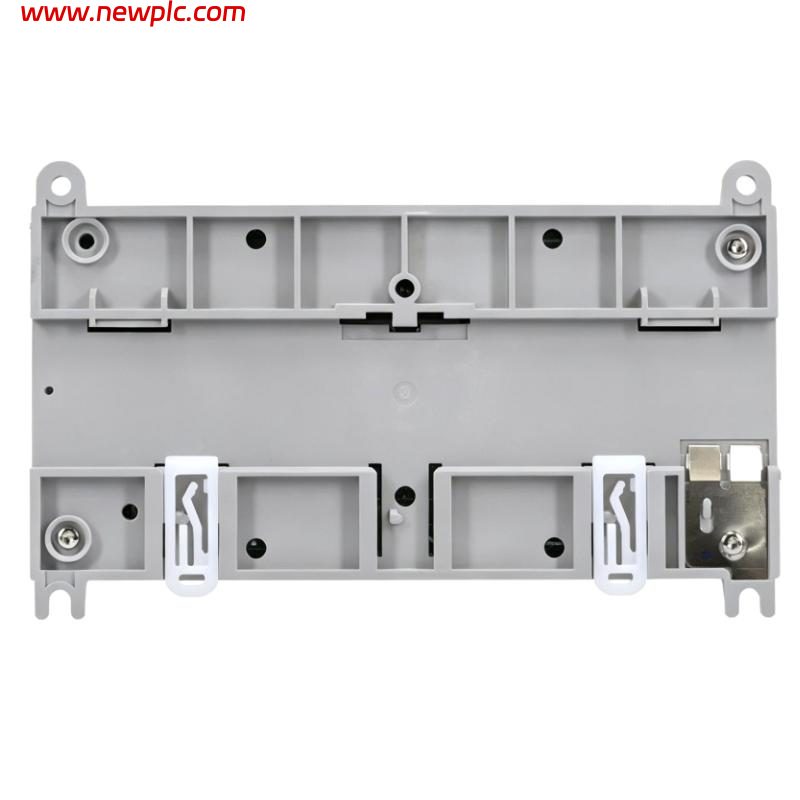

| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Rating | IP20 |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Operating Frequency | 47 to 63 Hz |
| Power Consumption | Approx. 100 VA |
| Input Voltage Range | 79 to 132V AC |
| Relay Output Voltage Range | 5 to 125V DC / 5 to 264V AC |
| Dimensions | Approx. 180 x 90 x 87 mm |
| Weight | Approx. 0.91 kg |
| Certifications | UL, CE, C-Tick, Class I Division 2 |
| Typical Applications | Industrial Automation, Packaging, Material Handling, Machine Control |
FAQ
FAQ
Q1: What is the Allen-Bradley 1766-L32AWAA used for?
A1: The 1766-L32AWAA is a MicroLogix 1400 PLC designed for industrial automation applications such as conveyor systems, packaging machinery, and process control systems.
Q2: How many inputs and outputs are included in the 1766-L32AWAA?
A2: The controller includes 20 digital AC inputs, 12 relay outputs, 4 analog inputs, and 2 analog outputs.
Q3: Does the 1766-L32AWAA support Ethernet communication?
A3: Yes. The controller includes an integrated Ethernet communication port supporting EtherNet/IP and Modbus TCP/IP protocols.
Q4: Can expansion modules be connected to the 1766-L32AWAA?
A4: Yes. The PLC supports up to seven expansion I/O modules for additional system flexibility and scalability.
Q5: What programming software is compatible with the 1766-L32AWAA?
A5: The controller is programmed using RSLogix 500 programming software from Rockwell Automation.
Q6: Does the 1766-L32AWAA include analog I/O functions?
A6: Yes. The unit features four embedded analog voltage inputs and two analog voltage outputs with 12-bit resolution.
Q7: What communication protocols are supported by the 1766-L32AWAA?
A7: Supported communication protocols include DF1, DH-485, Modbus RTU, ASCII, EtherNet/IP, DNP3, and Modbus TCP/IP.
Q8: Is the 1766-L32AWAA suitable for industrial environments?
A8: Yes. The controller is designed for industrial use and includes certifications such as UL, CE, and Class I Division 2.
