Technical Specifications
| Parameter | Specification |
|---|---|

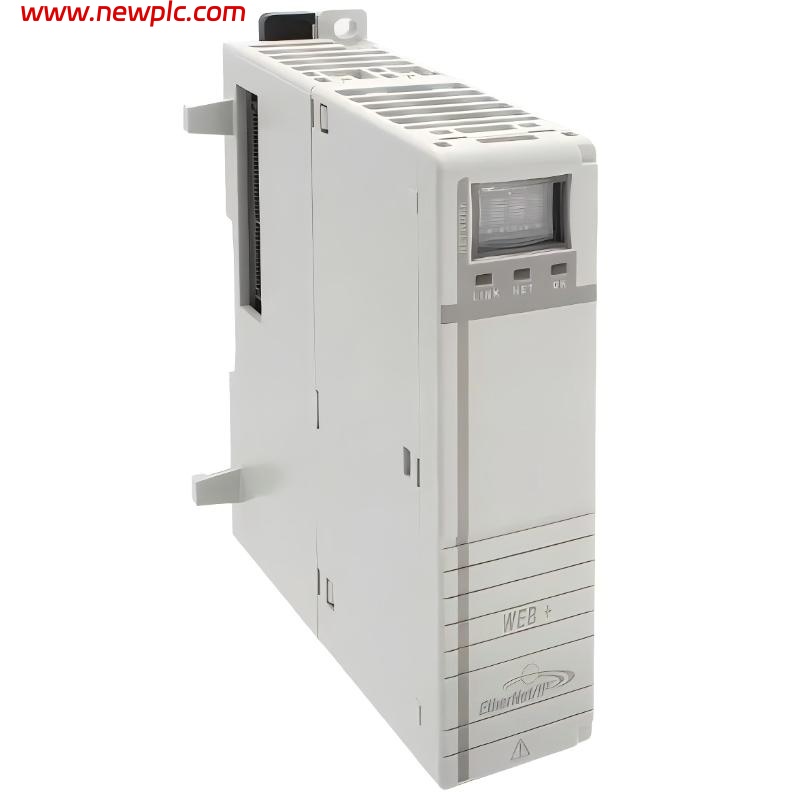

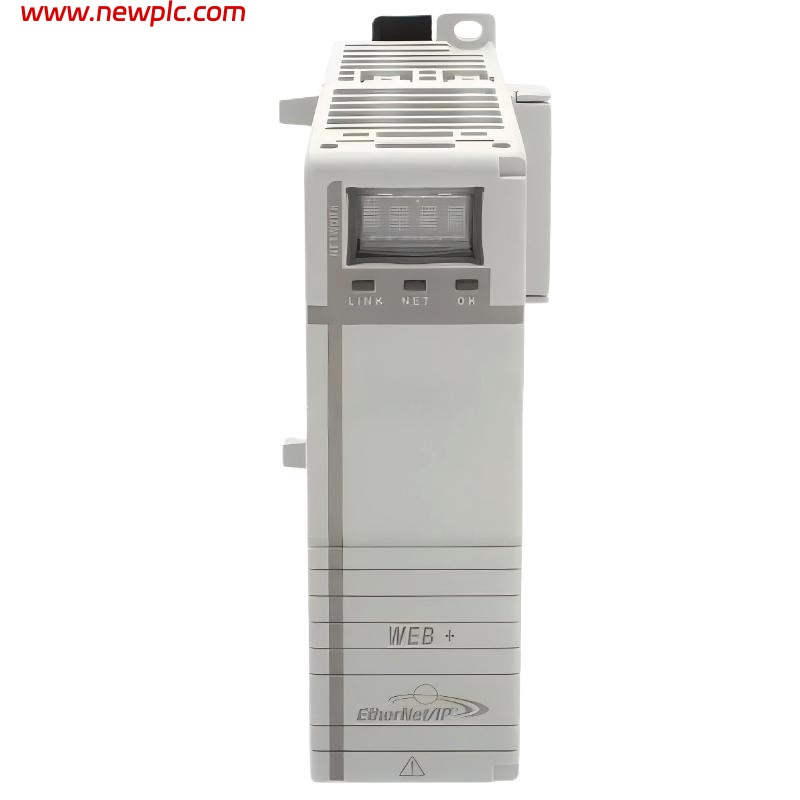

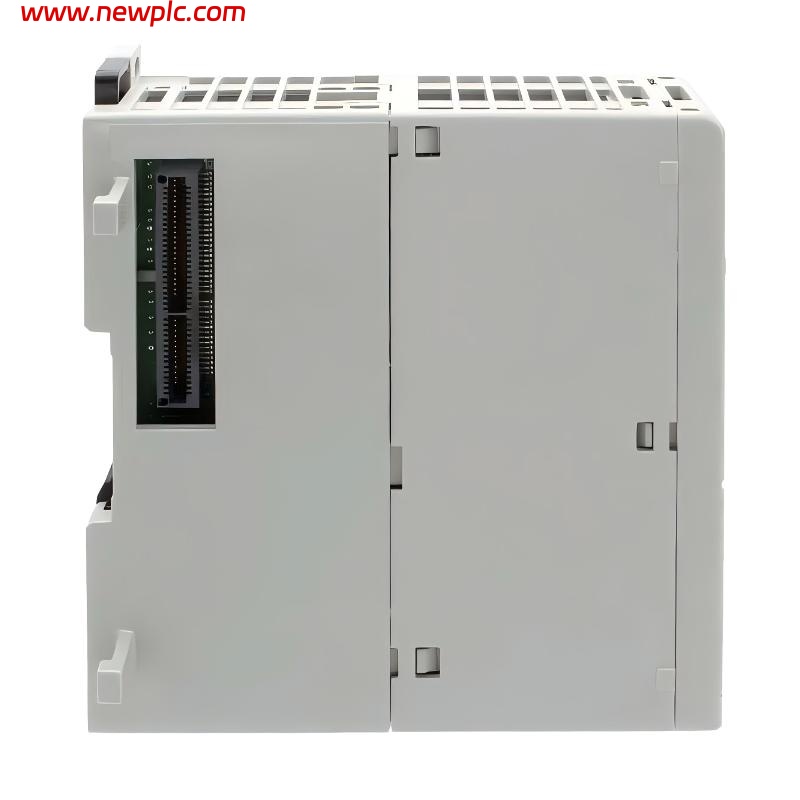

| Product | 1768‑EWEB CompactLogix Enhanced Web Server Module |
| Module Type | Enhanced Ethernet/IP Web Server Module for CompactLogix PLC systems |
| Communication Protocols | Ethernet/IP and TCP/IP with XML web pages support |
| Ethernet Port | 1 × RJ45 Category 5 interface (10/100 Mbps) |
| Ethernet Connections | Up to 64 simultaneous TCP/IP connections |
| Logix Communication Connections | Up to 128 CIP connections |
| Isolation Voltage | 30 V continuous functional insulation (Ethernet to system) |
| Current Draw | ~834 mA @ 5.2 V DC backplane supply |
| Power Dissipation | ~4.34 W |
| Module Storage | ~2 Mb flash storage for web content and data views |
| Environmental – Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Environmental – Non‑operating Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Relative Humidity (Operating) | 5 % to 95 % non‑condensing |
| Vibration (Operating) | 5 g @ 10‑500 Hz |
| Shock (Operating) | 30 g |
| Enclosure Type | Open‑style industrial module (no dedicated enclosure) |
| Mounting | DIN rail or panel mount inside CompactLogix chassis |
| Weight | ~0.213 kg (approx.) |
| Dimensions (H × W × D) | 132 mm × 56.7 mm × 105.1 mm |
| Slot Width | 1 slot wide on CompactLogix backplane |
| Lifecycle Status | Discontinued (no longer manufactured) |
FAQ
FAQ
Q1. What is the 1768‑EWEB used for?
It provides Web server capability to CompactLogix PLC systems, allowing remote monitoring and control via standard web browsers over Ethernet/IP.
Q2. What communication interfaces does this module have?
It includes a single Ethernet RJ45 (10/100 Mbps) interface for TCP/IP and Ethernet/IP communication.
Q3. How many network connections can it support?
It supports up to 64 simultaneous TCP/IP connections and 128 Logix (CIP) connections.
Q4. What power and backplane requirements does it have?
It draws about 834 mA from the CompactLogix backplane 5 V supply and dissipates around 4.34 W.
Q5. What environmental conditions is it rated for?
The module operates at 0 °C to 60 °C with 5 %–95 % non‑condensing humidity and can withstand industrial shock and vibration.
Q6. What are the physical dimensions and weight?
Dimensions are approximately 132 mm × 56.7 mm × 105.1 mm, and weight is about 0.213 kg.
Q7. Does this module provide data storage?
Yes, it includes about 2 Mb of flash storage for web pages and data views.
Q8. Is the 1768‑EWEB still produced by Rockwell Automation?
No, it has been officially discontinued and is no longer manufactured.
