Technical Specifications
| Parameter | Specification |
|---|---|

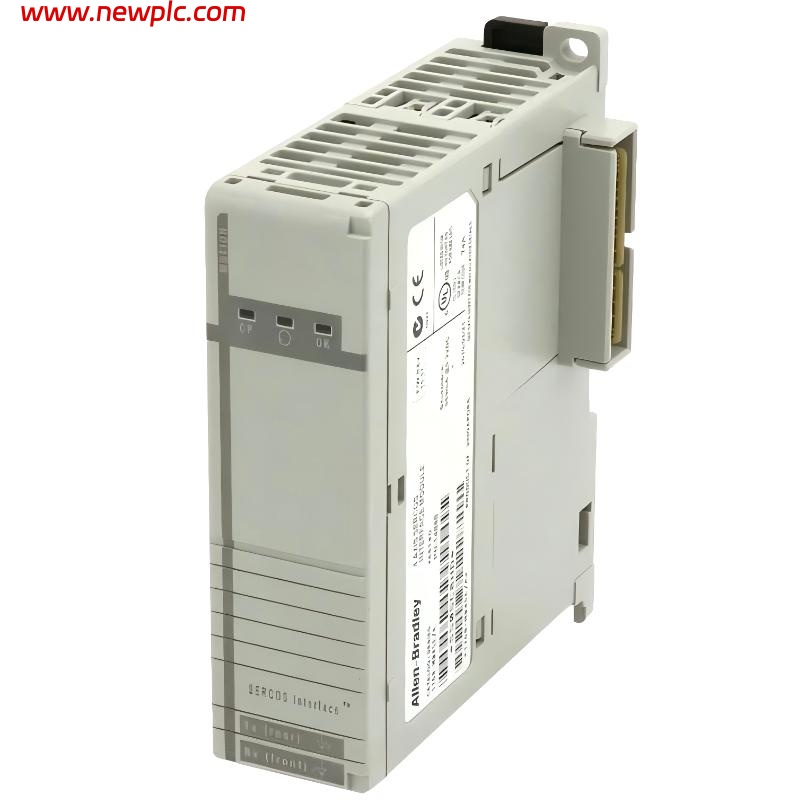

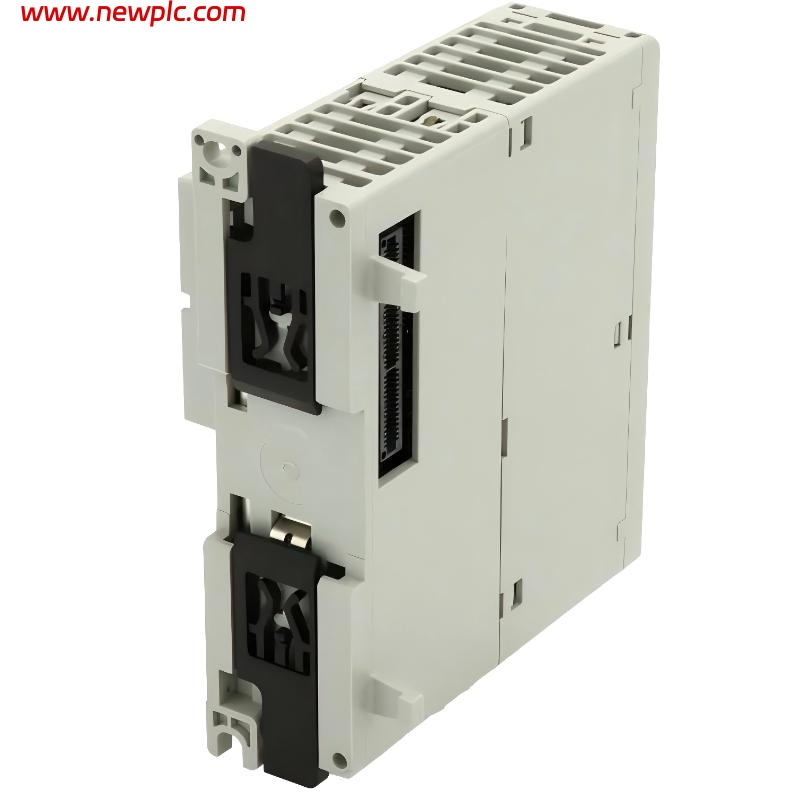

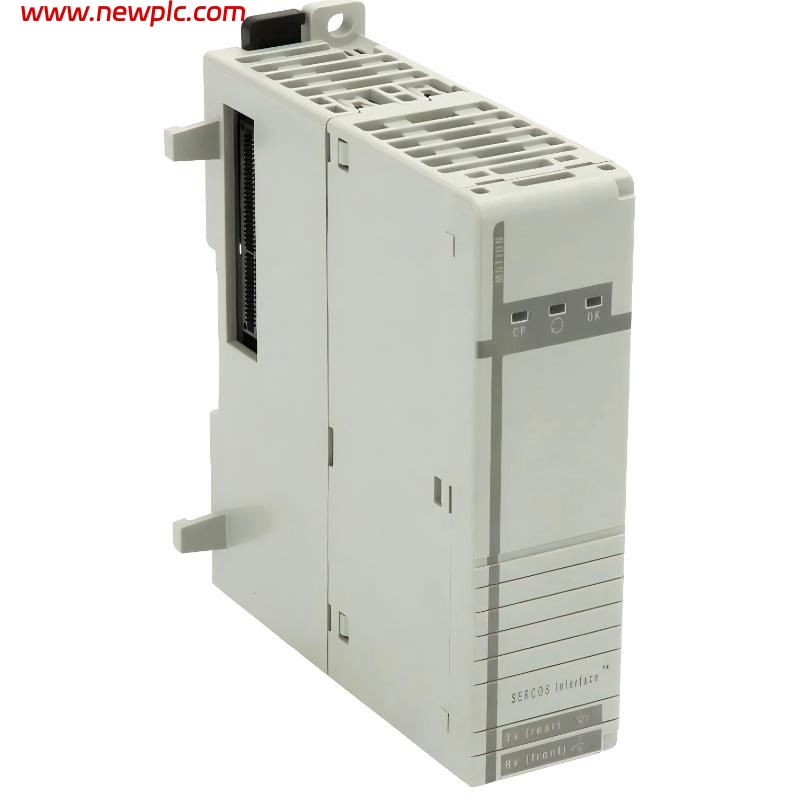

| Product | Allen‑Bradley 1768‑M04SE (CompactLogix 4‑Axis SERCOS Motion Module) |
| Module Type | CompactLogix SERCOS motion interface module for servo control |
| Supported Axes | Up to 4 primary servo axes and 2 auxiliary feedback axes |
| Supported Drives | Allen‑Bradley Kinetix series servo drives (2000, 6000, 7000, Ultra 3000) |
| Communication Protocols | SERCOS real‑time motion network (4 Mbps or 8 Mbps) |
| SERCOS Data Rates | 4 Mbps, 8 Mbps |
| Supported Control Modes | Position and velocity control modes |
| Backplane Current Draw (@ 5.2 V DC) | 969 mA |
| Backplane Current Draw (@ 24 V DC) | ~1.4 A |
| Power Consumption | ~33.6 W total |
| Power Dissipation | ~5.04 W module dissipation |
| Isolation Voltage | ~30 V continuous functional insulation |
| Fiber Optic Connector | Standard F‑SMA screw‑type |
| Fiber Optic Cable Types Supported | Plastic and glass fiber‑optic with multiple jacket options |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non‑condensing |
| Weight | ~0.23 kg |
| Dimensions (H × W × D) | 132 mm × 56.7 mm × 105.1 mm |
| Slot Width | Single CompactLogix backplane slot |
| Lifecycle Status | Discontinued by manufacturer |
FAQ
FAQ
Q1. What is the purpose of the 1768‑M04SE module?
It provides motion control for up to four servo axes via a SERCOS interface in CompactLogix automation systems.
Q2. What types of drives can it control?
It works with Allen‑Bradley Kinetix series servo drives, including Kinetix 2000, 6000, 7000, and Ultra 3000 drives.
Q3. What communication networks does this module use?
It uses the SERCOS real‑time motion network at 4 Mbps or 8 Mbps speeds.
Q4. How much power does the module consume?
It draws about 969 mA at 5.2 V DC and ~1.4 A at 24 V DC, with ~33.6 W total power consumption.
Q5. How many axes of motion control are supported?
The module supports up to four primary motion axes and two auxiliary feedback axes.
Q6. What are the physical dimensions and weight?
The module measures approximately 132 mm × 56.7 mm × 105.1 mm and weighs around 0.23 kg.
Q7. What environmental conditions can it operate in?
It is rated for 0 °C to 60 °C and 5 %–95 % non‑condensing humidity.
Q8. Is the 1768‑M04SE still manufactured by Rockwell Automation?
No, this module has been discontinued by the manufacturer.
