Technical Specifications
| Parameter | Specification |
|---|---|

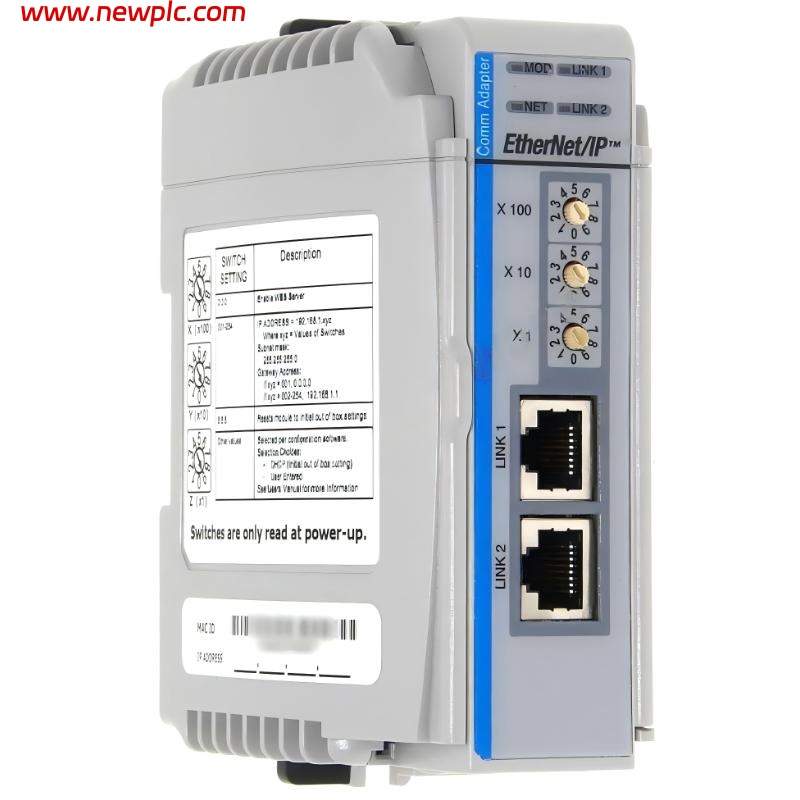

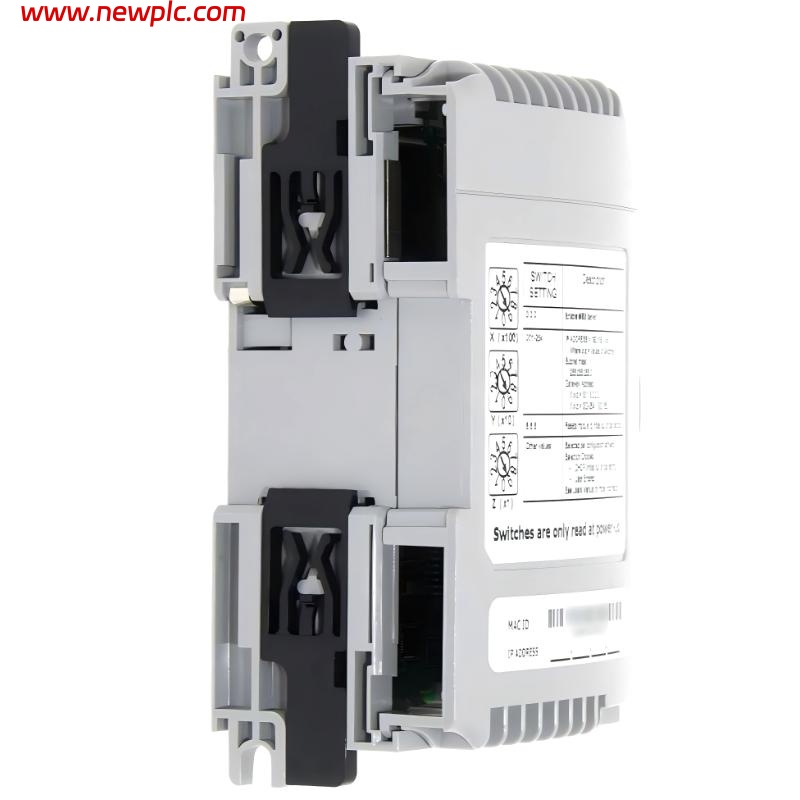

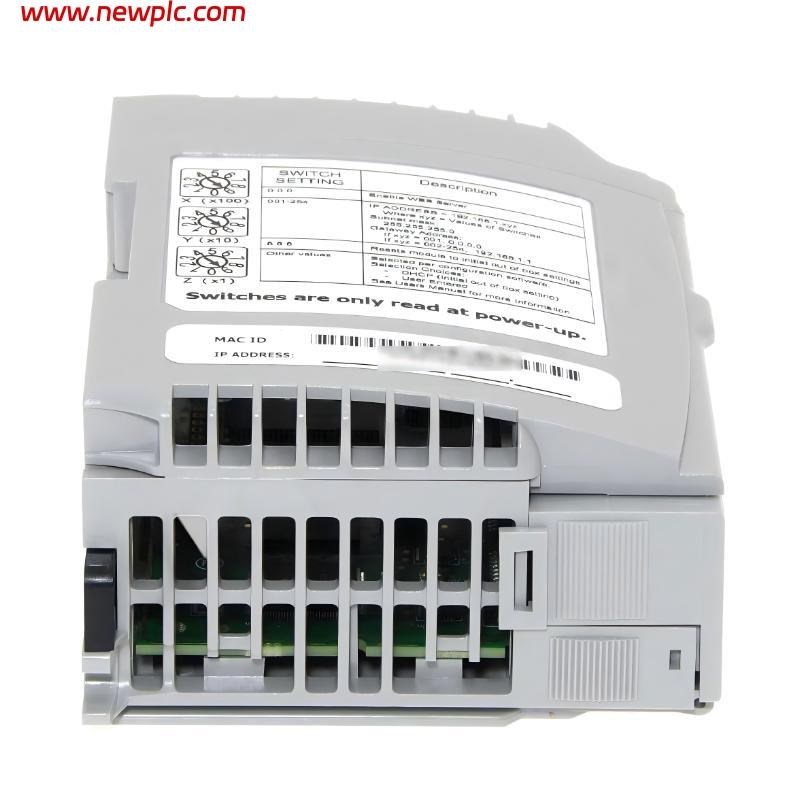

| Product | 1769-AENTR CompactLogix Ethernet/IP Adapter Module |
| Module Type | Ethernet/IP adapter for Compact I/O systems |
| Communication Protocol | EtherNet/IP (CIP over TCP/IP) |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps, embedded switch for ring/linear topology) |
| Network Topology Support | Star, linear, and Device Level Ring (DLR) |
| Transmission Rate | 10/100 Mbps auto-negotiation |
| Max I/O Modules Supported | Up to 30 Compact I/O modules |
| Max Connections Supported | Up to 128 CIP connections |
| Backplane Current Draw | ~0.5 A @ 5 V DC |
| Power Consumption | ~4.4 W |
| Isolation Voltage | 30 V continuous functional insulation |
| Indicators | Status LEDs for module, network, and link activity |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Vibration (Operating) | 5 g @ 10–500 Hz |
| Shock (Operating) | 30 g |
| Weight | ~0.3 kg |
| Dimensions (H × W × D) | 118 mm × 50 mm × 87 mm |
| Enclosure Type | Open-style (IP20) |
| Application | Distributed I/O communication over Ethernet/IP |
FAQ
FAQ
Q1. What is the 1769-AENTR used for?
It is an Ethernet/IP adapter that connects Compact I/O modules to a Logix controller over an Ethernet network.
Q2. What type of Ethernet connections does it support?
It features dual RJ45 ports with an embedded switch, supporting linear and ring (DLR) topologies.
Q3. How many I/O modules can be connected?
It supports up to 30 Compact I/O modules in a local bank.
Q4. What communication protocol does it use?
It uses EtherNet/IP based on the CIP protocol over standard TCP/IP networks.
Q5. How many connections can the module handle?
It supports up to 128 simultaneous CIP connections.
Q6. What are the power requirements?
It draws approximately 0.5 A from the 5 V DC backplane and consumes about 4.4 W.
Q7. What are the physical dimensions and weight?
The module measures 118 mm × 50 mm × 87 mm and weighs about 0.3 kg.
Q8. What environments can it operate in?
It operates in 0 °C to 60 °C with 5 %–95 % non-condensing humidity, suitable for industrial environments.
