Technical Specifications
| Parameter | Specification |
|---|---|

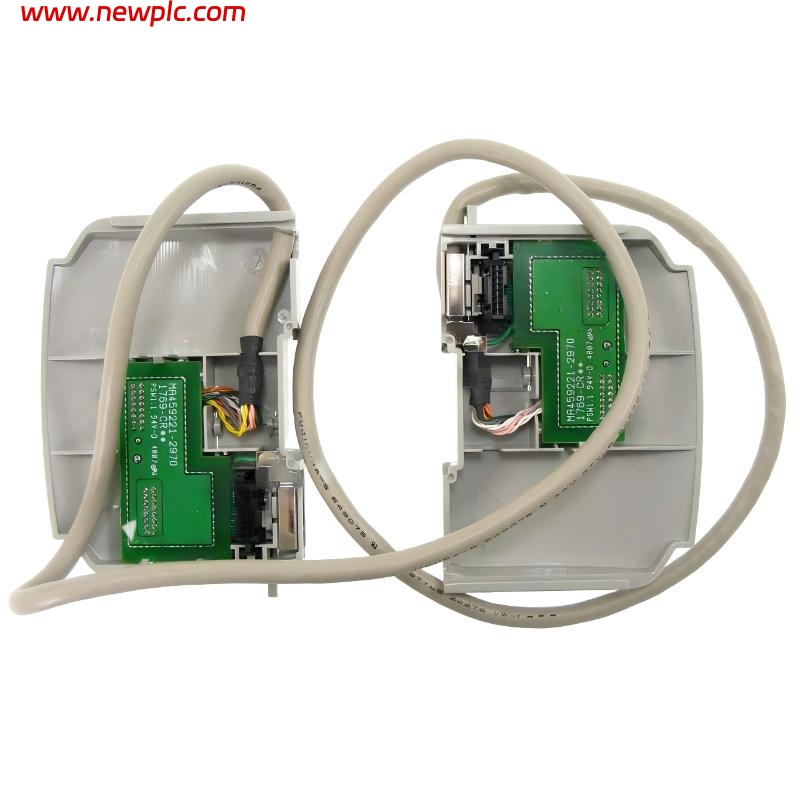

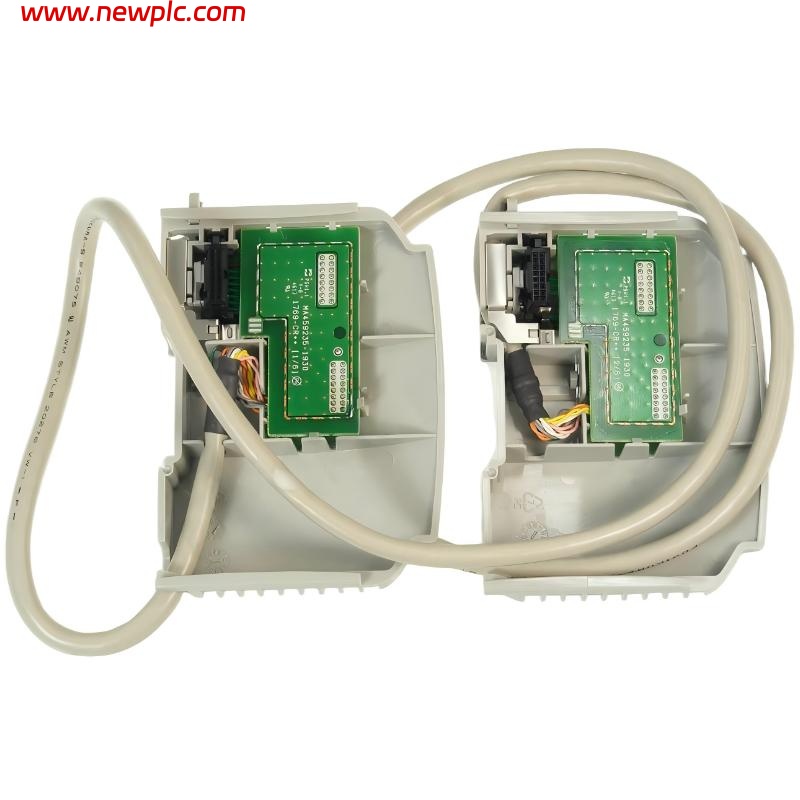

| Product | 1769-CRR3 CompactLogix Redundant Power Supply Cable |
| Module Type | Redundancy cable for CompactLogix power supplies |
| Function | Connects two power supplies to enable redundant power configuration |
| Compatibility | Used with 1769 CompactLogix power supply modules |
| Cable Length | ~3 m |
| Connector Type | Pre-installed proprietary connectors on both ends |
| Power Support | Supports redundant 24 V DC power distribution |
| Installation | Plug-and-play connection |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Vibration (Operating) | 5 g @ 10–500 Hz |
| Shock (Operating) | 30 g |
| Weight | ~0.3 kg |
| Dimensions (H × W × D) | 3000 mm × 20 mm × 10 mm |
| Enclosure Type | Cable assembly (no enclosure) |
| Application | Power redundancy for industrial PLC systems |
FAQ
FAQ
Q1. What is the 1769-CRR3 used for?
It is a redundancy cable used to connect two CompactLogix power supplies for backup power operation.
Q2. What is the difference between CRR1 and CRR3?
The main difference is cable length; the CRR3 is approximately 3 meters long, while the CRR1 is about 1 meter.
Q3. Which systems can use this cable?
It is designed for use with 1769 CompactLogix power supply modules.
Q4. Does the cable require configuration?
No, it is plug-and-play and requires no configuration.
Q5. What type of connectors are included?
It comes with factory-installed proprietary connectors compatible with CompactLogix power supplies.
Q6. What is the benefit of redundant power?
It ensures continuous system operation if one power supply fails.
Q7. What are the dimensions and weight?
The cable measures approximately 3000 mm × 20 mm × 10 mm and weighs about 0.3 kg.
Q8. What environmental conditions is it rated for?
It operates in temperatures from 0 °C to 60 °C with 5 %–95 % non-condensing humidity.
