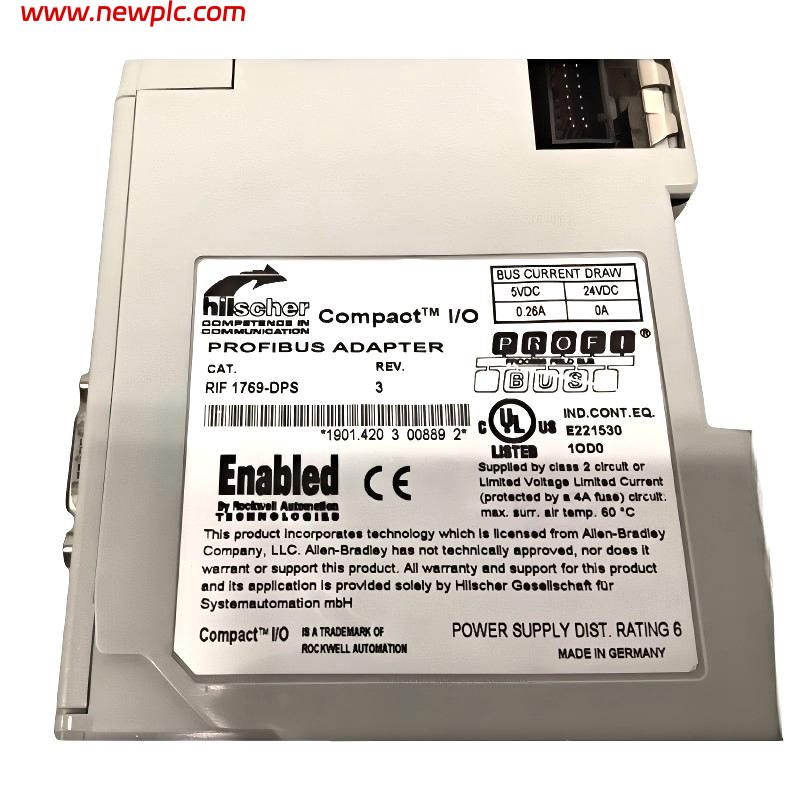

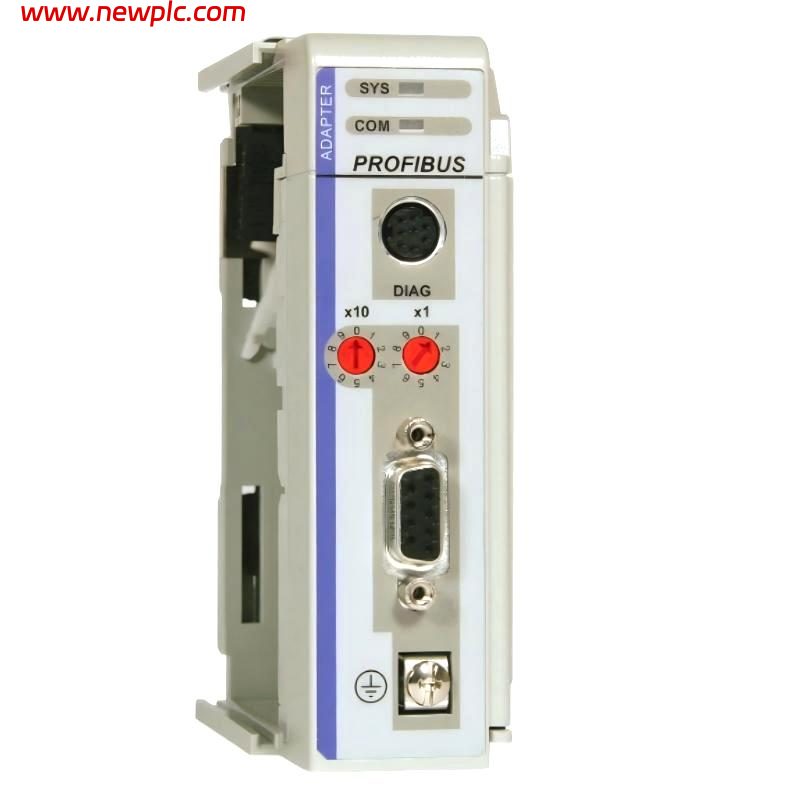

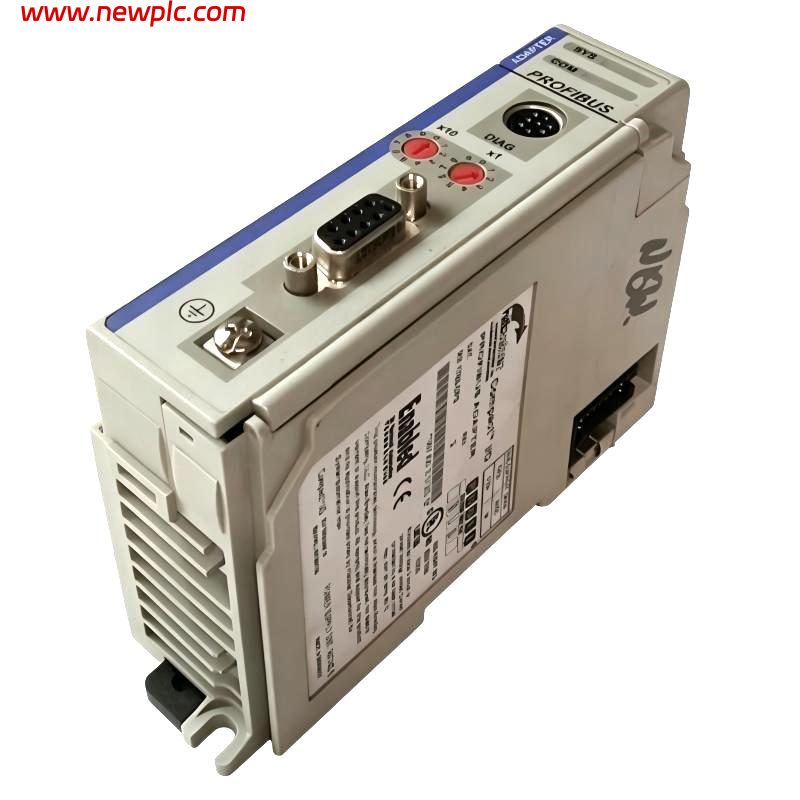

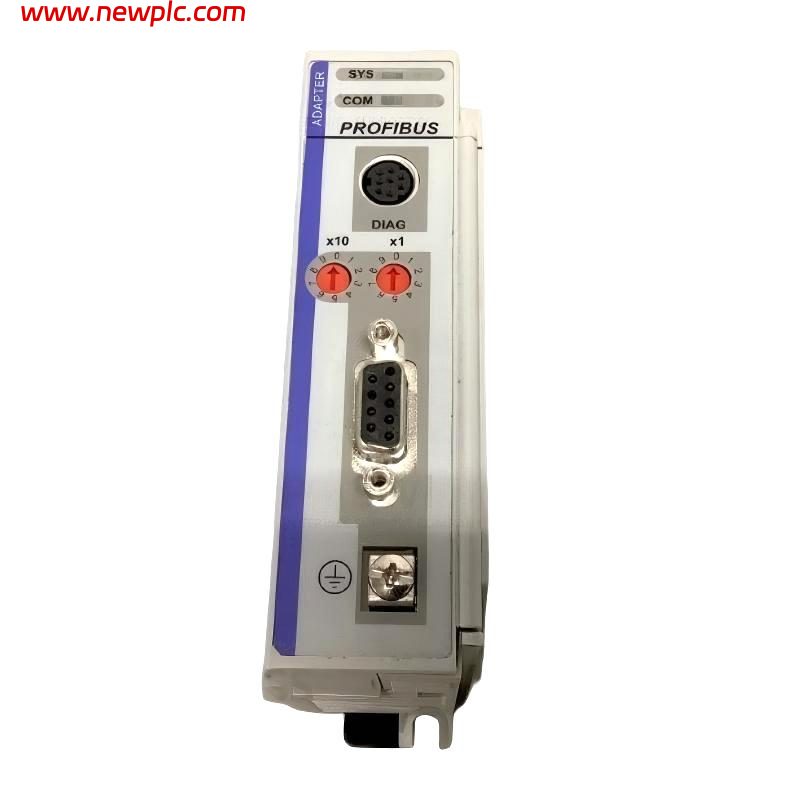

Allen Bradley 1769-DPS PROFIBUS-DP Slave Communication Module

FAQ

Q1: What is the Allen-Bradley 1769-DPS?
A: The 1769-DPS is a third-party PROFIBUS-DP Slave communication module for Allen-Bradley CompactLogix systems.

Q2: Who manufactures the 1769-DPS?
A: The module was manufactured by Hilscher as an Encompass third-party product rather than as a Rockwell first-party module.

Q3: What network does the 1769-DPS support?
A: It provides a PROFIBUS-DP slave interface, allowing the CompactLogix controller to exchange data with a PROFIBUS-DP master.

Q4: What PROFIBUS communication speed does it support?
A: The available technical specifications indicate baud rates from 9.6 kbps up to 12 Mbps.

Q5: What is the maximum process data capacity?
A: The module supports up to 244 bytes of input data and 244 bytes of output data.

Q6: How is the 1769-DPS connected to the controller?
A: It installs as a slot-extension module on the 1769 CompactLogix expansion bus and exchanges process data through the CompactLogix backplane.

Q7: What are the operating temperature and dimensions?
A: The specified operating temperature is approximately 0 to 60°C, and dimensions are approximately 131 × 40 × 86 mm.

Q8: Is the 1769-DPS an official Rockwell Automation module?
A: No. It is a Hilscher Encompass third-party module designed for use with the Allen-Bradley 1769/CompactLogix platform.
