Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Compact I/O |
| Model Number | 1769-IA8I |

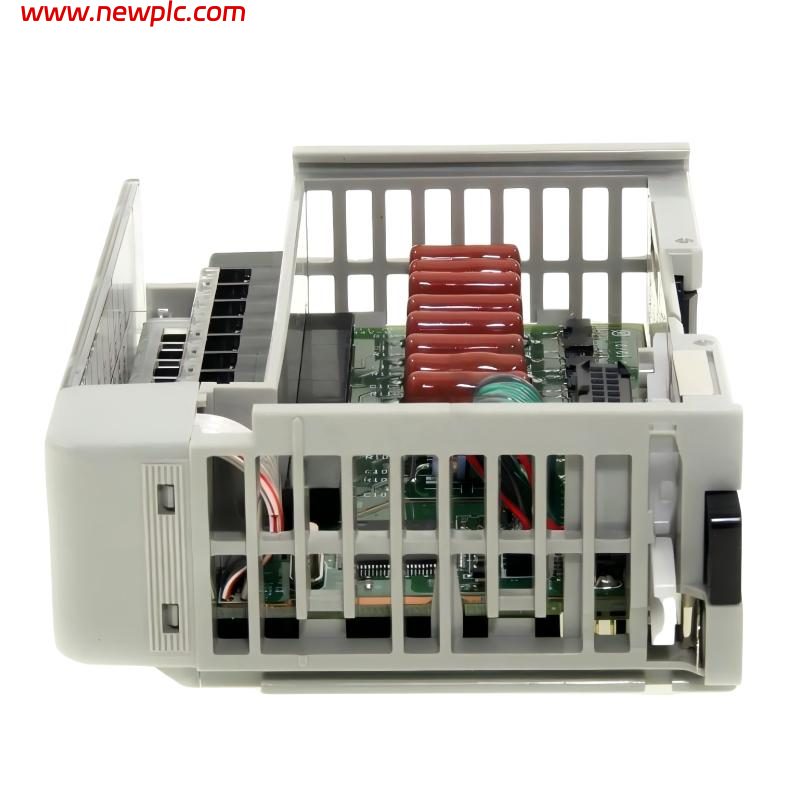

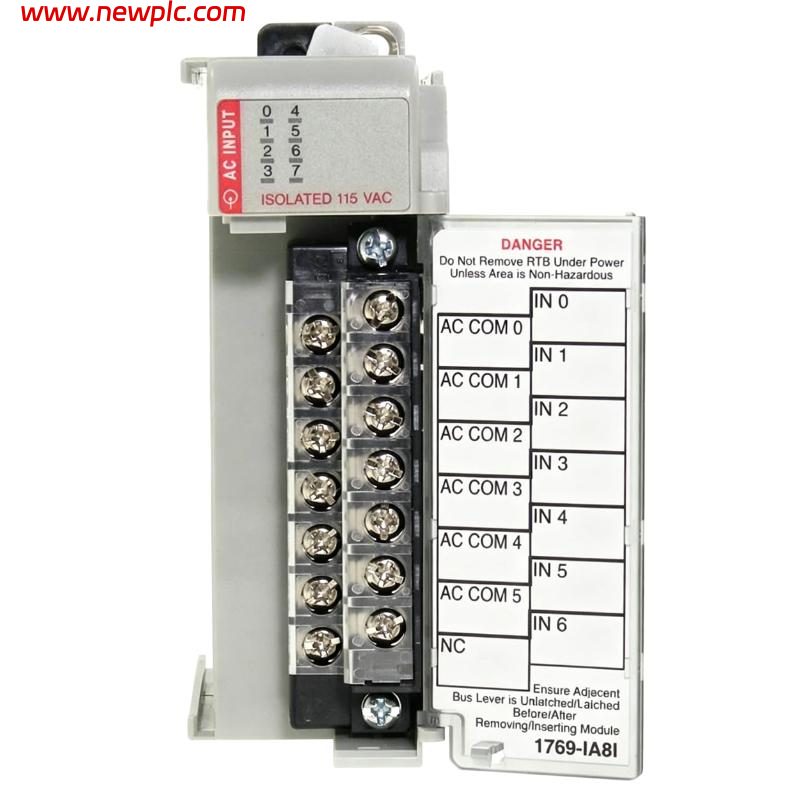

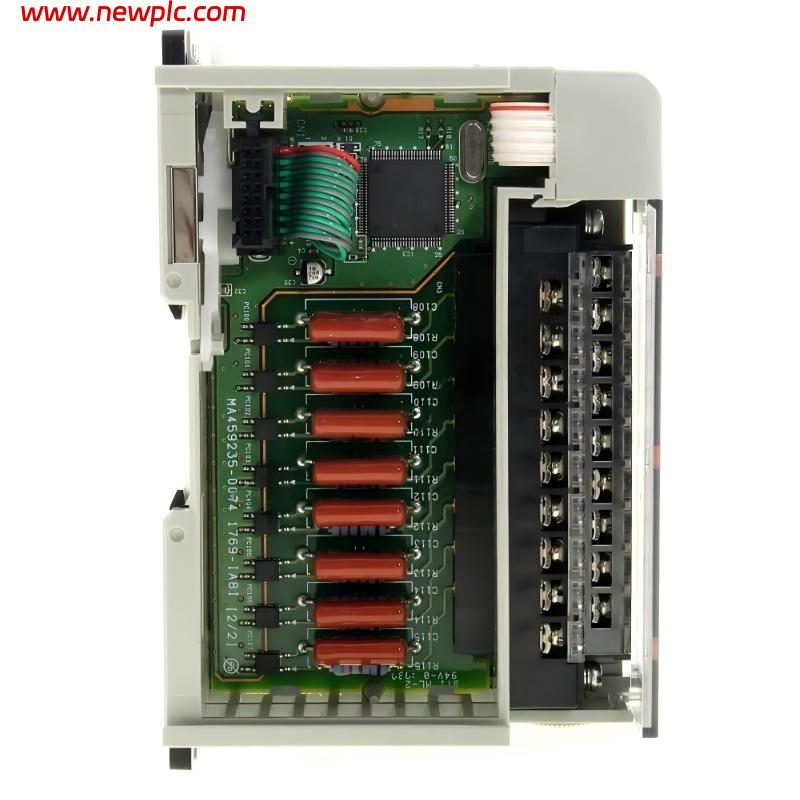

| Product Type | Isolated AC Digital Input Module |
| Input Channels | 8 Isolated Inputs |
| Input Voltage Range | 79 to 132V AC |
| Nominal Input Voltage | 120V AC |
| Frequency Range | 47 to 63 Hz |
| Input Signal Delay | 20 ms Typical |
| Isolation Voltage | 250V Continuous Isolation |
| Backplane Current Draw @ 5.1V | Approx. 120 mA |
| Backplane Current Draw @ 24V | 0 mA |
| Power Dissipation | Approx. 2.83 W |
| Heat Dissipation | Approx. 9.65 BTU/hr |
| Input Type | AC Sink Input |
| Wiring Category | Category 2 |
| Compatible Controllers | CompactLogix, MicroLogix 1500 |
| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Shock Resistance | 30 G Operating |
| Dimensions | Approx. 118 x 35 x 87 mm |
| Weight | Approx. 0.26 kg |
| Certifications | UL, CE, CSA, Class I Division 2 |
| Typical Applications | Industrial AC Signal Monitoring, Machine Automation, Control Systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 1769-IA8I used for?
A1: The 1769-IA8I is an isolated AC digital input module used for monitoring AC input signals in CompactLogix and MicroLogix industrial automation systems.
Q2: How many input channels does the 1769-IA8I provide?
A2: The module includes 8 isolated AC digital input channels.
Q3: What input voltage does the 1769-IA8I support?
A3: The module supports an input voltage range of 79 to 132V AC, with a nominal operating voltage of 120V AC.
Q4: What does “isolated input” mean in the 1769-IA8I?
A4: Isolated inputs help reduce electrical interference and improve protection between field devices and the control system.
Q5: Which controllers are compatible with the 1769-IA8I?
A5: The module is compatible with Allen-Bradley CompactLogix controllers and MicroLogix 1500 systems using the 1769 Compact I/O platform.
Q6: Can the 1769-IA8I be mounted on a DIN rail?
A6: Yes. The module supports both DIN rail mounting and panel mounting for flexible installation.
Q7: Is the 1769-IA8I suitable for industrial environments?
A7: Yes. The module is designed for industrial automation applications and includes certifications such as UL, CE, CSA, and Class I Division 2.
Q8: What are the common applications for the 1769-IA8I?
A8: Common applications include machine automation, process monitoring, industrial equipment control, and AC signal detection systems.
