Technical Specifications
| Parameter | Specification |
|---|---|

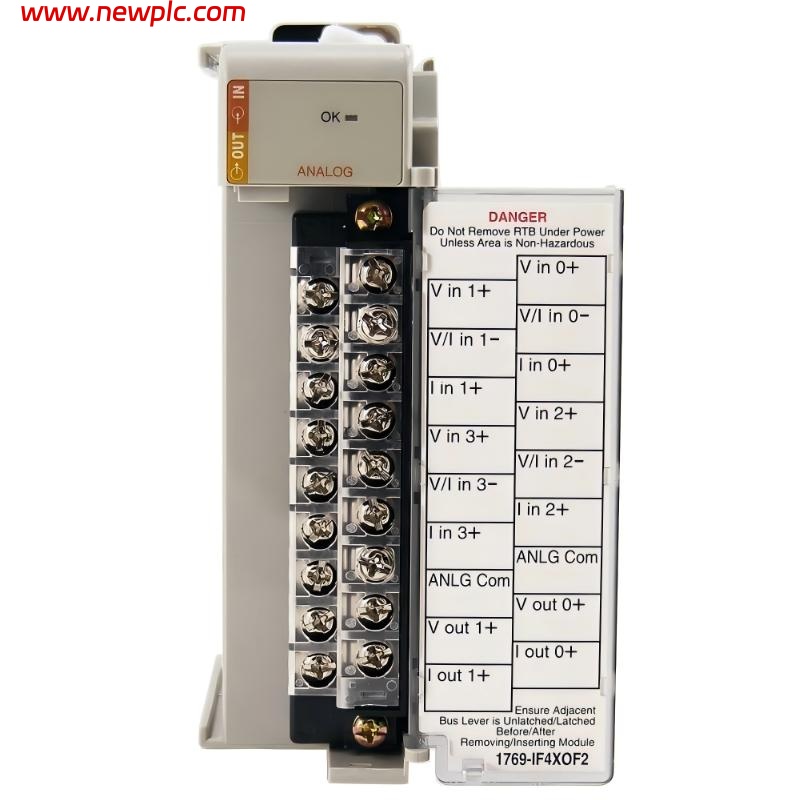

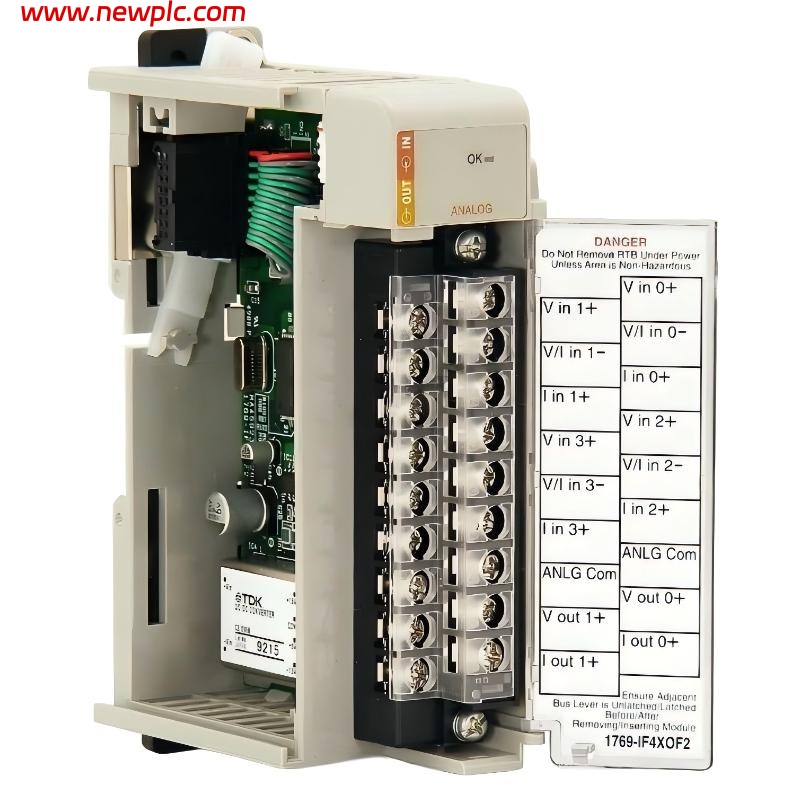

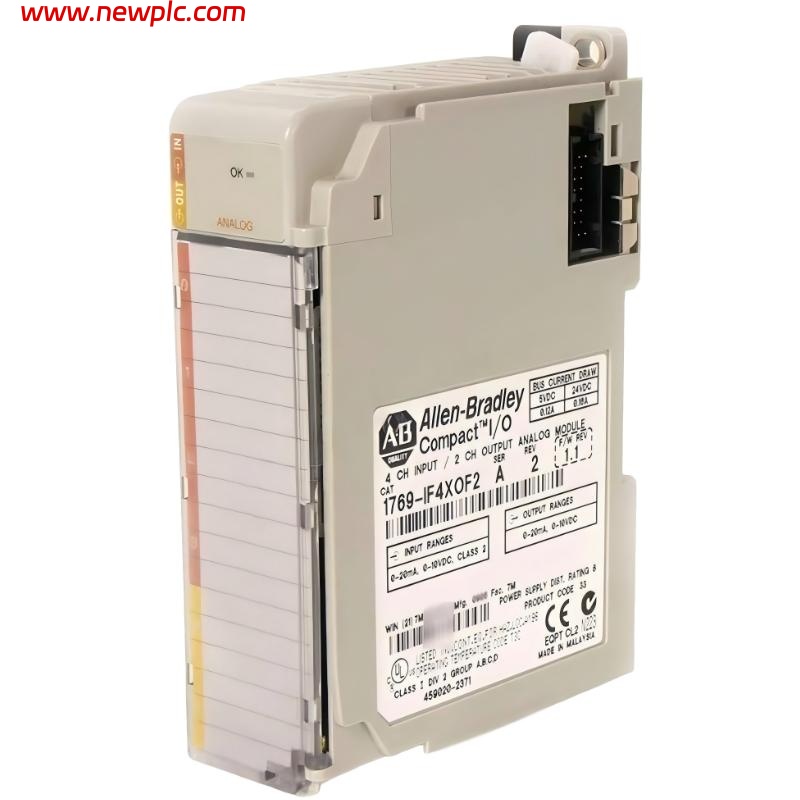

| Product | 1769-IF4XOF2 CompactLogix Analog Combination Module |
| Module Type | Combination analog input / analog output module |
| Input Channels | 4 differential analog input channels |
| Output Channels | 2 analog output channels |
| Input Signal Range | 0–20 mA, 4–20 mA, ±10 V (configurable per channel) |
| Output Signal Range | 0–20 mA, 4–20 mA, ±10 V (configurable per channel) |
| Resolution | 16-bit analog-to-digital / digital-to-analog conversion |
| Accuracy | Typically ±0.1% of full scale |
| Conversion Method | Successive approximation (inputs), DAC output conversion |
| Update Time | Inputs ~10 ms per channel / outputs ~5–10 ms |
| Backplane Current Draw | ~0.24 A @ 5 V DC |
| Power Consumption | ~1.2–1.5 W |
| Isolation Voltage | 30 V continuous functional isolation |
| Channel Type | Mixed analog input and output (non-isolated channels) |
| Configuration | Software configurable via Logix controller |
| Status Indicators | LED indicators for module, input, and output status |
| Wiring | Removable terminal block (RTB) |
| Mounting | 1769 Compact I/O slot (DIN rail / panel system) |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Shock (Operating) | 30 g |
| Vibration (Operating) | 5 g @ 10–500 Hz |
| Weight | ~0.3 kg |
| Dimensions (H × W × D) | 118 mm × 35 mm × 87 mm |
| Application | Compact analog I/O for process control and signal conditioning |
FAQ
FAQ
Q1. What is the 1769-IF4XOF2 used for?
It is used for combined analog signal acquisition and output control in CompactLogix systems.
Q2. How many input and output channels does it have?
It provides 4 analog input channels and 2 analog output channels.
Q3. What signal types does it support?
It supports voltage (±10 V) and current (0–20 mA, 4–20 mA) signals for both input and output.
Q4. Can input and output channels be configured independently?
Yes, each channel can be independently configured via software.
Q5. What is the resolution of the module?
It uses 16-bit resolution for both analog input and output conversion.
Q6. What is the typical update time?
Inputs update around 10 ms per channel, and outputs typically respond within 5–10 ms.
Q7. Does it require external power?
No, it is powered directly from the CompactLogix backplane.
Q8. What is its main application?
It is used in process control systems requiring both analog measurement and analog signal output control.
