Technical Specifications
| Parameter | Specification |
|---|---|

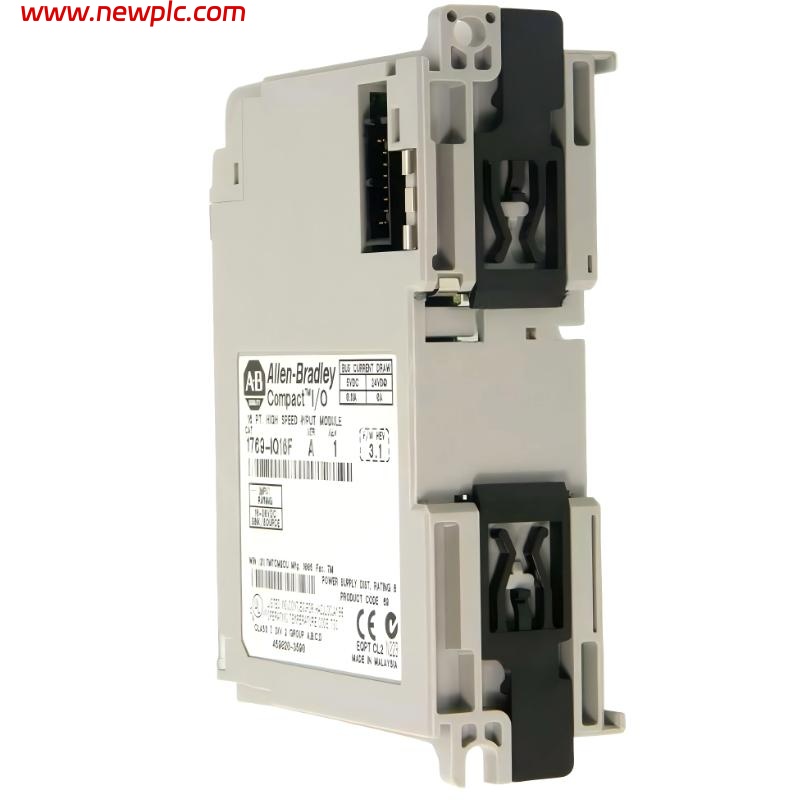

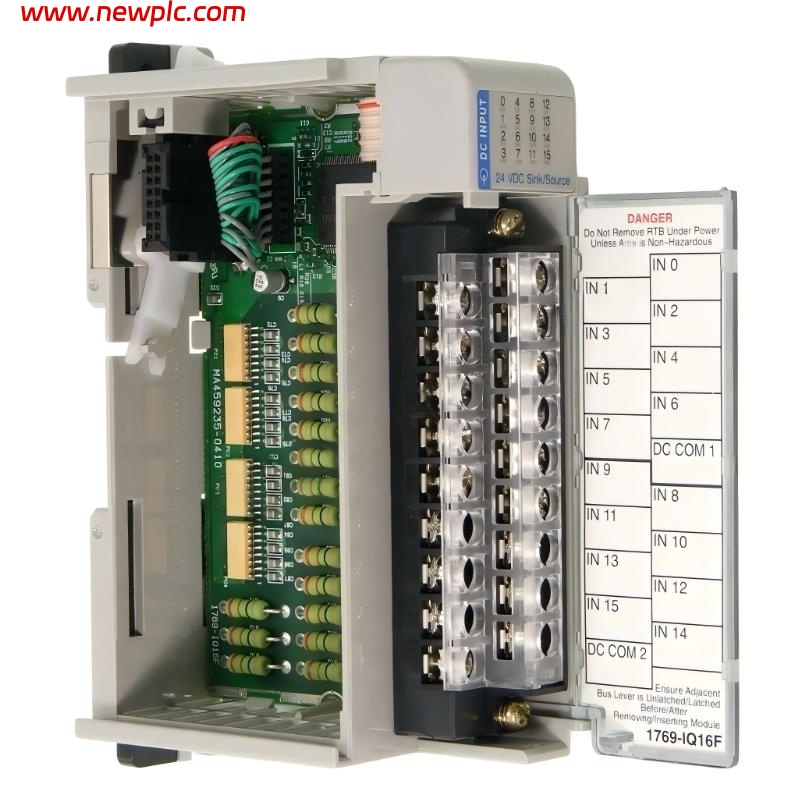

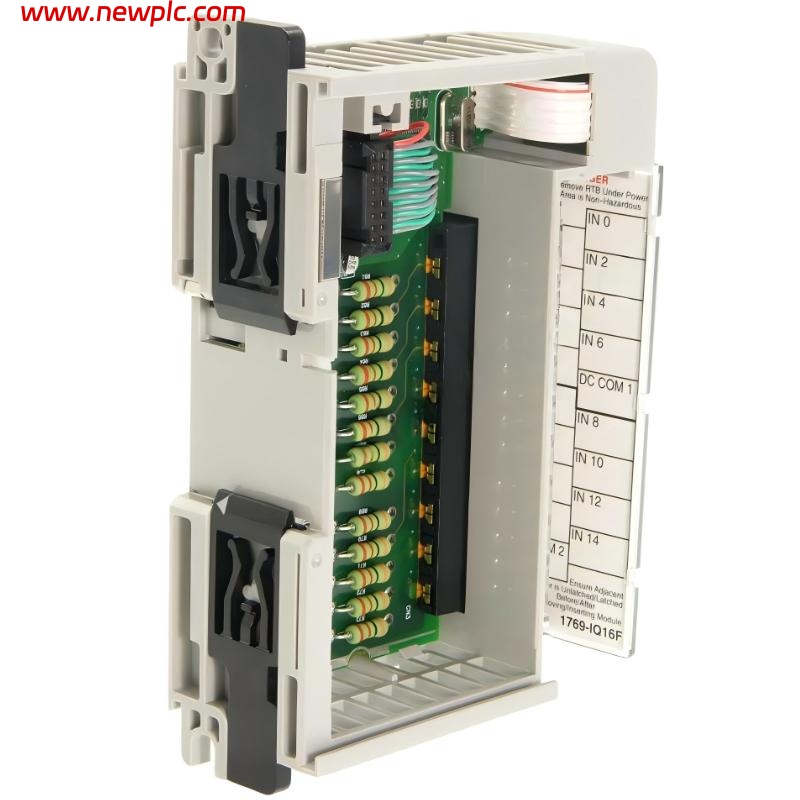

| Product | 1769-IQ16F CompactLogix Fast DC Input Module |
| Module Type | High-speed digital DC input module |
| Input Channels | 16 points |
| Input Voltage Range | 10–30 V DC (nominal 24 V DC) |
| On-State Voltage | ≥ 10 V DC |
| Off-State Voltage | ≤ 5 V DC |
| Input Current | ~5 mA per channel @ 24 V DC |
| Input Type | Sink/source compatible DC inputs |
| Response Time | ≤ 0.1 ms (fast input response) |
| Input Filtering | Configurable input filter settings |
| Backplane Current Draw | ~0.12 A @ 5 V DC |
| Power Consumption | ~0.6 W |
| Isolation Voltage | 30 V continuous functional isolation |
| Input Grouping | Grouped inputs (common return) |
| Status Indicators | LED indicators per channel |
| Wiring | Removable terminal block (RTB) |
| Mounting | 1769 Compact I/O slot (DIN rail / panel system) |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % non-condensing |
| Shock (Operating) | 30 g |
| Vibration (Operating) | 5 g @ 10–500 Hz |
| Weight | ~0.3 kg |
| Dimensions (H × W × D) | 118 mm × 35 mm × 87 mm |
| Application | High-speed signal detection for counters, encoders, and fast sensors |
FAQ
FAQ
Q1. What is the 1769-IQ16F used for?
It is used for high-speed detection of DC input signals in applications requiring fast response times.
Q2. How many input channels does it have?
It provides 16 digital DC input channels.
Q3. What makes this module different from standard IQ16?
It offers significantly faster response time (≤ 0.1 ms) suitable for high-speed applications.
Q4. What voltage range does it support?
It supports 10–30 V DC input signals.
Q5. Does it support input filtering?
Yes, input filtering can be configured through software.
Q6. What type of devices is it used with?
It is ideal for encoders, high-speed sensors, and pulse input devices.
Q7. Does it require external power?
No, it is powered via the CompactLogix backplane.
Q8. What are its dimensions and weight?
It measures approximately 118 mm × 35 mm × 87 mm and weighs about 0.3 kg.
