Technical Specifications
| Parameter | Specification |
|---|---|

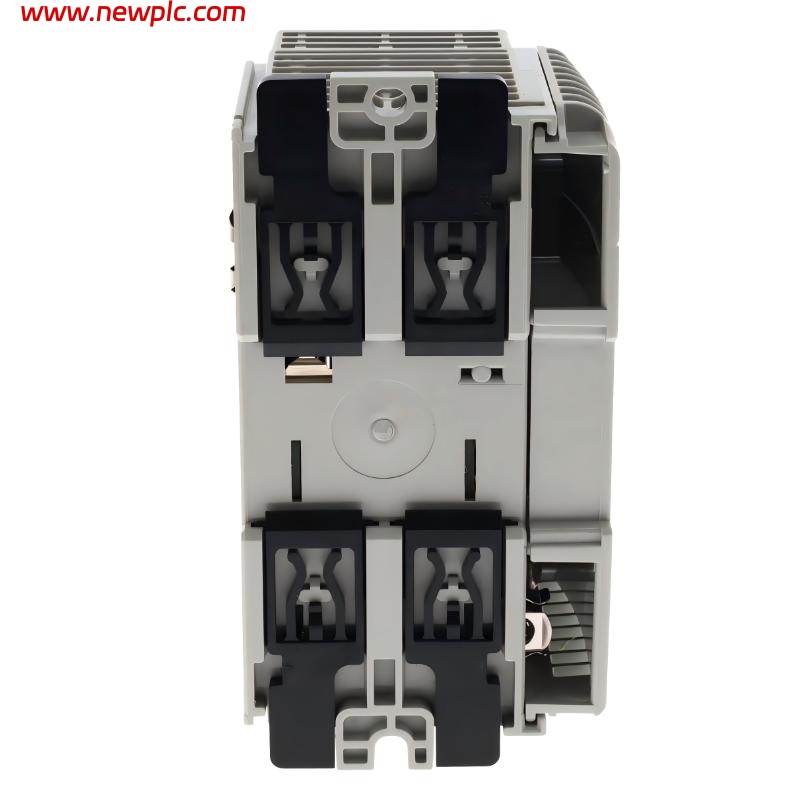

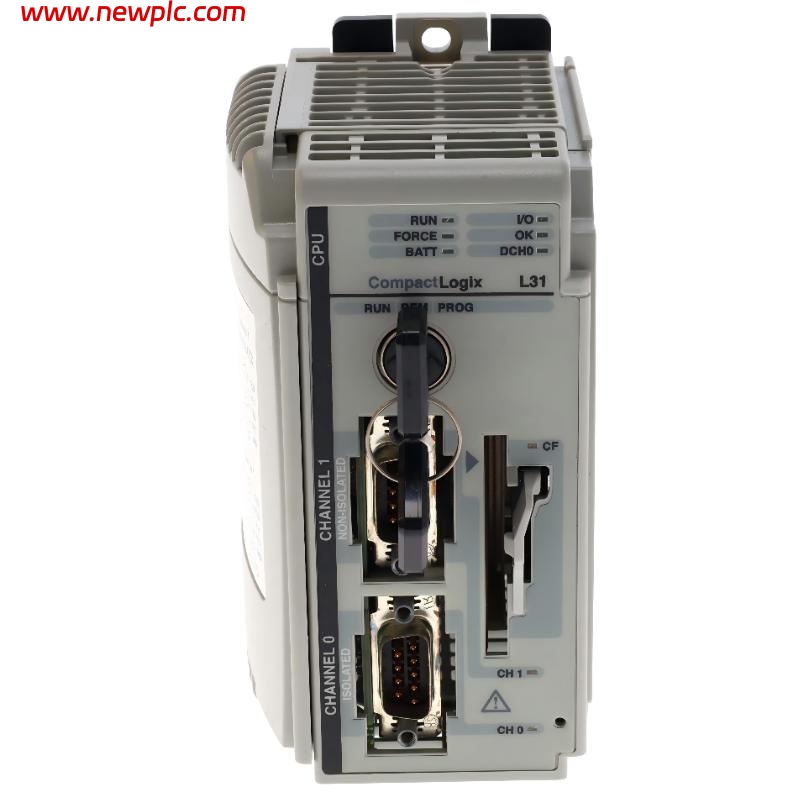

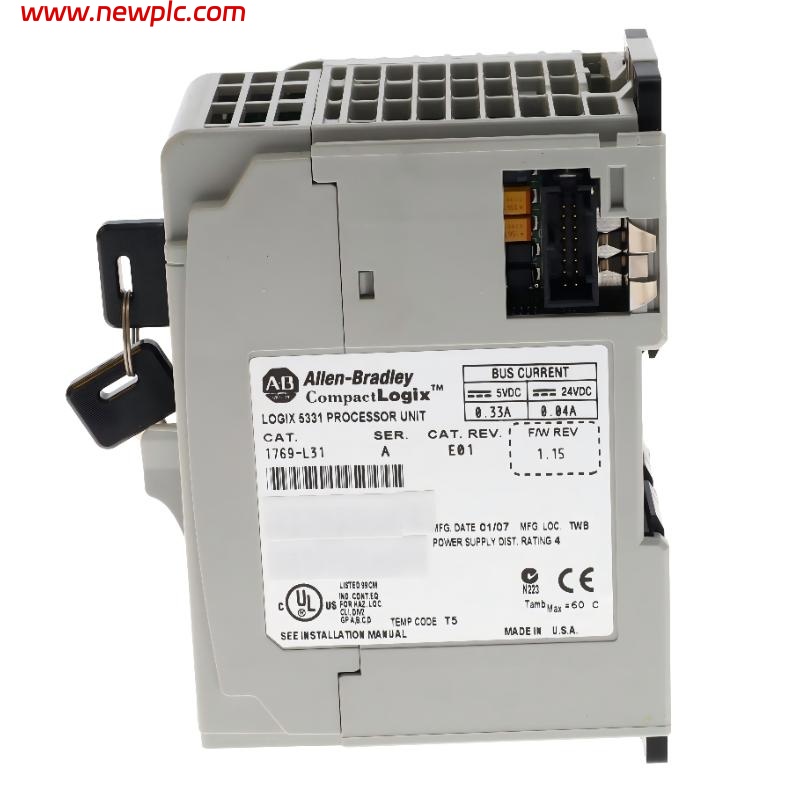

| Product Name | Allen-Bradley CompactLogix 5370 L3 Controller |
| Model Number | 1769-L31 |
| Controller Type | Programmable automation controller (CompactLogix) |
| Processor Type | Logix-based control engine |
| User Memory | Approx. 2 MB |
| Communication Ports | 1 × Ethernet/IP port |
| Integrated I/O | None (requires external 1769 I/O modules) |
| Expansion Capability | 1769 Compact I/O module support |
| Programming Software | Studio 5000 Logix Designer |
| Power Supply Voltage | 24V DC |
| Mounting Type | DIN rail mounting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 118 × 87 × 138 mm (approx.) |
| Weight | 0.60 kg (approx.) |
| Enclosure Type | Open-style industrial controller module |
FAQ
FAQ
Q1. What is the Allen-Bradley 1769-L31 used for?
It is used for mid-level industrial automation applications requiring reliable control and scalability.
Q2. Does the 1769-L31 have built-in I/O?
No, it requires external 1769 Compact I/O modules for all input and output functions.
Q3. How many Ethernet ports are available?
It has one built-in Ethernet/IP communication port.
Q4. What programming software is required?
It is programmed using Studio 5000 Logix Designer.
Q5. What is the memory capacity of this controller?
It provides approximately 2 MB of user memory for control programs.
Q6. Can the controller be expanded?
Yes, it supports a range of 1769 Compact I/O expansion modules.
Q7. What power supply does it use?
It operates on a 24V DC industrial power supply.
Q8. What are typical applications for this model?
It is commonly used in material handling, packaging systems, and general machine automation.
