Technical Specifications
| Parameter | Specification |
|---|---|

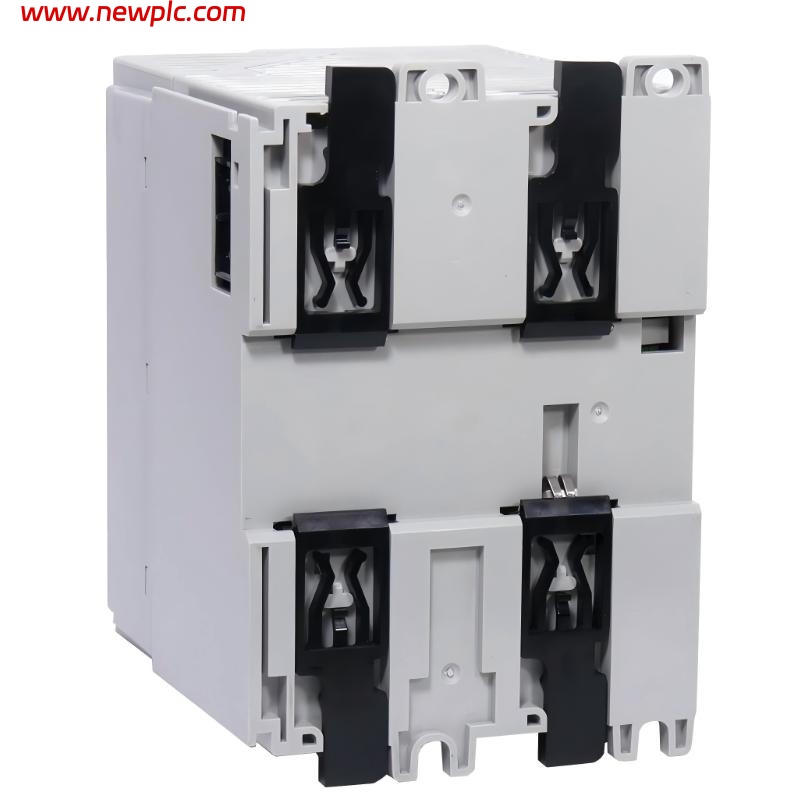

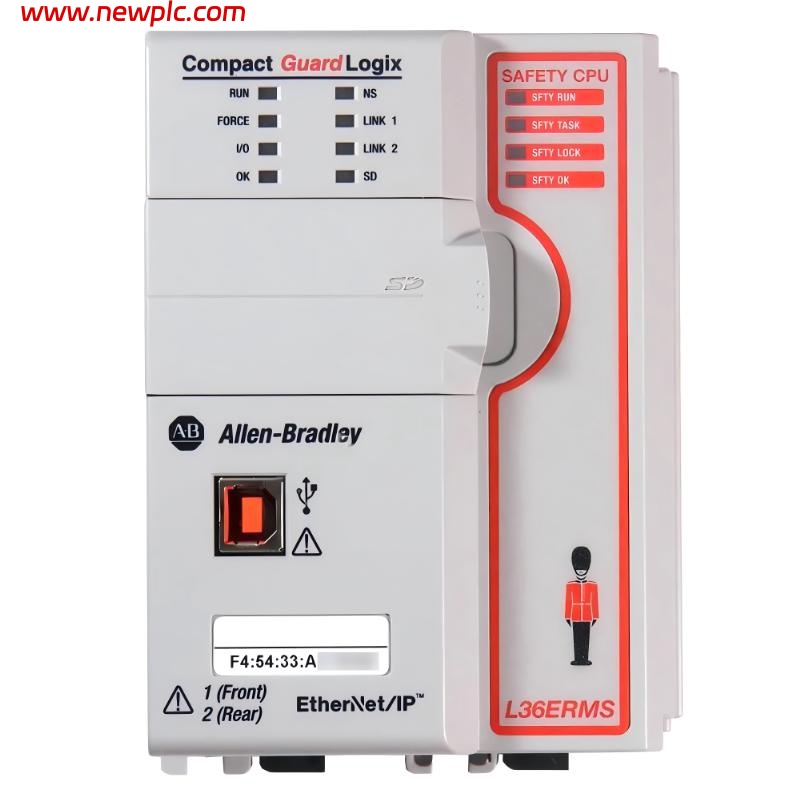

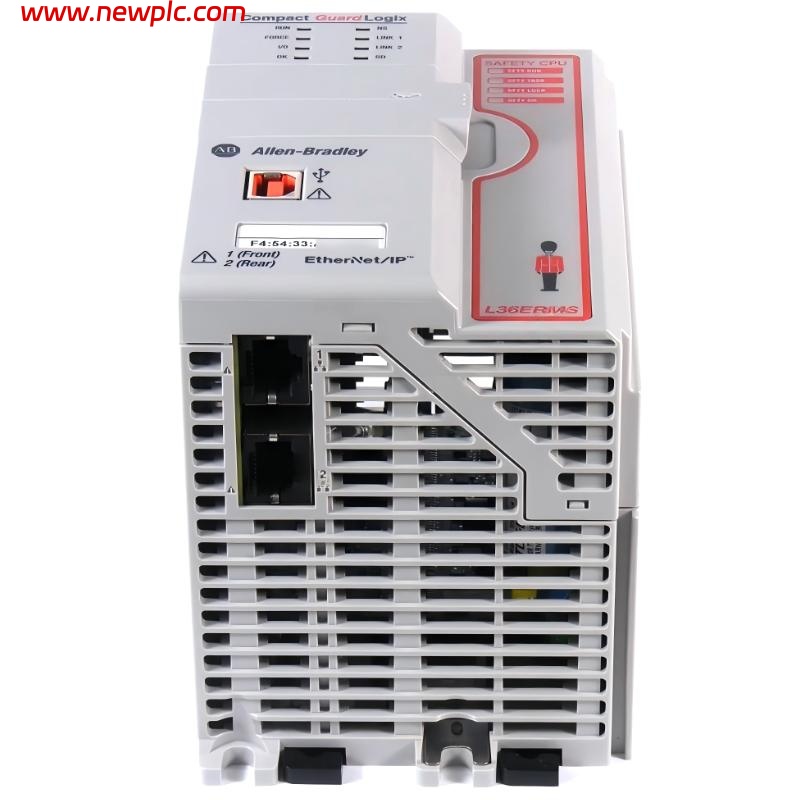

| Product Name | Allen-Bradley Compact GuardLogix 5370 L3 Controller |
| Model Number | 1769-L36ERMS |
| Controller Type | Safety-rated programmable automation controller (GuardLogix) |
| Processor Type | Logix-based control engine |
| Standard User Memory | 3 MB |
| Safety Memory | 1.5 MB |
| Communication Ports | 2 × Ethernet/IP ports (DLR support), 1 × USB port |
| Integrated I/O | None (requires external 1769 Compact I/O modules) |
| Safety Capability | SIL 3 / PLe safety-rated control |
| Motion Capability | Supports up to 16-axis integrated motion over EtherNet/IP |
| Network Capability | EtherNet/IP with Device Level Ring (DLR) redundancy |
| Expansion Capability | 1769 Compact I/O module support |
| Programming Software | Studio 5000 Logix Designer |
| Power Supply Voltage | 24V DC |
| Mounting Type | DIN rail mounting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 118 × 87 × 138 mm (approx.) |
| Weight | 0.57 kg (approx.) |
| Enclosure Type | Open-style industrial controller module |
FAQ
FAQ
Q1. What is the 1769-L36ERMS used for?
It is used in advanced industrial automation systems that require both standard control and integrated safety functions.
Q2. Does this controller support safety functions?
Yes, it is a GuardLogix controller certified for SIL 3 / PLe safety applications.
Q3. How many Ethernet ports does it have?
It includes two Ethernet/IP ports with Device Level Ring (DLR) support for network redundancy.
Q4. Does it support motion control?
Yes, it supports up to 16-axis integrated motion over EtherNet/IP.
Q5. What software is required for programming?
It is programmed using Studio 5000 Logix Designer.
Q6. Does it have built-in I/O?
No, it requires external 1769 Compact I/O modules for all I/O functions.
Q7. What is the memory capacity?
It provides 3 MB standard memory plus 1.5 MB safety memory.
Q8. What applications typically use this controller?
It is commonly used in robotics, safety-critical machinery, packaging systems, and coordinated motion manufacturing lines.
