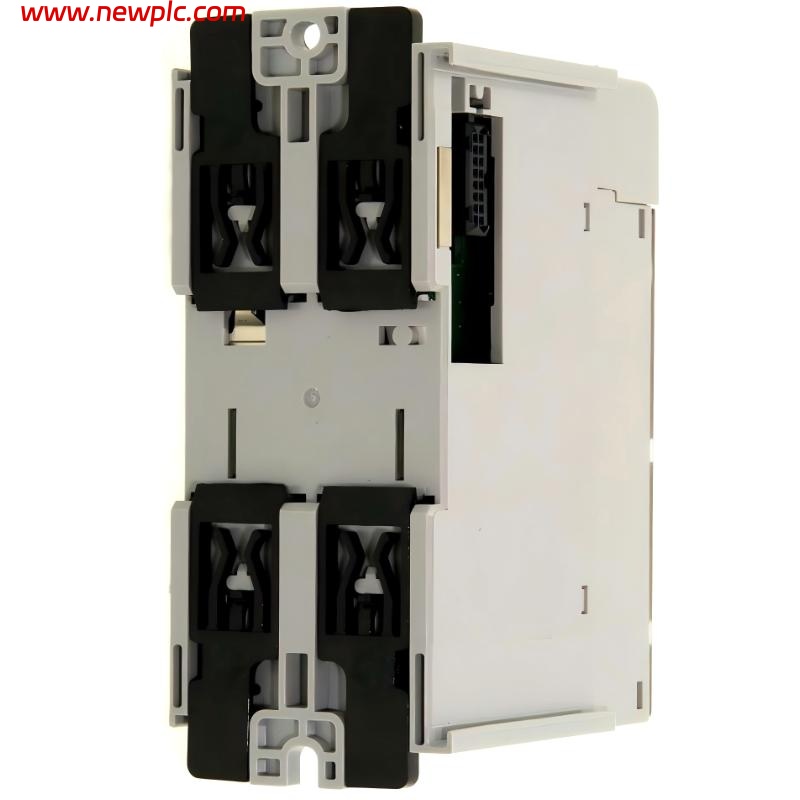

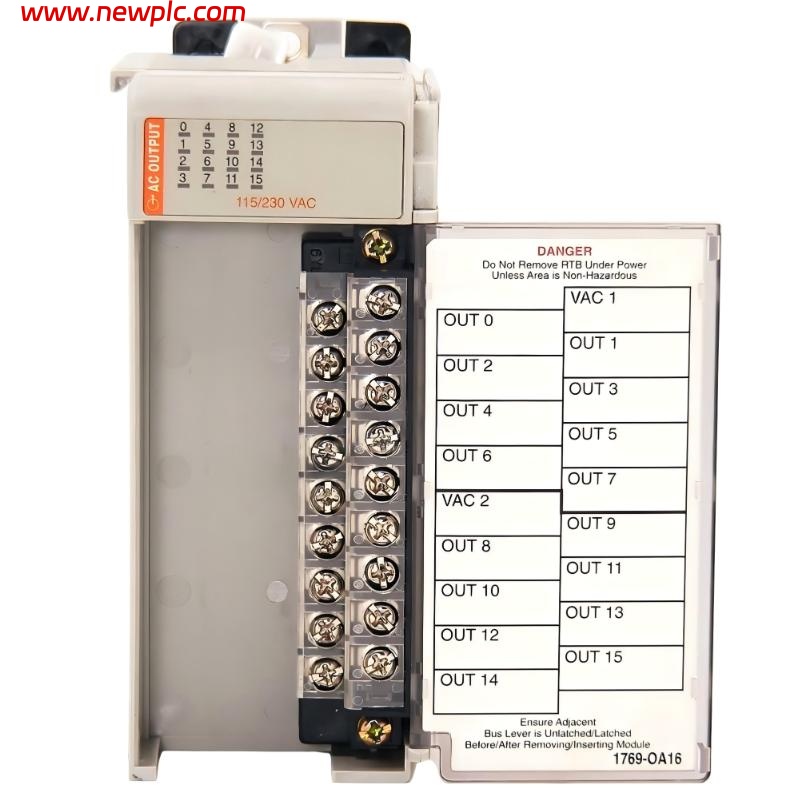

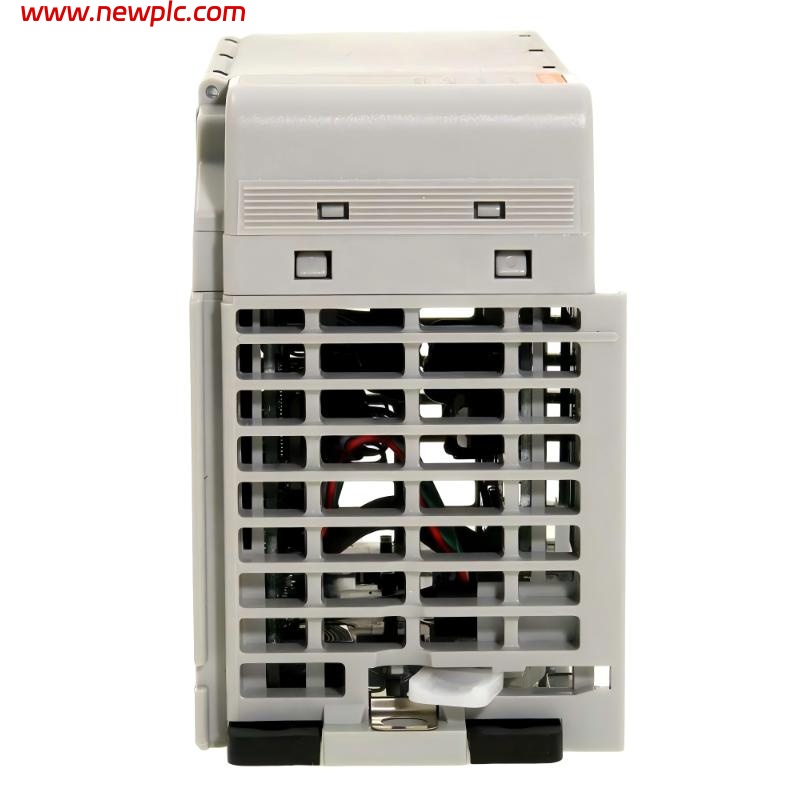

Allen Bradley 1769-OA16 Digital AC output module

FAQ

Q1. What is the 1769-OA16 used for?
It is used to switch AC loads such as relays, solenoids, and indicator lights in CompactLogix systems.

Q2. What type of output does it use?
It uses solid-state triac outputs designed for AC switching applications.

Q3. How many outputs does it have?
It provides 16 digital AC output channels arranged in two isolated groups.

Q4. What voltage range does it support?
It supports a wide range of 85–265 VAC, suitable for both 120V and 240V systems.

Q5. Can outputs handle inductive loads directly?
Yes, but external protection (like snubbers) is often recommended for inductive loads to reduce wear.

Q6. Is the module isolated?
Yes, it provides optical and group-to-group isolation for electrical protection.

Q7. What is the mounting method?
It can be mounted on a DIN rail or directly on a panel.

Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix 1500 controllers.

1769-OA16 Allen Bradley
