Technical Specifications
| Parameter | Specification |
|---|---|

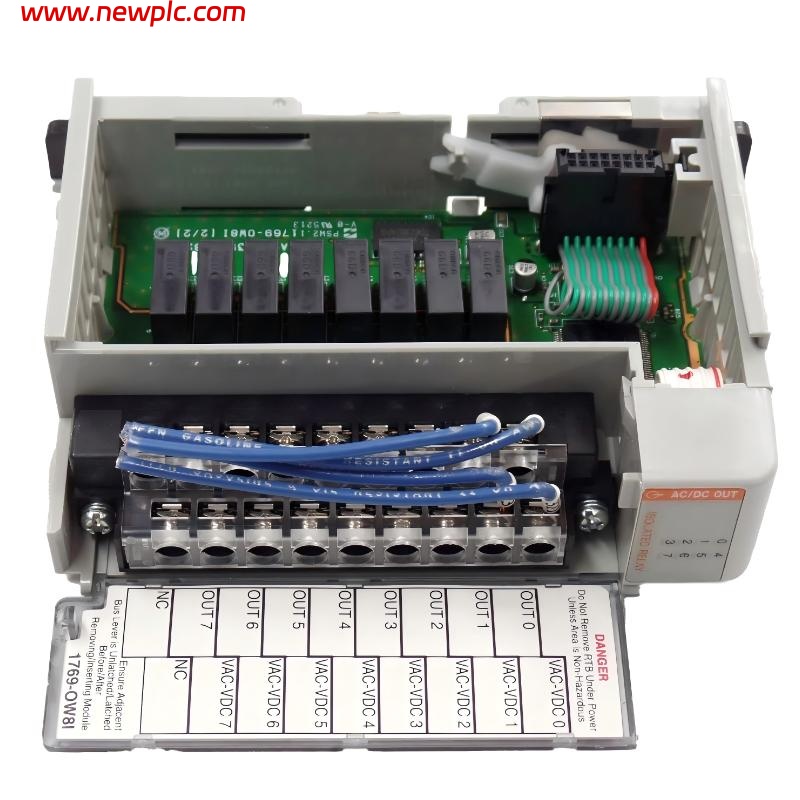

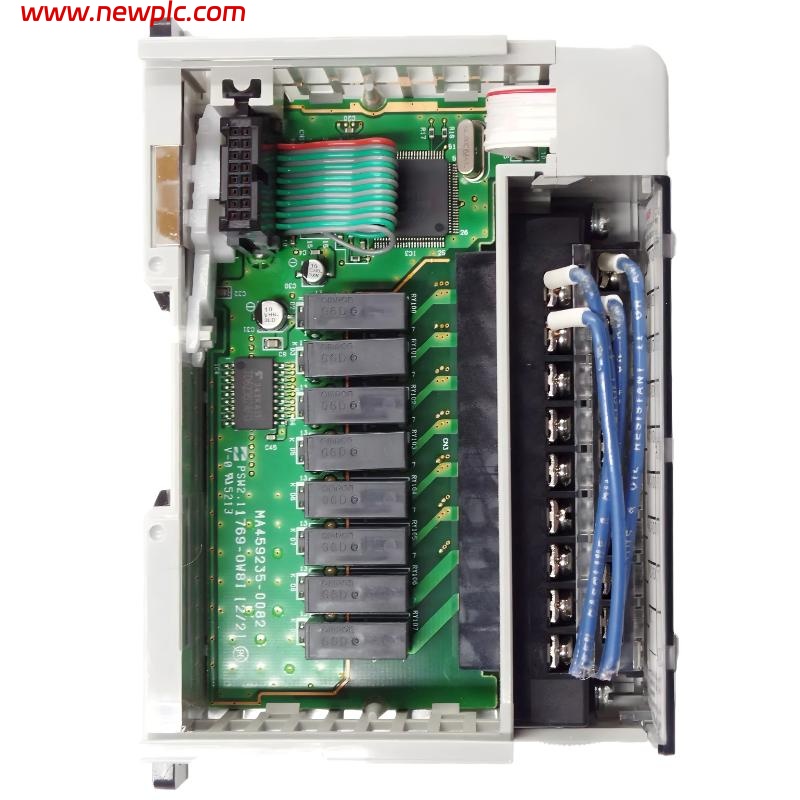

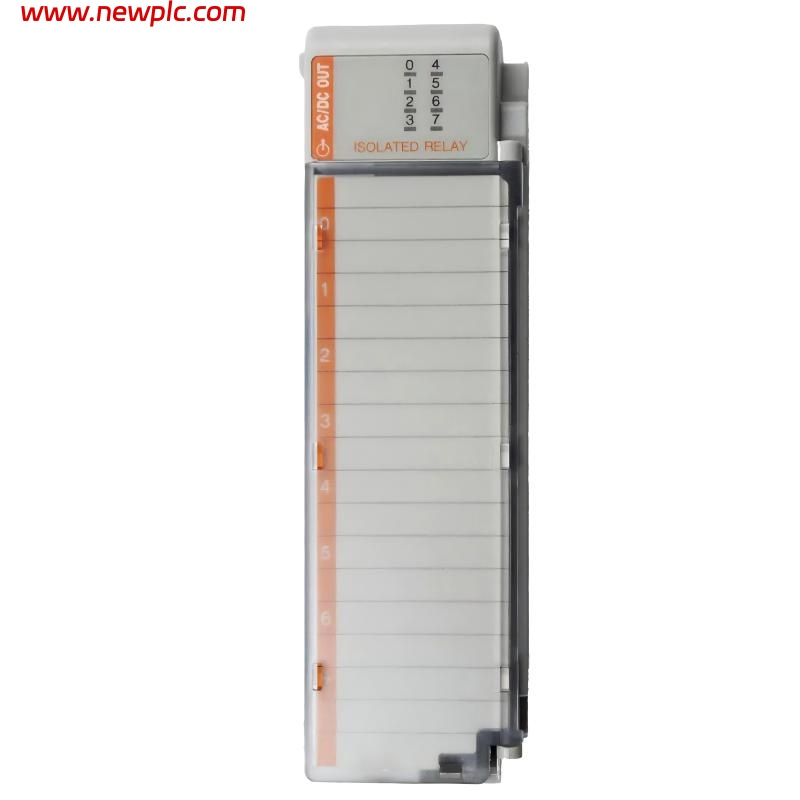

| Product Name | Allen-Bradley CompactLogix Relay Output Module |
| Model Number | 1769-OW8I |
| Module Type | Digital relay output module (individually isolated) |
| Output Channels | 8 outputs (2 groups of 4 points) |
| Output Type | Form A relay contacts (normally open) |
| Output Voltage Range | 5–265 VAC, 5–125 VDC |
| Contact Configuration | Individually isolated relay outputs |
| Max Load Current | Up to 2.5 A @ 240 VAC / 2.0 A @ 24 VDC |
| Output Delay Time | Approx. 10 ms ON / OFF |
| Isolation Voltage | 1836 VAC for 1 s or 2596 VDC |
| Backplane Current | Approx. 125 mA @ 5.1 VDC |
| Power Dissipation | Approx. 2.8 W |
| Mounting Type | DIN rail or panel mount |
| Slot Width | 1 slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 118 × 35 × 87 mm |
| Weight | Approx. 0.29 kg |
| Compatibility | CompactLogix / MicroLogix 1500 systems |
FAQ
FAQ
Q1. What is the 1769-OW8I used for?
It is used to switch both AC and DC loads such as relays, contactors, and solenoids in industrial control systems.
Q2. What type of outputs does it provide?
It provides 8 individually isolated relay outputs with Form A (normally open) contacts.
Q3. Can it handle both AC and DC loads?
Yes, it supports a wide range of AC and DC switching applications up to 265 VAC and 125 VDC.
Q4. What is the switching speed?
Typical ON/OFF response time is around 10 ms.
Q5. Are outputs individually isolated?
Yes, each output is individually isolated for flexible wiring and improved safety.
Q6. What is the maximum load per channel?
Up to 2.5 A for AC loads and 2.0 A for DC loads.
Q7. Does it require external protection devices?
It is robust, but external suppression is recommended for inductive loads.
Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix and MicroLogix 1500 platforms.
